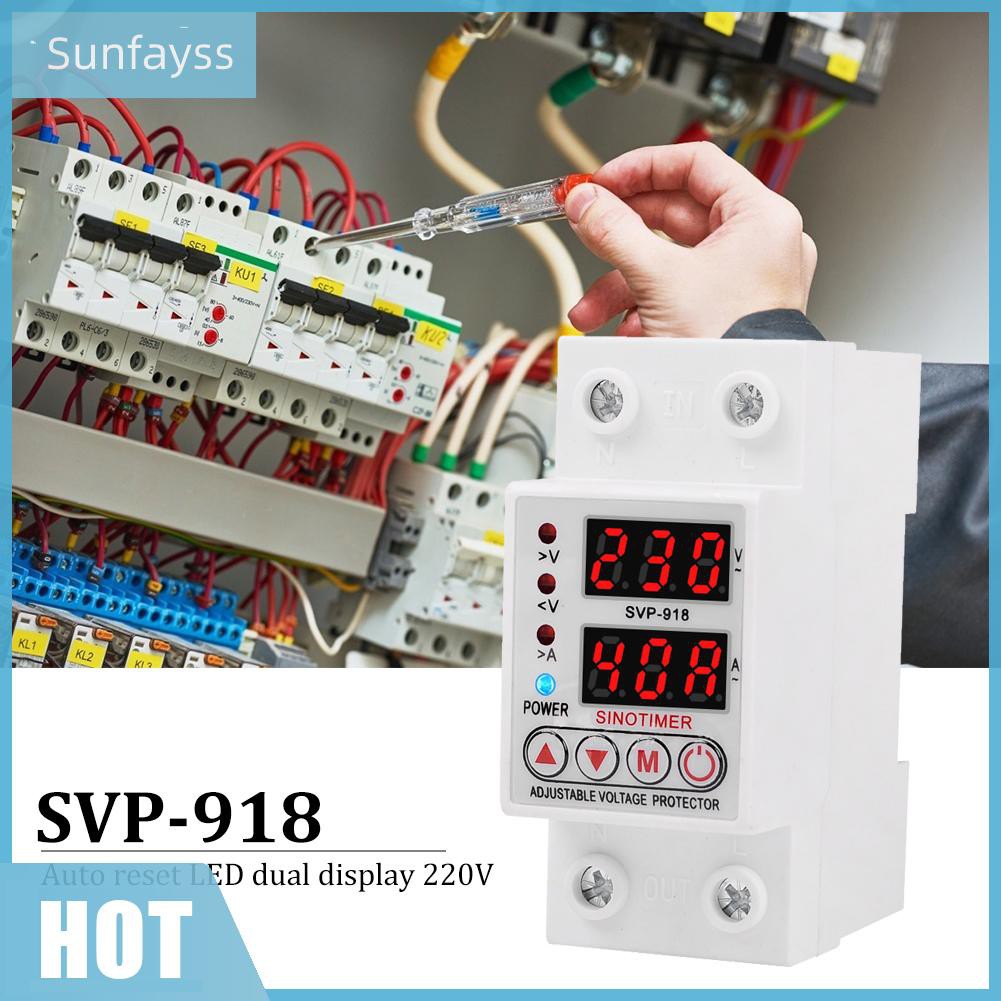

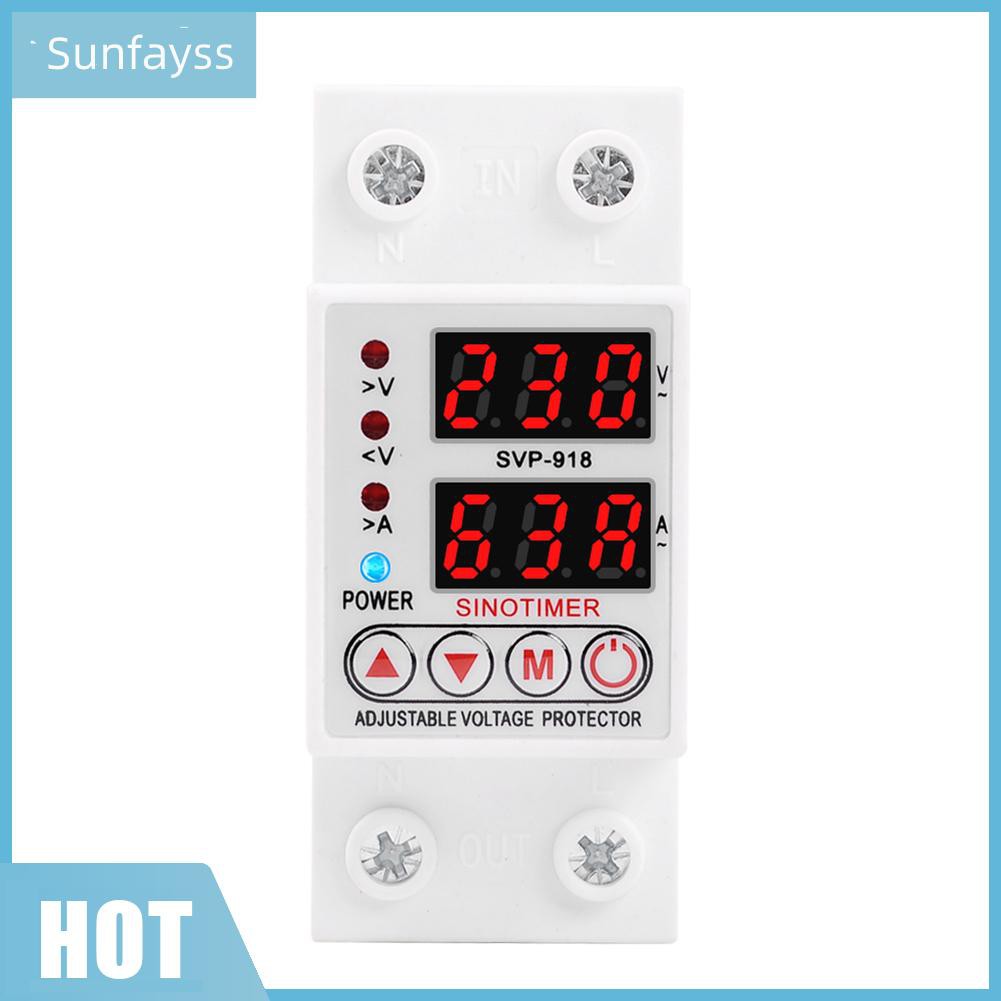

SF Mạch Bảo Vệ Tự Điều Chỉnh Điện Áp 220v Svp-918

Giới thiệu SF Mạch Bảo Vệ Tự Điều Chỉnh Điện Áp 220v Svp-918

❆❆ Features:
New SVP-918 automatic adjustable over-voltage protection limit current protector with manual key single-phase 230V.

Functions:
1. Over voltage protection
2. Undervoltage protection
3. Over current protection
4. Automatic recovery
5. Adjustable recovery delay time
6. Voltage display (voltage measurement)
7. Current display (current measurement)

Specifications:
1. Model: SVP-918
2. Power supply: 230VAC 50 / 60Hz
3. Maximum load power:
1-40A adjustable (default: 40A)
1 ~ 63A adjustable (default: 63A)
4. Overvoltage protection value range: 230V-300-off (default: 280V)
5. Under voltage protection value range: 210V ~ 140V ~ off (default: 160V)
6. Over current regulation range:
1-40A (default: 40A)
1 ~ 63A (default: 63A)
Overcurrent recovery current value: 1A less than the overcurrent protection value
7. Recovery delay time: 1s ~ 300s (default: 30s)
8. Motor life: > 50000 times
9. Installation: 35mm DIN rail
10.Material: abs + electronic components
11.Size: 8.5x6.5x3.7cm

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.


Included:

1 X Circuit Protector

Hình ảnh sản phẩm
