yal TFT Display Module 0.96 1.3 1.44 1.8 inch IPS SPI HD 65K ST7735/ST7789 Drive IC

Giới thiệu yal TFT Display Module 0.96 1.3 1.44 1.8 inch IPS SPI HD 65K ST7735/ST7789 Drive IC

100% brand new and high quality
Features:
The TFT liquid display is provided with a semiconductor switch for each pixel, and each pixel can be directly controlled by a point pulse, so each mode is relatively independent and can be continuously controlled, which not only improves the reaction speed of the display screen, but also can accurately control.
Display color gradation, so TFT LCD color is more realistic, high brightness and contrast, strong layering and bright color.
And it needs no backlight, and has wide vision, great for daily use.
It is widely used in MP3, MP4 player, small size game machine, toy, cipher, small size mobile phone, smart bracelet and so on.

Specification:
Material: TFT

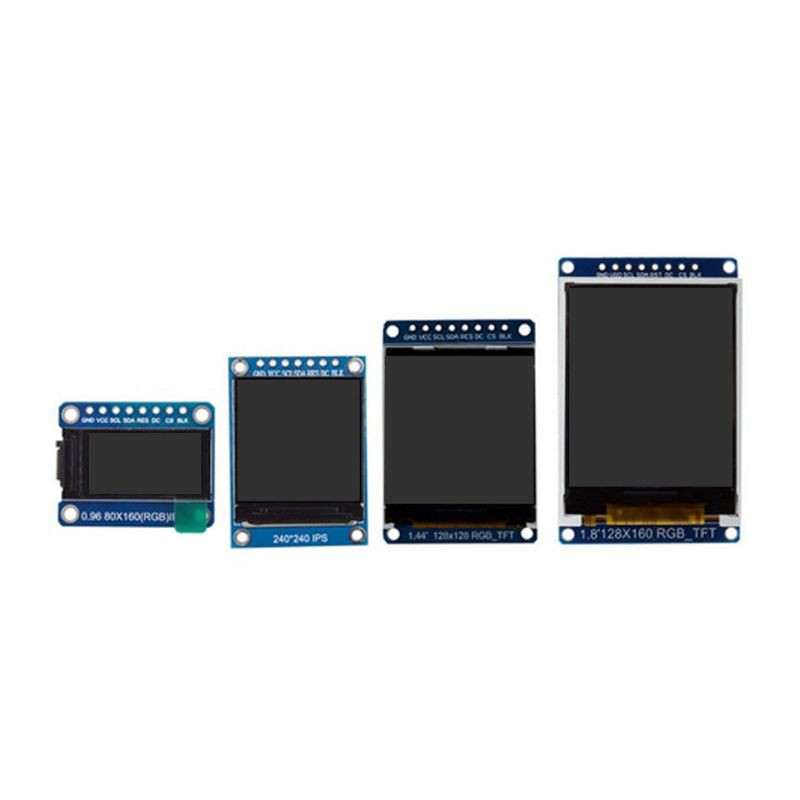

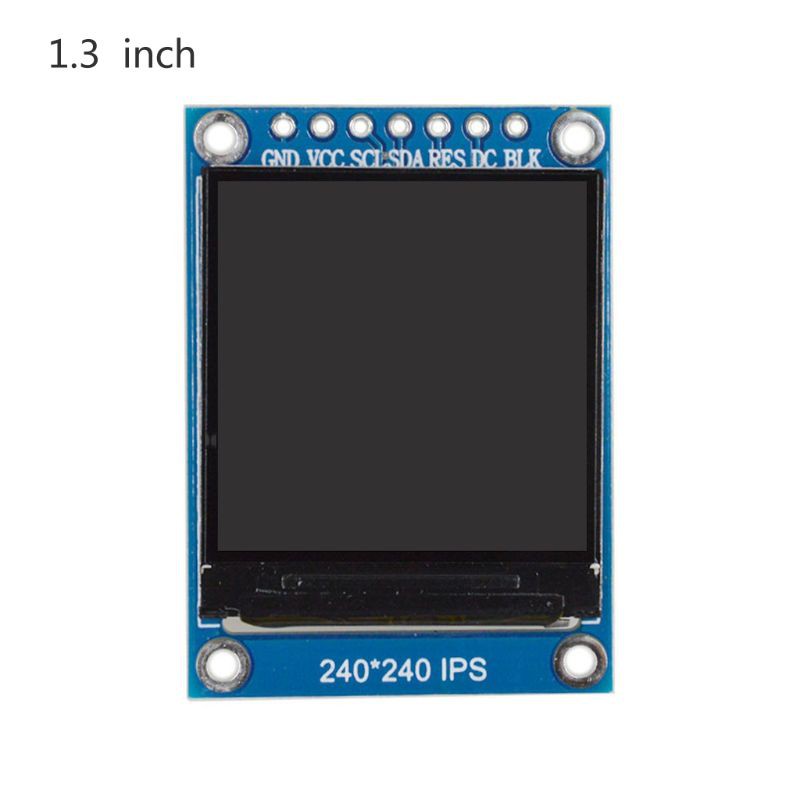

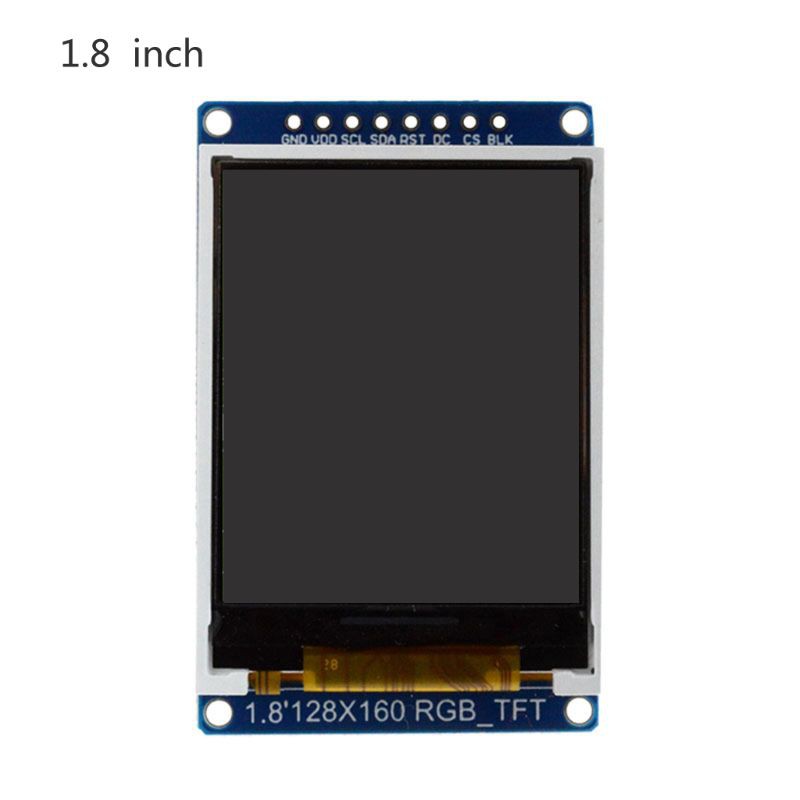

Optional types and size: No.1: 0.96in; No.2: 1.3in; No.3: 1.44in; No.4: 1.8in
Color: As picture shown
Quantity: 1 Pc

Product Parameters:
No.1: 0.96in No.2: 1.3in No.3: 1.44in No.4: 1.8in
Dot Matrix: 80 x 160 240 x 240 128 x 128 128 x 160
Drive IC: ST7735 ST7789 ST7735 ST7735
Interface: 8Pin 7Pin 8Pin 8Pin
Display Area: 10.8 x 21.6mm 23.4 x 23.4mm 25.5 x 26.5mm 28 x 35mm

Interface Definition:
1. GND: Power ground
2. VCC: 3.3-5V
3. SCL: SPI clock pin.
4. SDA: SPI data input
5. RES: Restart the interface
6. DC: SPI data/command selection
7. CS: Chip select interface (1.3 inch is not available)

Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

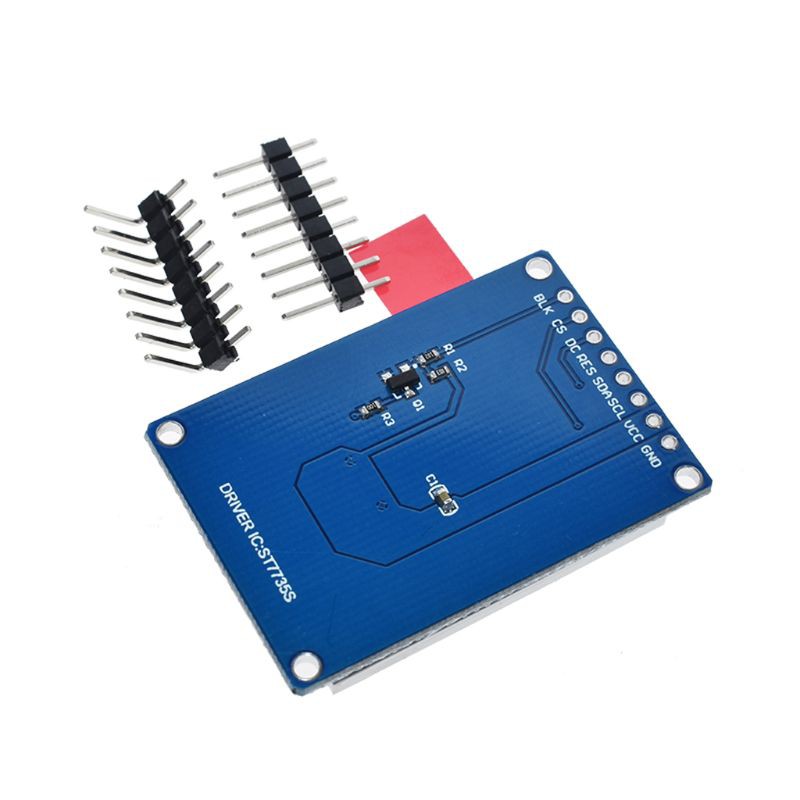

Package includes:
1 x TFT Display Module
2 x Pin Header
1 x Transparent Case
