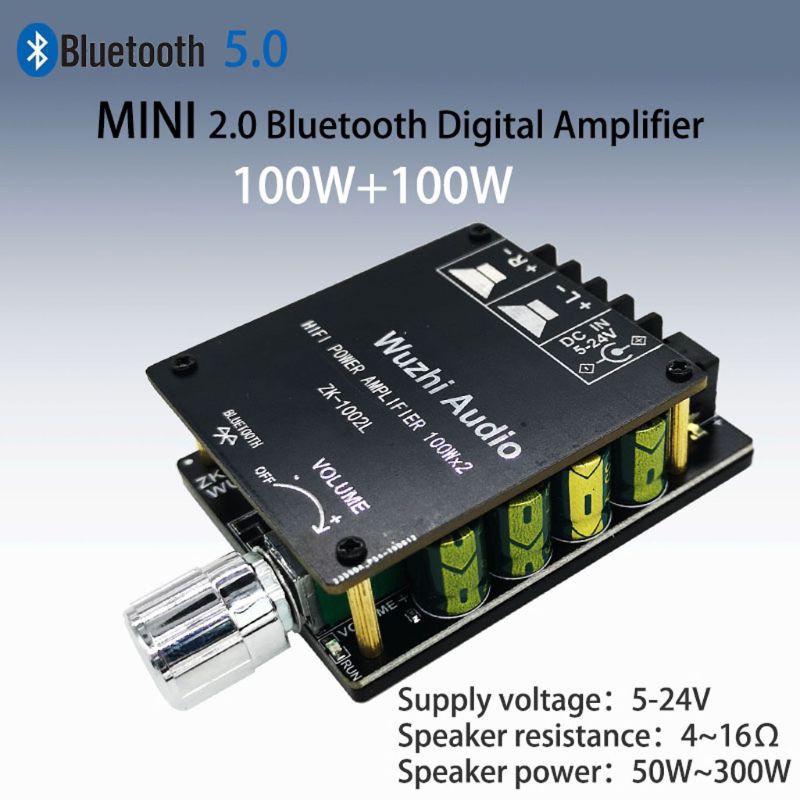

yal Mini ZK-1002L 5.0 Bluetooth Digital Amplifier Board Dual 100W Audio Power Amp

Giới thiệu yal Mini ZK-1002L 5.0 Bluetooth Digital Amplifier Board Dual 100W Audio Power Amp

100% brand new and high quality
Features:
5.0 Bluetooth version has higher transmission efficiency, and longer transmission distance.
Large size black gold heat sink ensures efficient heat dissipation.
With a switch, potentiometer can be used to adjust the volume,, easy to control the volume, very suitable for DIY speakers.

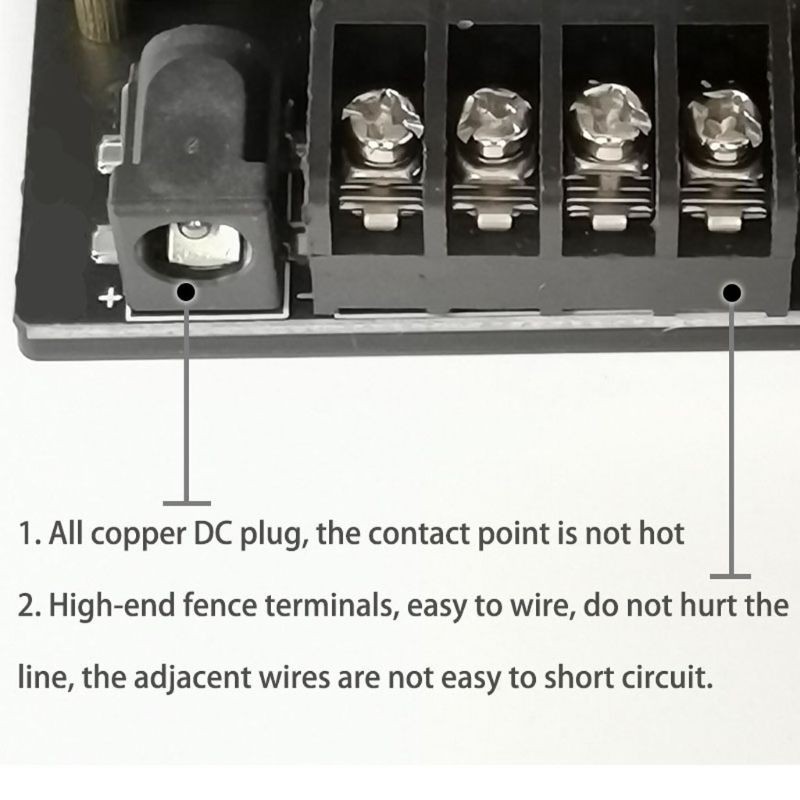

Copper DC connector is adopted to withstand high current and no heat.
4 x 470uF green gold capacitor guarantees the power storage capacity, and the continuous and stable power supply is the premise of good sound quality.
It comes with a DC head with cable, which is compatible with the input power interface of this product. Even if you don't have the DC head adapter or battery, you can connect it easily.

Specification:
Material: Fiber glass board + Electronic component
Size: app.69 x 53 x 22mm/2.72 x 2.09 x 0.87in
Color: As picture shown
Quantity: 1 Pc

Parameter:
Model: ZK-1002L
Bluetooth Version: 5.0
Chip Solution: Domestic
With or Without Filter: Yes
Adaption Supply Voltage: 5-24V (Optional 9V/12V/11/18V/24V adapter, high power recommended high voltage)
Adapter Speaker: 30W-200W, 4Ω-8Ω
Number of Channels: Left and right stereo (Stereo)
Bluetooth Transmission Distance: 15m(Without occlusion)
Protection Mechanism: Overheating, Short Circuit protection

Tip: To have enough output power if the audio input is sufficient and the supply voltage/current is sufficient. The power supply voltage is higher and the relative power will be larger. The speakers with different impedances will have different output power. In the case of sufficient voltage and current, the larger the ohms of the horn the smaller the relative sound power. Please pay attention!
Power Supply Voltage: 12V-8hom speaker/24W (Left channel) + 24W (Right channel), 4 ohm speaker/40W + 40W
15V-8homs /32W + 32W, 4 ohm/greater than 60W + 60W
19V-8homs /64W + 64W, 4 ohm/greater than 80W + 80W
24V-8homs /72W + 72W, 4 ohm/greater than 100W + 100W

Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Bluetooth Amplifier Board
