yal LCR-T4 Mega328 Transistor Tester Diode Capacitor ESR LCR Meter With Case MOS PNP

Giới thiệu yal LCR-T4 Mega328 Transistor Tester Diode Capacitor ESR LCR Meter With Case MOS PNP

Mega328 Transistor Tester Diode Capacitor ESR -T4 Diode Triode Capacitance MOS/PNP/NPN LCR 12864

100% brand new and high quality

Features:
1:Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components
2: Automatic test the pin of a component, and display on the LCD
3:Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage
4: Measure the gate and gate capacitance of the MOSFET threshold voltage
5:Use 12864 liquid crystal display with green backlight
Specifications: For you reference
1.One -button operation, automatic shutdown .
2.Only 20nA shutdown current.
3.Automatically detect NPN, PNP bipolar transistors , N -channel and P -channel MOS FET, JFET , diodes , two diodes, thyristors small power unidirectional and bidirectional thyristor.
4,Automatic identification components pin arrangement .
Notice: Before measuring capacitance , the capacitor must be discharged , otherwise very likely damage the meter .
Specification:
Color: As shown in figure

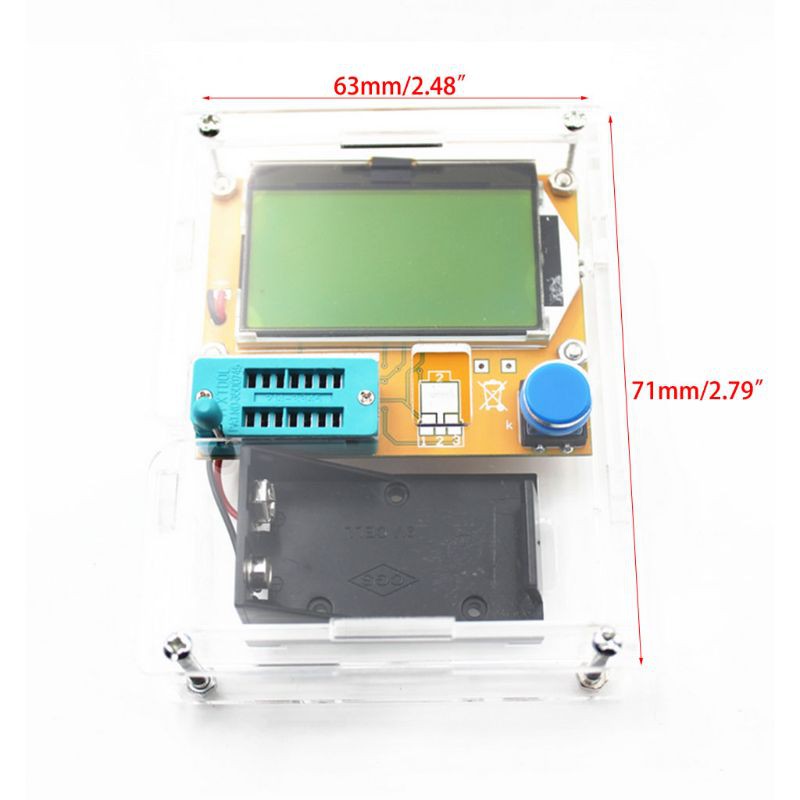

Size:105 x 87 x 28.6 mm / 4.1"x3.4"x1.1"
Test ranges:
Inductors, capacitors , diodes, dual diode , mos, transistor, SCR , the regulator, LED tube , ESR,
Resistance,Adjustable potentiometer
Resistance :0.1 ohm resolution, maximum 50M ohm
Capacitor :25pf -100,000 uf
Inductors : 0.01mh-20H

Note:1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.

Package includes:
1 pcs New Transistor Tester Diode Triode Capacitance ESR Meter MOS PNP NPN R/C/L M328(As the picture
Note:The battery is not included.

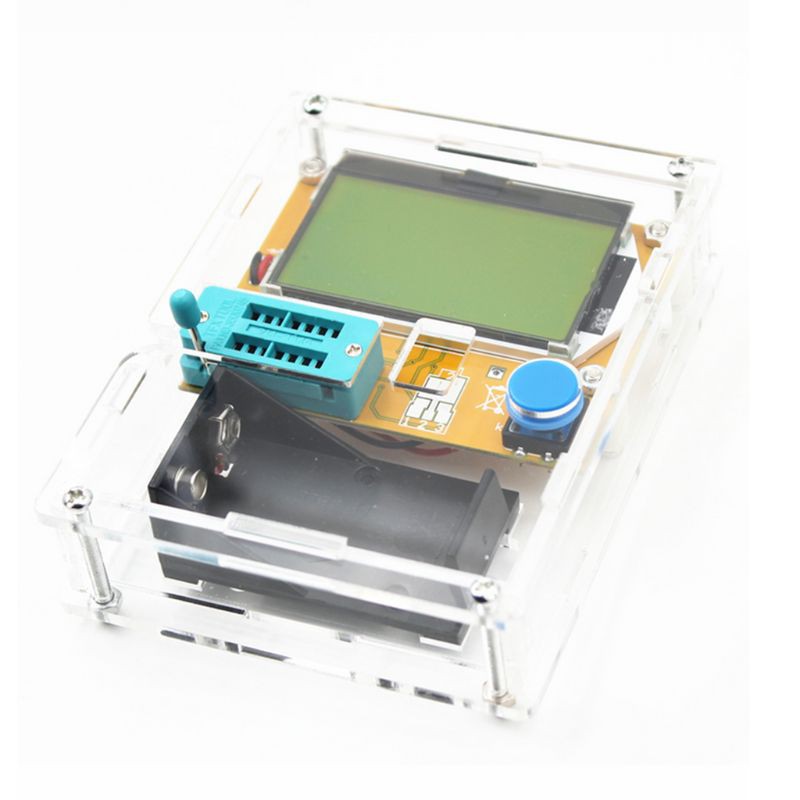

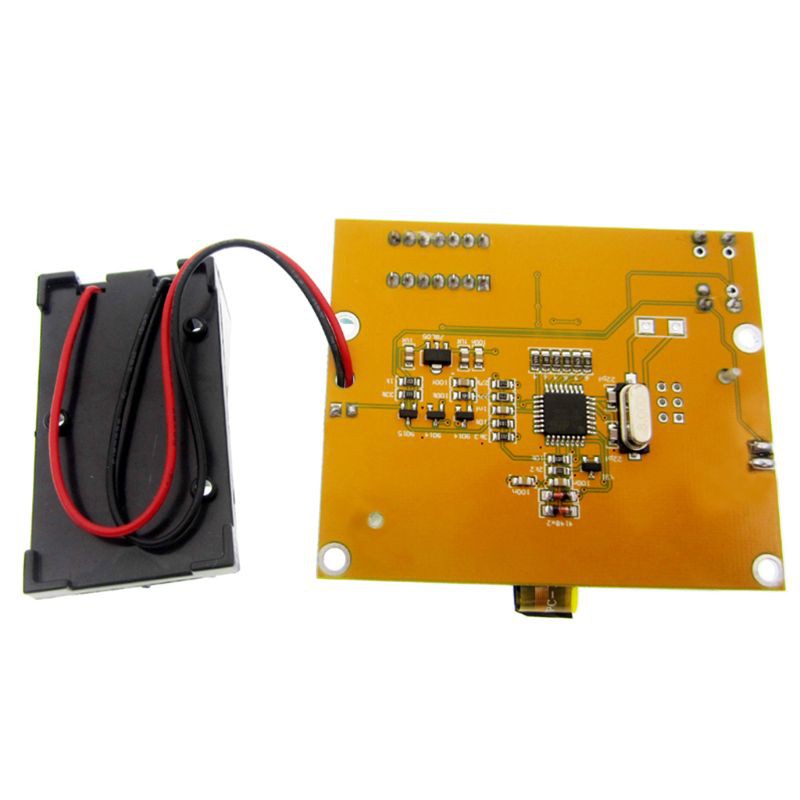

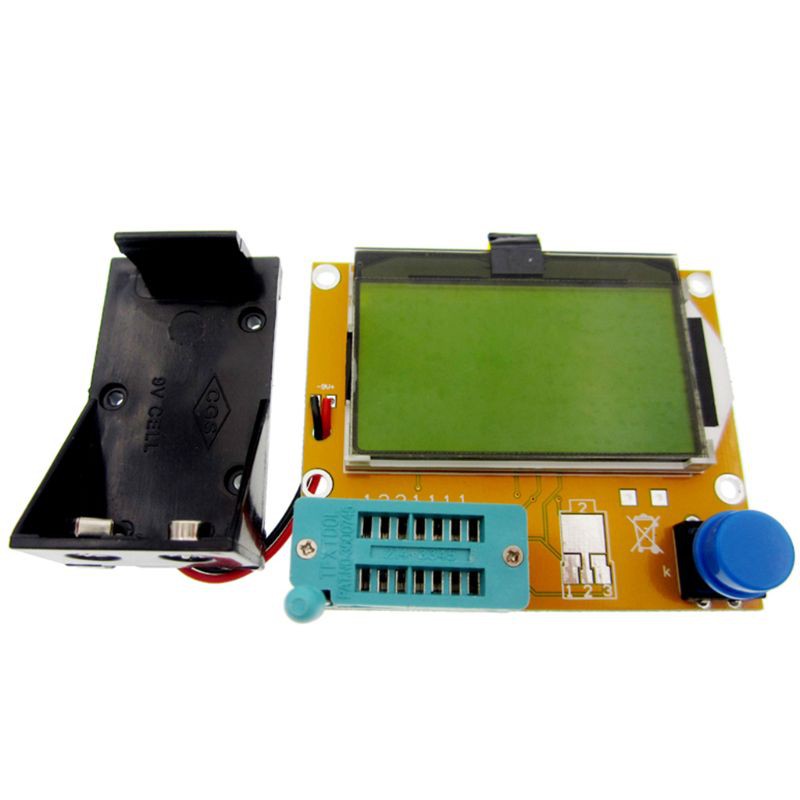

Hình ảnh sản phẩm
