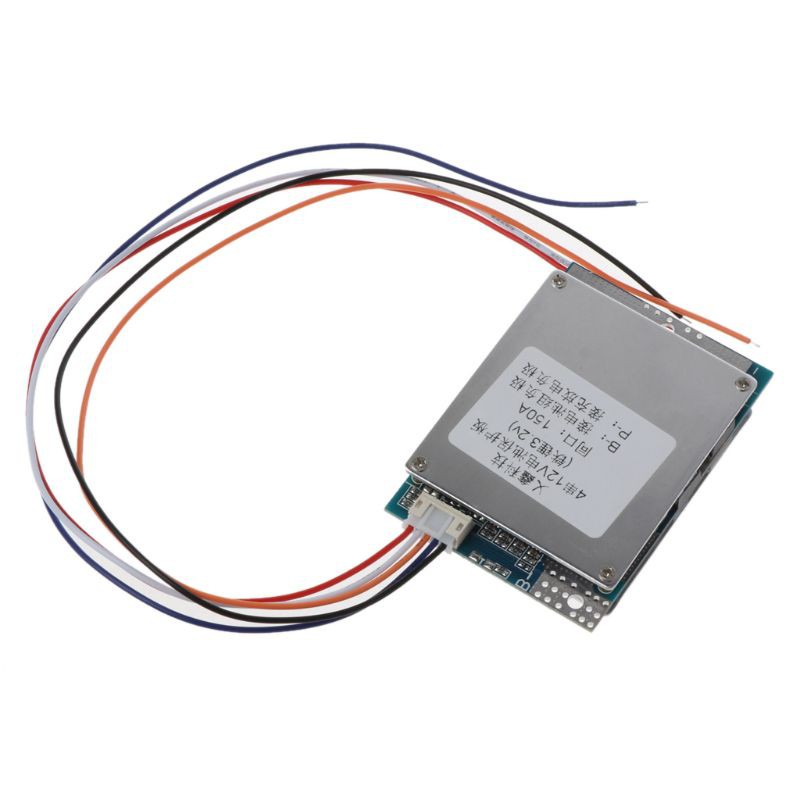

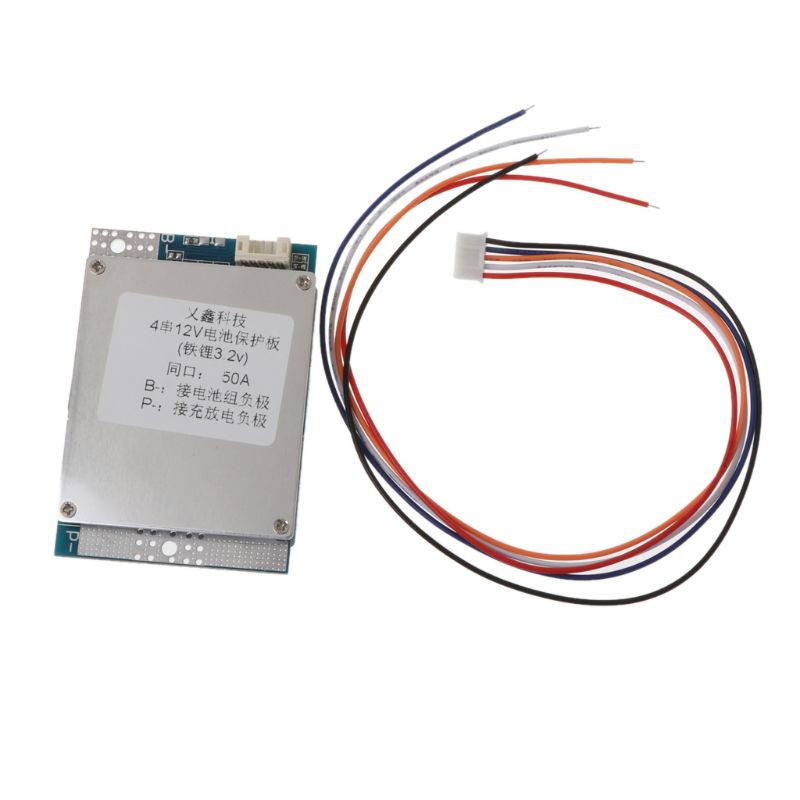

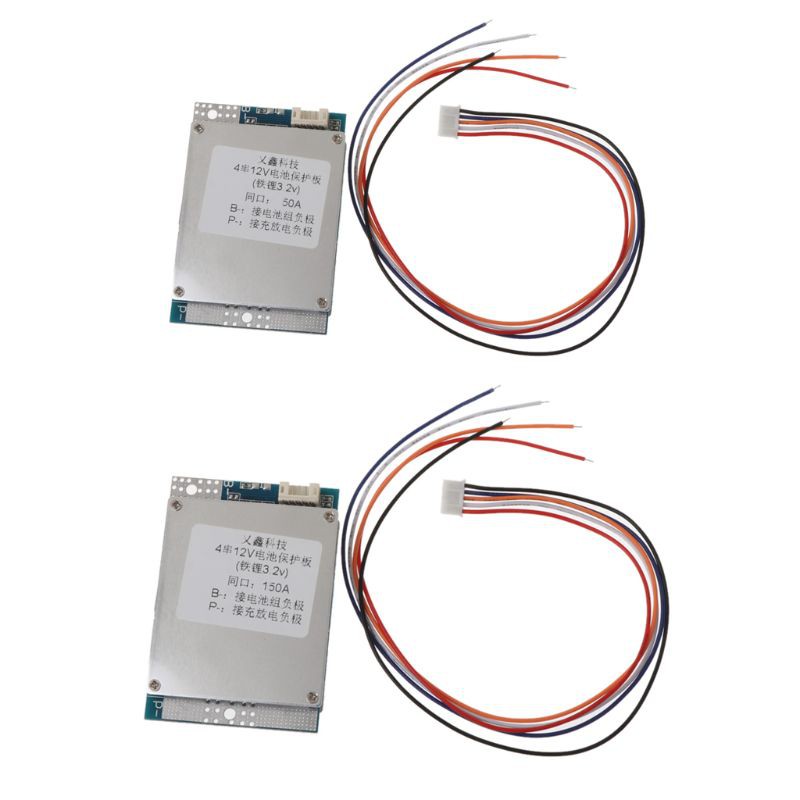

yal 4S 3.2V LiFePO4 Iron Phosphate Protection Board 50/150A with Balance

Giới thiệu yal 4S 3.2V LiFePO4 Iron Phosphate Protection Board 50/150A with Balance

100% brand new and high quality
Features:
Made of high quality material, solid, durable, good conductivity and good performance, long service life.
The inverter can reach up to 150 amps in an instant using a fishing machine.
Maximum continuous operation current of 100 amps.
It can be used on DC electric appliances with DC 12V and working current 1A-200A.
The output current is output as required by the appliance (the battery must supply the required current).
Used to assemble a lithium iron phosphate battery with a nominal voltage of 3.2V (four series 12v).
Battery protection board only, other accessories demo in the picture is not included!

Specification:
Optional Current: 50/150A
Material: PCB Board, Electronic Components
Size: app.7.5 x 5.1 x 1.4cm/2.95 x 2.01 x 0.55in
Wire Length: 30cm/11.81in
Color: Blue
Quantity: 1 Pc

Product Parameters:
50A:
Charging Current: Within 50A
Continuous Working Current: Within 50A
Peak Current: Within 100A
Over Charge Protection Voltage: Cell 3.65V ± 0.025V
Over Discharge Protection Voltage: Cell 2V ± 0.1V
Short Circuit Protection: Yes
Balance Charge: Yes
Continuous Power: Suit for the devices within 600W
Assemble: 3.2V (Include 18650)

150A:
Charging Current: Within 100A
Continuous Working Current: Within 100A
Peak Current: Within 200A
Over Charge Protection Voltage: Cell 3.6V ± 0.025V
Over Discharge Protection Voltage: Cell 2V ± 0.1V
Short Circuit Protection: High current won't be short circuit.
Balance Charge: Yes
Continuous Power: Suit for the devices within 1200W
Assemble: 3.2V (Include 18650)

Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Battery Protection Board
