yal 1Pcs AD9850 DDS Signal Generator Module 0-40MHz 2 Sine Wave and 2 Square Low-pass Filter Crystal

Giới thiệu yal 1Pcs AD9850 DDS Signal Generator Module 0-40MHz 2 Sine Wave and 2 Square Low-pass Filter Crystal

Specification:

AD9850: 0-40MHz.
Low-pass filter with 70MHz, so the waveform better than SN.
Parallel and serial data input can be selected via a jumper.
Comparator reference input voltage generated by the variable resistor, the resistor can be adjusted duty cycle square wave of different.
Active AD9850 125MHz crystal oscillator modules.

Brand new
Size: approx. 45*26mm
AD9850: 0-40MHz
Square Wave: 0-1MHz

Feature:
Active AD9850 125MHz crystal oscillator modules.
2 sine wave and 2 square wave output.
After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean.
Low-pass filter with 70MHz, so the waveform better than SN.
Parallel and serial data input can be selected via a jumper.
DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform Application.
Comparator reference input voltage generated by the variable resistor, the resistor can be adjusted duty cycle square wave of different.
Fine workmanship and good performance.
Easy to use.
Long service life.

Package included:
1 x Signal Generator Module

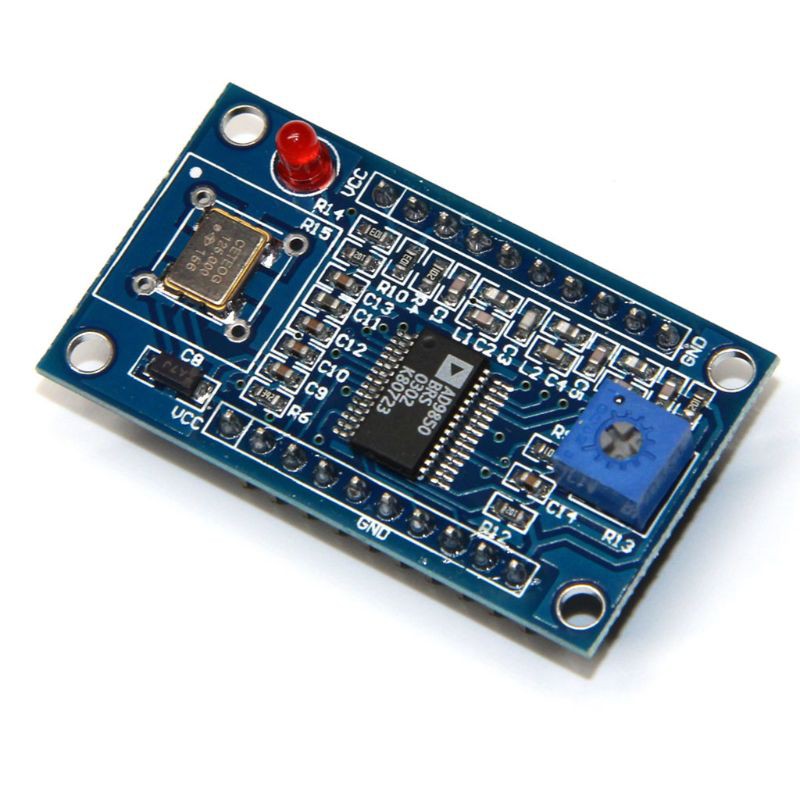

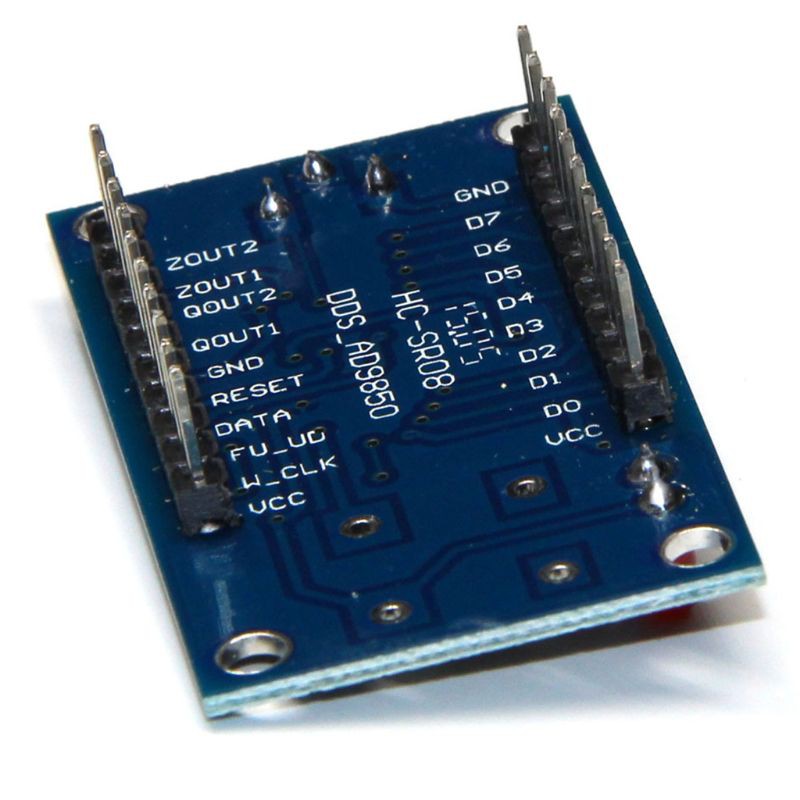

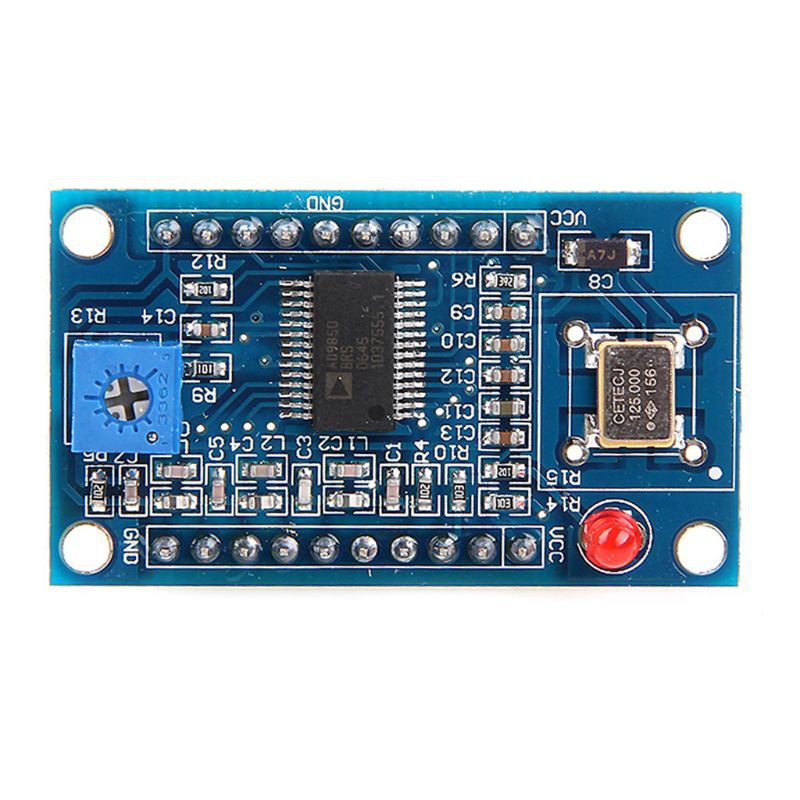

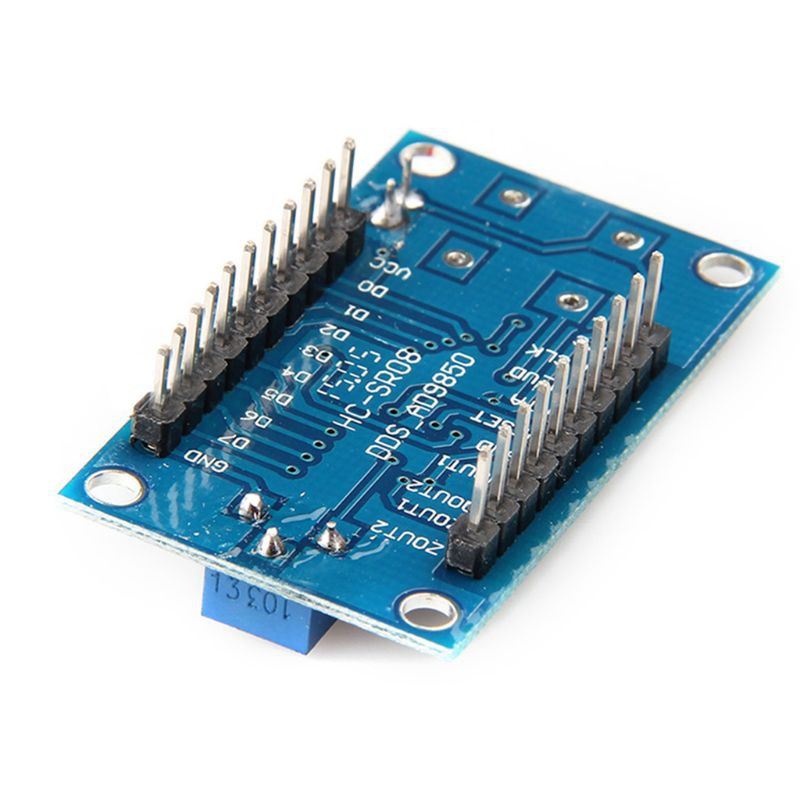

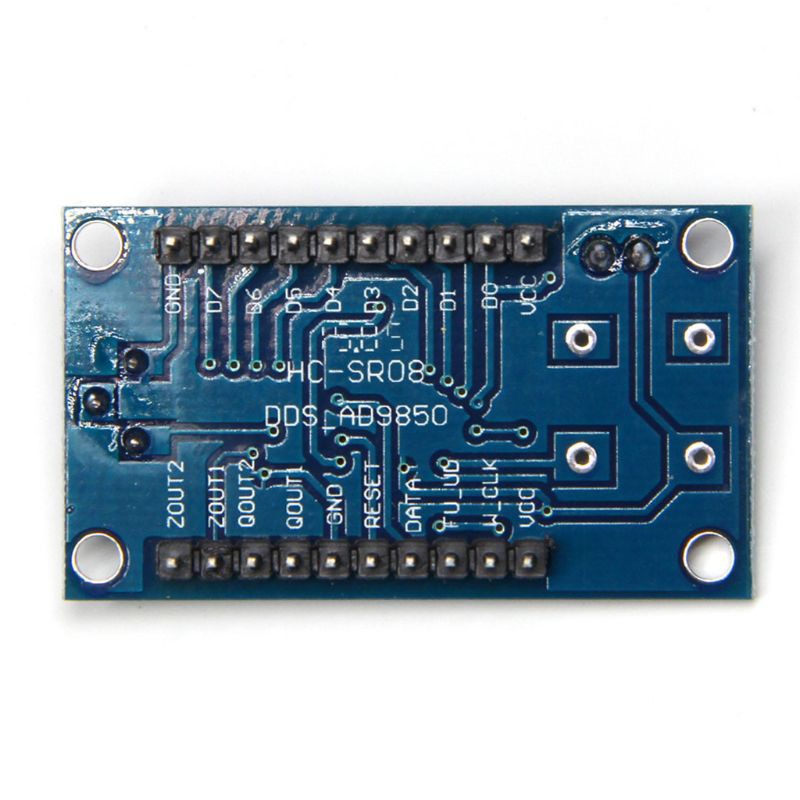

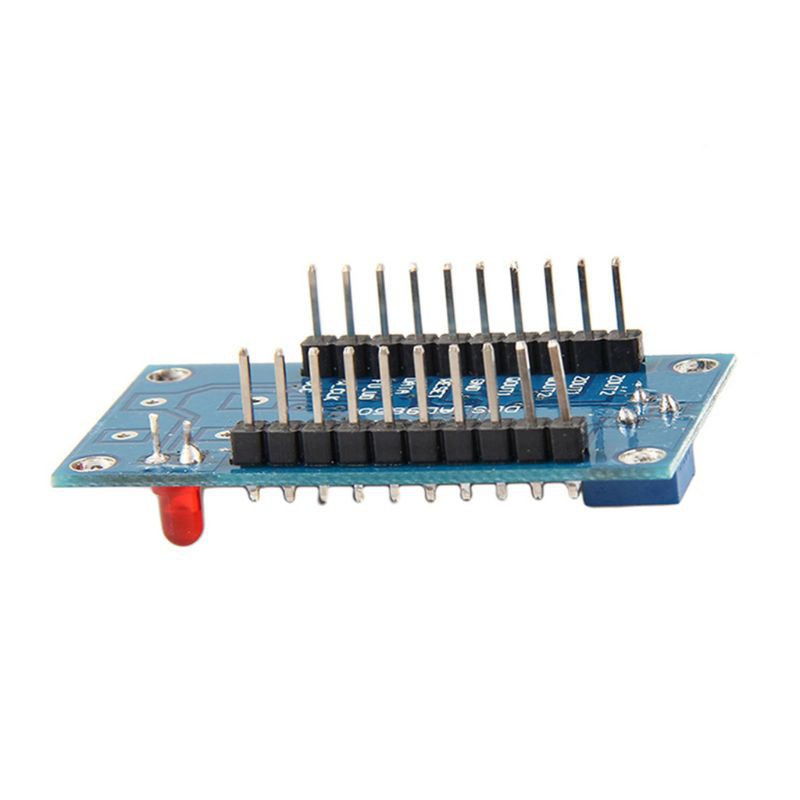

Hình ảnh sản phẩm
