Vôn Kế Màn Hình Lcd Ac 80-260v 100a

Giới thiệu Vôn Kế Màn Hình Lcd Ac 80-260v 100a

_______♤Welcome Iuxishop Store♤___________

✔Ready Stock
✔COD
✔Quality Checked
✔Whole Items: Good Quality/Ready Stock/Original/Wholesale Price
✔Shipping Time: 5-14 usually 8 days from China

★Surprises for you★
☛Free Gifts:Follow Shop
❤“Like” 5 Items: Priority Shipping
⚠️( Sent us follow shop screenshot and remark on your order "Free Gift", if not will miss)

✌(Tip:We will be based on your guests in your country to send the corresponding adapter plug)

【After-sale】: If there are any problem, please contact us firstly, we will try our best to solve it.

__________________❀Product Information❀__________________


Feature:
Can measure voltage range of AC 80V-260V and current of 0-100A.
The meter can only measure the active power(real power). It doesn't show Apparent power.
Adopted STN whole viewing angle LCD, it can be clearly seen from 360 degree view.
With overload alarm function, reset energy function, power alarm threshold preset function, etc.

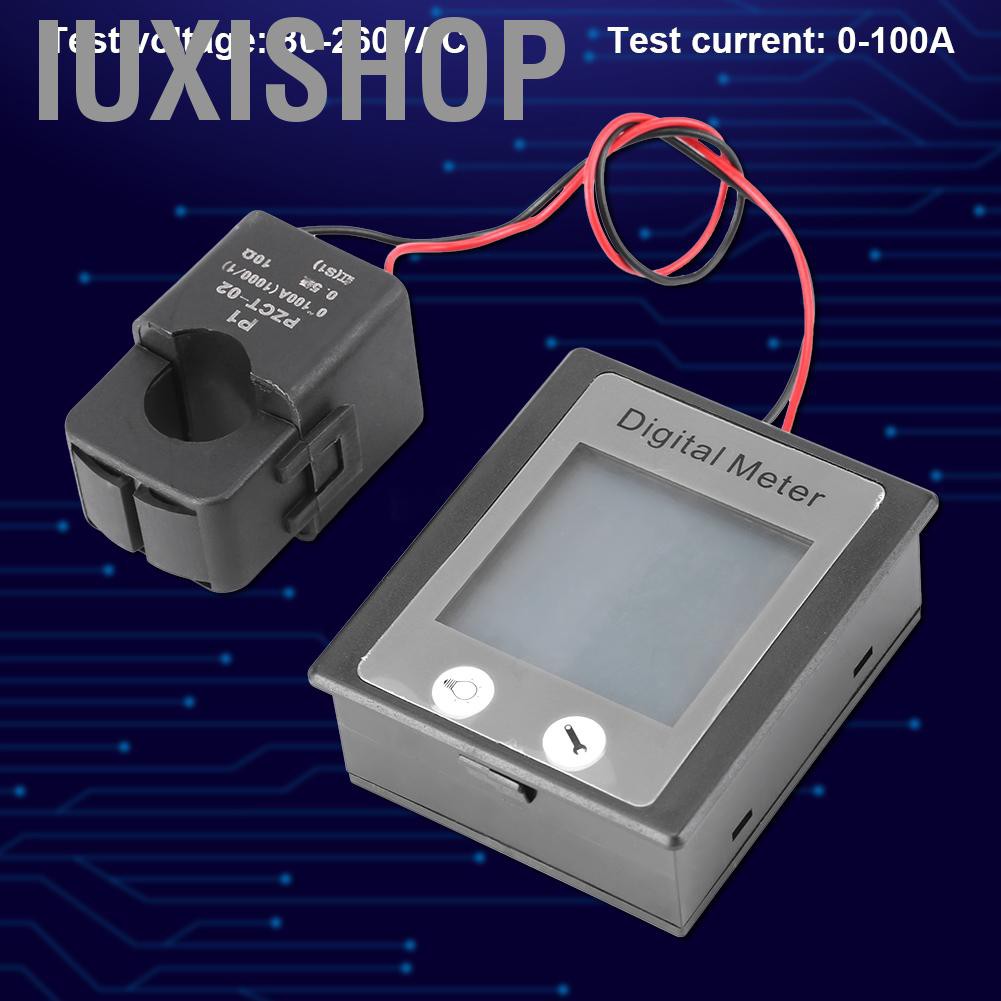

Store energy data when power off(can be reset). With split-core structure Current Transformer.

Specification:
Brand: PEACEFAIR
Model: PZEM-011
Working voltage: 80-260VAC
Test voltage: 80-260VAC
Test current: 0-100A
Rated power: 22kW
Operating frequency: 50-60Hz
Measurement accuracy: 1.0 grade
Weight: 137g
Function:
Electrical parameter measurement function (voltage, current, active power, energy)
Overload alarm function (over power alarm threshold, backlight and power flashing to alarm).
Power alarm threshold preset function (can set power alarm threshold).
Reset energy function.
Store data when power off.
STN whole viewing angle LCD (display voltage, current, active power/energy at the same time)
Backlight function.
Display format:
1. Power: test range: 0-22kW
within 1KW, the display format is 0.0-999.9W;
1KW and above, the display format is 1000-9999W;
10kw and above, the display format is 10.0-22.0kW.
2. Energy: test range: 0-9999kWh
Within 10KWh, the display format is 0-9999Wh;
10kWh and above, the display format is 10-9999kWh;
Over 9999kwh will return 0.
3. Voltage: test range: 80-260V
Display format: 80-260V
4.Current: test range: 0-100A
Display format: 0.00-99.99A
Backlight control:
Press the light key to open or close the backlight, the backlight state will be automatically saved when the power is lost.

Power cleared:
Step1: Long press set key for more than 3 seconds until the power display area digital flashing, and then release the button.
Step2: If you short press set key again, the power data is cleared and the cleared status is cleared. If you short press light key again, the power data is not cleared and the cleared status is cleared. If there is no keystroke within 10 seconds, the power data is not cleared and the cleared status is cleared.
Power alarm setting:
Step1: Press and hold light key for more than 3 seconds until the power display area is flashing, then release the button.
Step2: Power display area shows the current pow
