Van Điện T 3 Chiều 24v Ac G1 / 2 "Dn40

Giới thiệu Van Điện T 3 Chiều 24v Ac G1 / 2 "Dn40

_______♤Welcome Iuxishop Store♤___________

✔Ready Stock
✔COD
✔Quality Checked
✔Whole Items: Good Quality/Ready Stock/Original/Wholesale Price
✔Shipping Time: 5-14 usually 8 days from China

★Surprises for you★
☛Free Gifts:Follow Shop
❤“Like” 5 Items: Priority Shipping
⚠️( Sent us follow shop screenshot and remark on your order "Free Gift", if not will miss)

✌(Tip:We will be based on your guests in your country to send the corresponding adapter plug)

【After-sale】: If there are any problem, please contact us firstly, we will try our best to solve it.

__________________❀Product Information❀__________________


Features:

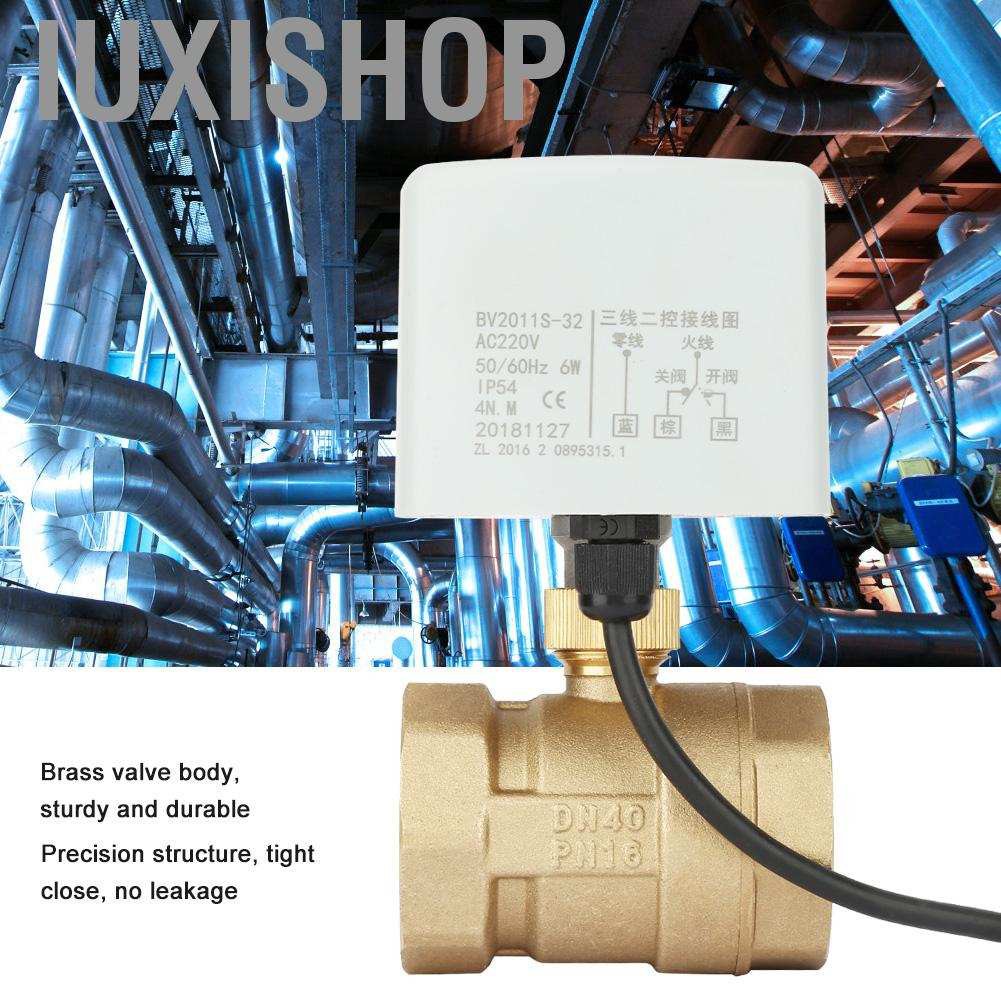

1. Brass valve body, with high strength and good durability.
2. Built-in actuator de-energizes the valve when the valve is fully open or fully closed, safe and energy-saving.
3. Precision structure, tight close, no leakage.
4. The actuator is easy to disassemble and assemble, and can be installed after the equipment and pipelines are installed.
5. Widely used to regulate the fluid flow in ventilation, heating, air conditioning, refrigeration and other pipeline system.


Specification:
Body Material: Brass
Voltage: AC220V
Power: 6W 50/60Hz
Port Size: DN40 1-1/2"
Action time: 25s
Torque: 4N.m
Close Pressure Difference: ≤0.6MPa
Nominal Pressure: PN16-PN20
Angle: 0-90°
Applicable Medium: cold/hot water, 50% ethanol solution
Medium Temperature: 5-95℃

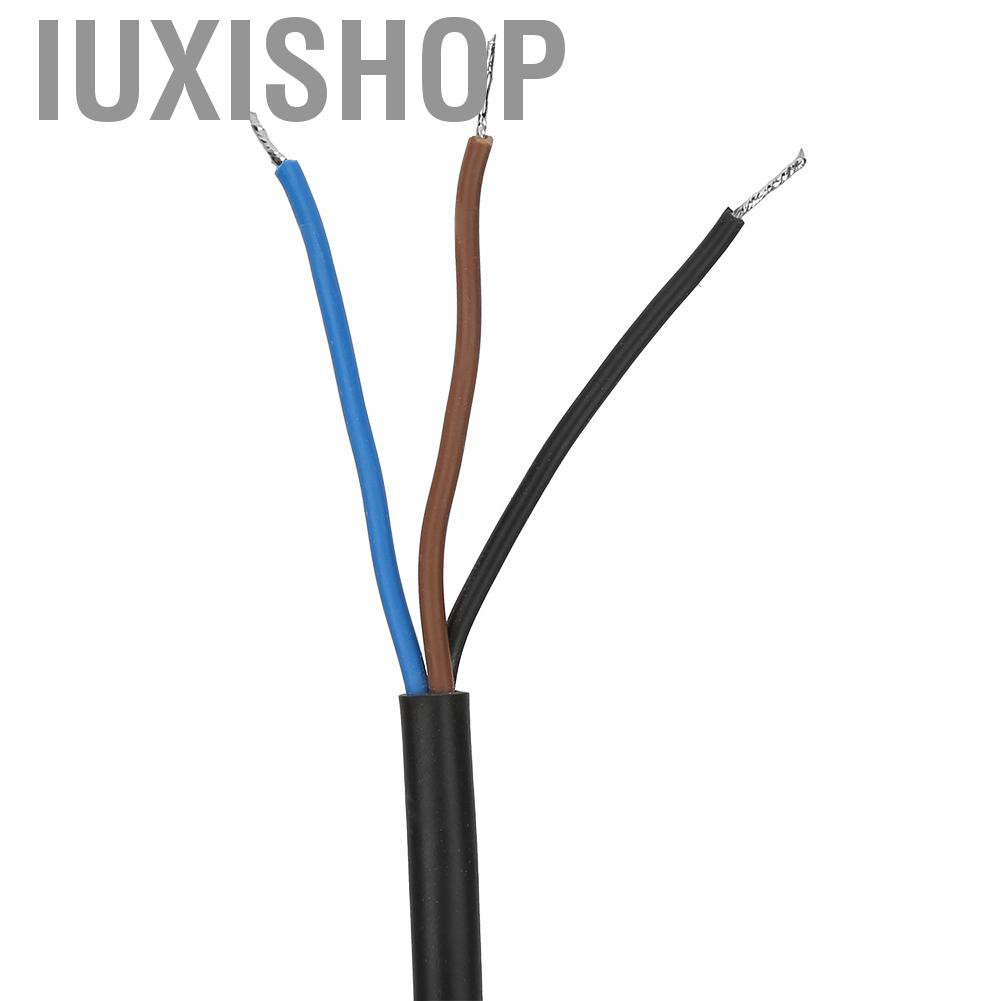

Wiring: zero wire(blue), close valve(brown), open valve(black)
Package Weight: Approx. 1095g / 38.6oz


Package List:
1 x Ball Valve

Hình ảnh sản phẩm

Giá XOR
