Thanh trượt định tuyến nhỏ nhắn chất lượng cao

Giới thiệu Thanh trượt định tuyến nhỏ nhắn chất lượng cao

--------------------------------------------- *Welcome Dioo Store* ----------------------------------------------
❀We insist on giving you the best products at the lowest price❀
✔Ready to sent ✔High quality ✔Best price
☛Free Gifts:Follow Shop
☞PS: If you want a free gift, please send me the screenshot that you follow my shop and leave a message on your order.
--------------------------------------------------- * Product * ---------------------------------------------------


Feature:
1. Stepper motor linear can be used in DIY small slider/project/measurement equipment/laser printer
2. This miniature 2‑phase 4‑wire stepper motor come with planetary gearbox, planetary gearbox reducer adopts all metal structure
3. You can drive accurate diagonal lines to move the metal slider up and down, the bracket is basically made of metal structure
4. Using high class materials with good quality to guarantee stable performance and high working efficiency
5. Come with advanced technology with fine workmanship, which is a necessary linear moving parts

Specification:

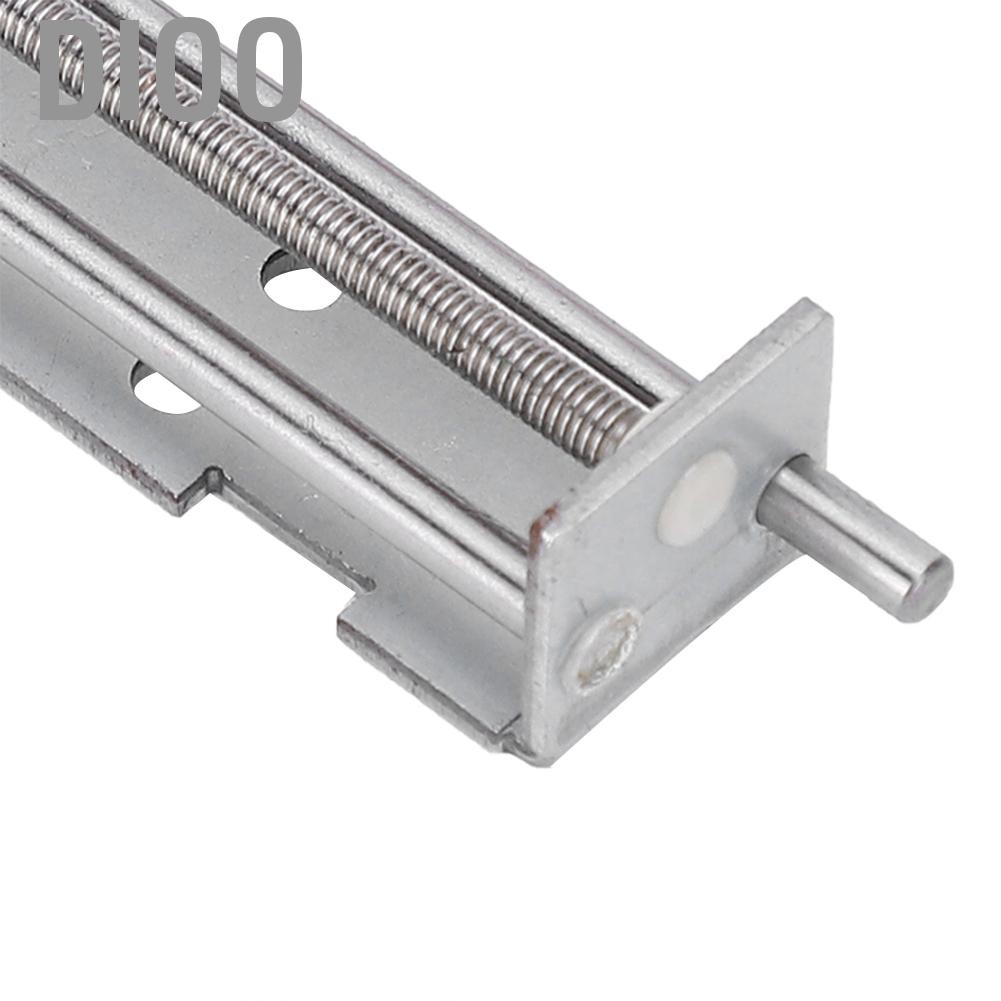

Item Type: Stepper Motor Linear
Motor Type: 2-Phase 4-wire
Drive Voltage: 4-9V/100-500mA (the higher the voltage, the greater the force, the greater the heat)
Screw Length: Approx. 90mm / 3.5in
Slider Stroke: Approx. 80mm / 3.1in
Motor Diameter: Approx. 15mm / 0.6in
Screw Diameter: Approx. 3mm / 0.1in
Optical Axis Diameter: Approx. 3mm / 0.1in
Screw Pitch: Approx. 0.5mm / 0.02in
Step Angle: 18°
Phase Resistance: 15.5 ohms
Overall Size: Approx. 105 x 15 x 18mm / 4.1 x 0.6 x 0.7in
Blue: A+, Black: A-, Red: B+, Yellow: B-

Package List:
1 x Stepper Motor Linear

Note:
Note that it is a stepper motor, does not turn when directly connected to the power, a stepper motor driver board and control board are required.
