Thiết bị kiểm tra tín hiệu mạng RJ45 BNC chất lượng cao

Giới thiệu Thiết bị kiểm tra tín hiệu mạng RJ45 BNC chất lượng cao

Feature:

100% brand new and high quality
very useful and practical tester
Specifications:

Color: As the picture shows
Size: Approx. 4.53*3.74*1.06inch/115*95*27mm
Power supply: 6F22 DC 9V reduplicated battery
Applications: RJ45 TP cable, BNC coaxial cable
Switch: ON/OFF/SLOW
How to use:
a. Slide the switch to ON position for normal testing speed and S for slow testing speed. If the cable works properly, the indicators of this tester will flash in order from number 1 to 8.
b. Flash in messy order means the wires have been crimped in the wrong order. The wire is not correctly connected if one of the indicator does not flash. If all indicators do not flash, more than 4 wires have connection problems.
c. BNC testing: green light flashes.
d. Separate the master and remote by sliding.

Package included:
1 x Cable tester
1 x User manual

Note:
-Please allow a little size error due to manual measurement.
-Please be reminded that due to lighting effects and monitor's brightness/contrast settings etc, the color tone of the website's photo and the actual item could be slightly different.

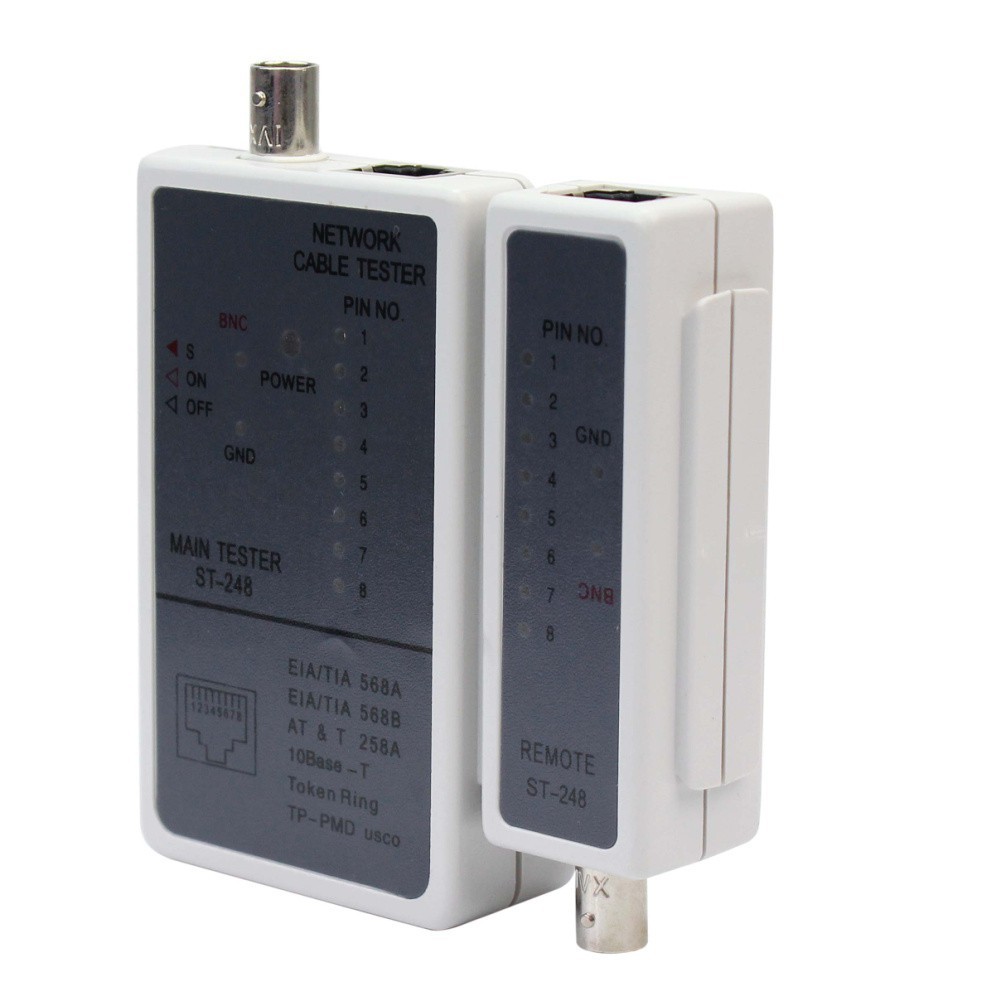

Hình ảnh sản phẩm
