Thiết Bị Kiểm Tra Mạng Lan Cat5 Cat6 Nf-488

Giới thiệu Thiết Bị Kiểm Tra Mạng Lan Cat5 Cat6 Nf-488

Nf-488 Network Tester Power Over The Ethernet Cat5 Cat6 Lan Network Tester
Features:
1. Test Criteria: Test information on standard PoE devices such as standards, supply voltage, power polarity and mode.
2. Detection voltage: Determine the power supply voltage, power polarity and mode of non-standard PoE equipment.
3. Detecting the network: Check for shorts, crossovers and open circuits in the network cable.
4. Detect current: Test the current, voltage and power consumed by the DC appliance.
5. Detection switch: Loopback test function of the switch.


Descriptions:
1. Small size, easy to carry and use.
2. Used to detect network voltage and current as well as lines.


Specification:
Indictor :LCD 128x64 mm, with back light
Continulity function:Cable types CAT5,CAT6
Check UTP/STP cable: YES
Cable short indicate: YES
Max testing range: 600m
Wire mapping: Emitter +Remote,Emitter + switch/routor
PoE function
Test range: DC5-60V POE switch
Standard identify :802.3af/at ( standard/non-standard)
Test range power :0-18W
Output interface :YES
Power function:Voltage test range DC0-60V
Current test range: 0-3A
Power test range :0-180W
Input voltage protection: DC48V 5mA
Max working current :≤80mA
Loopback: Compatible with 10M, 100M, 1000M switch
Power supply: 3*AAA
Color: black
Size: 420*110*185mm


Package Included:
1 x network tester
1 x manual


Notes:
1.Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3cm deviation. Thanks!

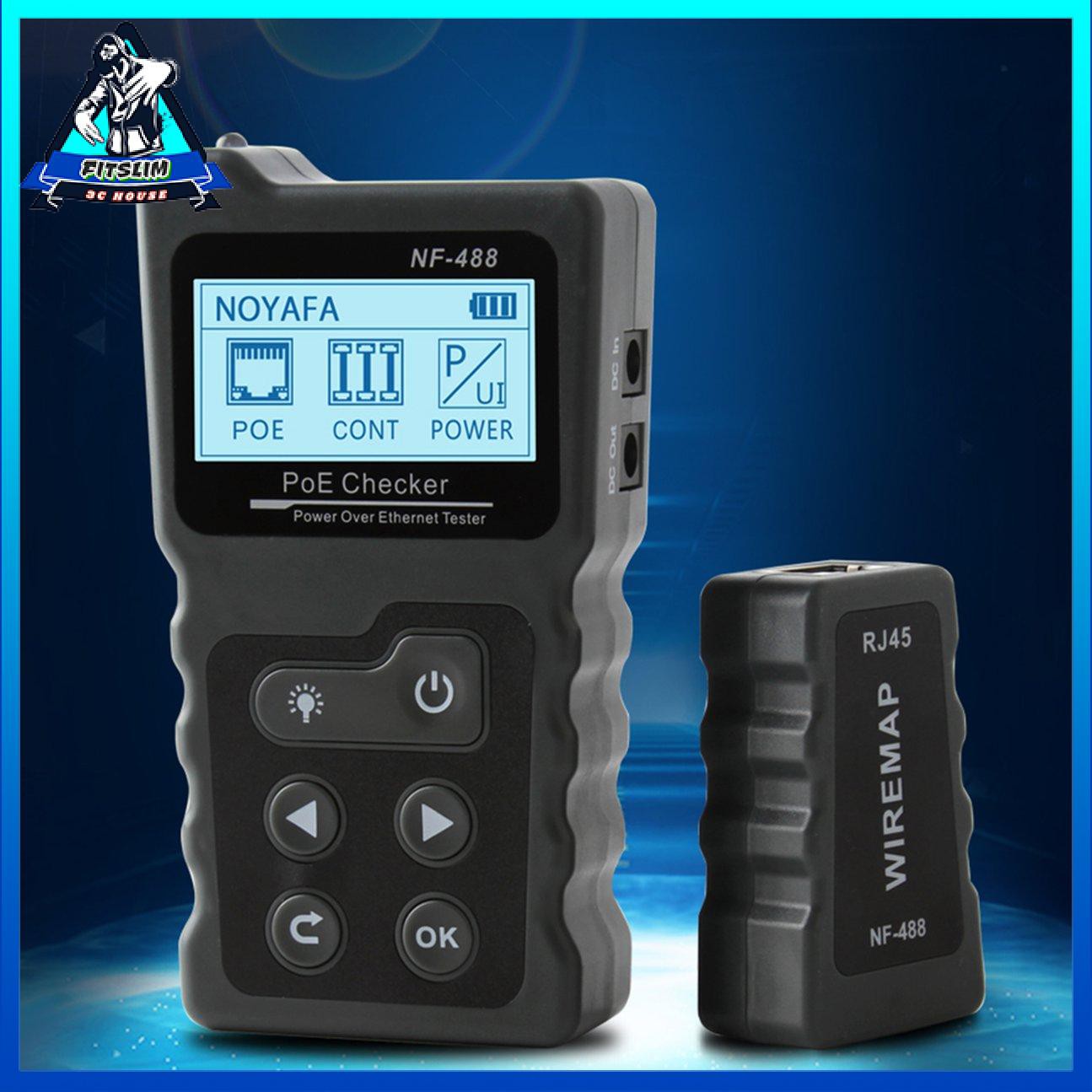

Hình ảnh sản phẩm
