Thiết Bị Điều Chỉnh Nguồn Chuyên Dụng 12v River 48v Dc Up 60v

Giới thiệu Thiết Bị Điều Chỉnh Nguồn Chuyên Dụng 12v River 48v Dc Up 60v

Input voltage: 10-32V
Output voltage: continuously adjustable (36-60V)
Output current: 5A (MAX)
Input current: 16A (MAX) (more than 10A please strengthen the heat,)
Output power: natural cooling 82W (MAX), enhanced heat dissipation 120W (MAX)
Output ripple: 2% (MAX) 20M bandwidth
Operating temperature: industrial (-40 Celsius to +85 Celsius ) (ambient temperature exceeds 40 degrees, please reduce the power to use, or strengthen the heat)
Full load temperature rise: 45 Celsius
No-load current: typical 25mA
Voltage regulation: +/- 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please input fuse or protective circuit at input)
Input Reverse Protection: None, can be input in series diode.
Wiring method: no welding, terminals
Volume specifications:
65 (length) * 37 (width) * 23.5 (high) mm
Precautions:
1. Lead wire length of 1 meter or less wire is not less than 1.5 square feet, if the length is greater than 1 meter, please bold wire, it is recommended to use 2.5 to 4 square line is better
2. ule work in high power, high temperature, plus the shell when you install the fan, small power without fan, be sure to ensure that the ule heat sink temperature can not exceed 80 degrees.
3. In the input can not be used to reverse the output can not short circuit.
4.12V battery discharge voltage can not be less than 10.5V, lithium battery in series (single 3.7V) discharge voltage can not be less than 2.7V.
Material: metal
color:yellow
Package Contents: 1x Boost Adjustable ule Power Converter
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

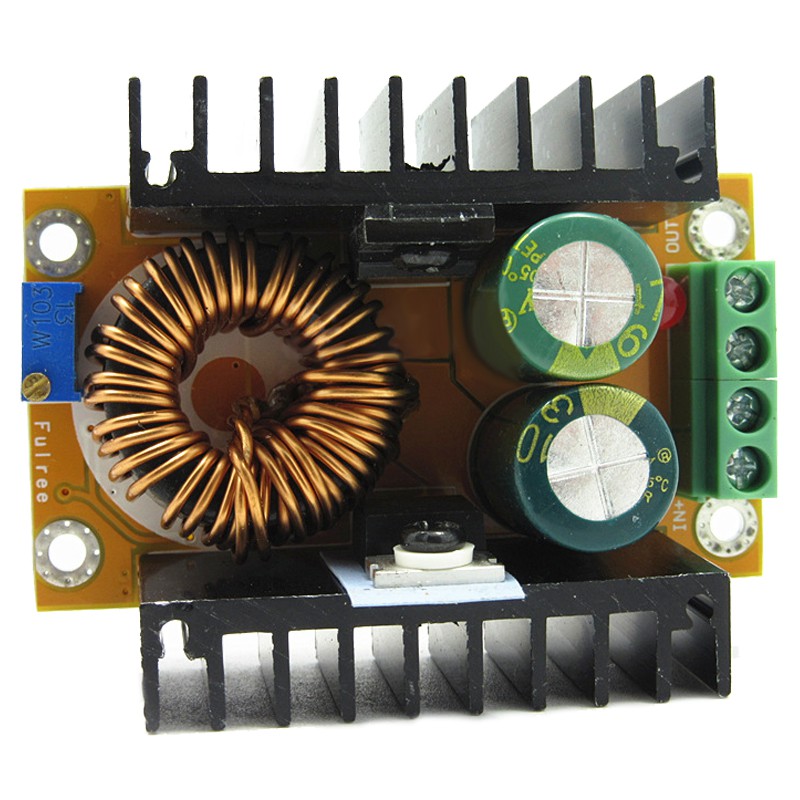

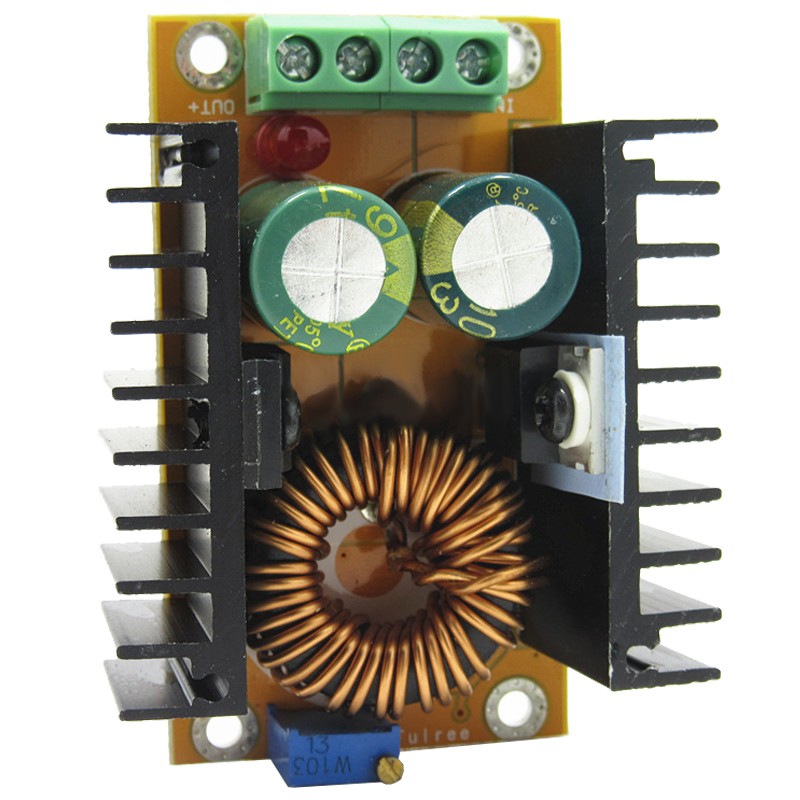

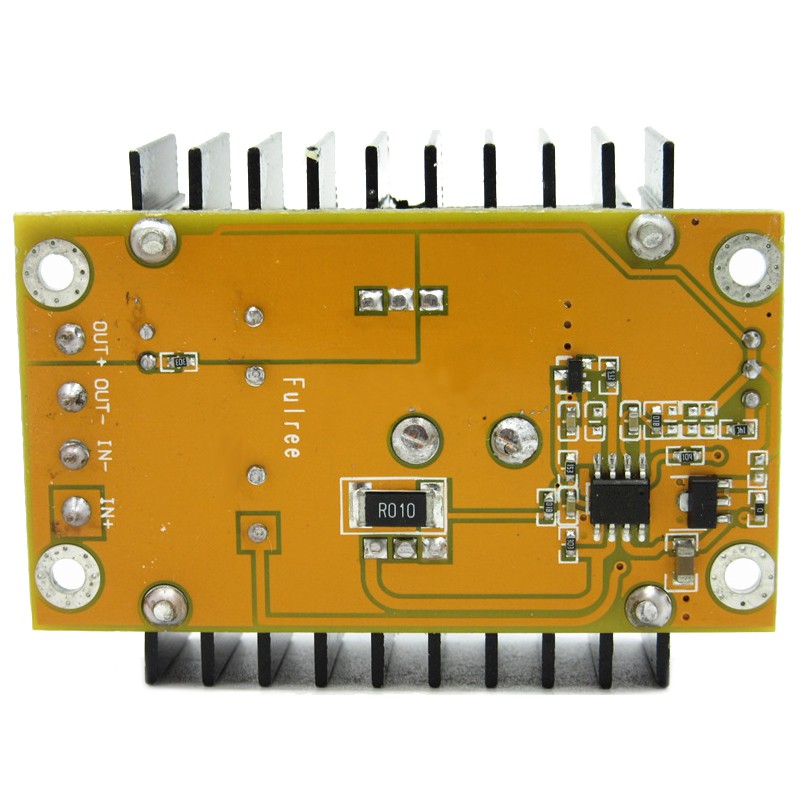

Hình ảnh sản phẩm
