Thiết Bị Chuyển Đổi Ổ Cứng Hdd 3.5inch Ide Sang Sata

Giới thiệu Thiết Bị Chuyển Đổi Ổ Cứng Hdd 3.5inch Ide Sang Sata

Specifications:
Recorder IDE hard drive to SATA, connect to the motherboard SATA port.
3.5-inch IDE hard drive to SATA, connect to the motherboard SATA port.
IDE optical drive to SATA, connected to the motherboard SATA port.
IDE burner to SATA, connected to the motherboard SATA port.
The desktop 3.5-inch IDE hard drive can be transferred to the SATA recorder (please format the hard disk on the computer first).
The transferred hard disk can be used as the master disk, the slave disk (requires reinstalling the system, refreshing in the for BIOSS, etc.).
The transferred optical drive can guide the system.
The adapter card supports a parallel port hard disk with a maximum capacity of 1000G.
For IDE devices that use a riser card, the jumper cap must be inserted in the for MASTER position.
Compatible with SATA 1/2/3.
Plug and play, no drivers required.

Common Faults of Product:
Check if there is a problem with the SATA data cable and see if it is loose. Or change to a normal SATA cable.
Check if the jumper is on the main board and the value is in the for MASTSER position.
Is it correct to set the boot for BIOS. Some motherboards require for BIOS settings (set SATA mode to IDE mode).
If it is not possible to use compatibility issues, there are a few devices with compatibility issues with such conversion cards.
Compatibility is not recognized due to the reasons of the product, and the following is done, share it below. When it is not recognized: right click on "My Computer - Properties" - "Hardware" - "Device Manager", then open "IDE ATA/PATA Controller" and then double-click the primary and secondary IDE channels respectively, select "Advanced" Set ", set "Device Type" to "Auto Detect", set "Transfer Mode" to "DMA (if available)" - Check. After rebooting, see if the system finds new hardware.

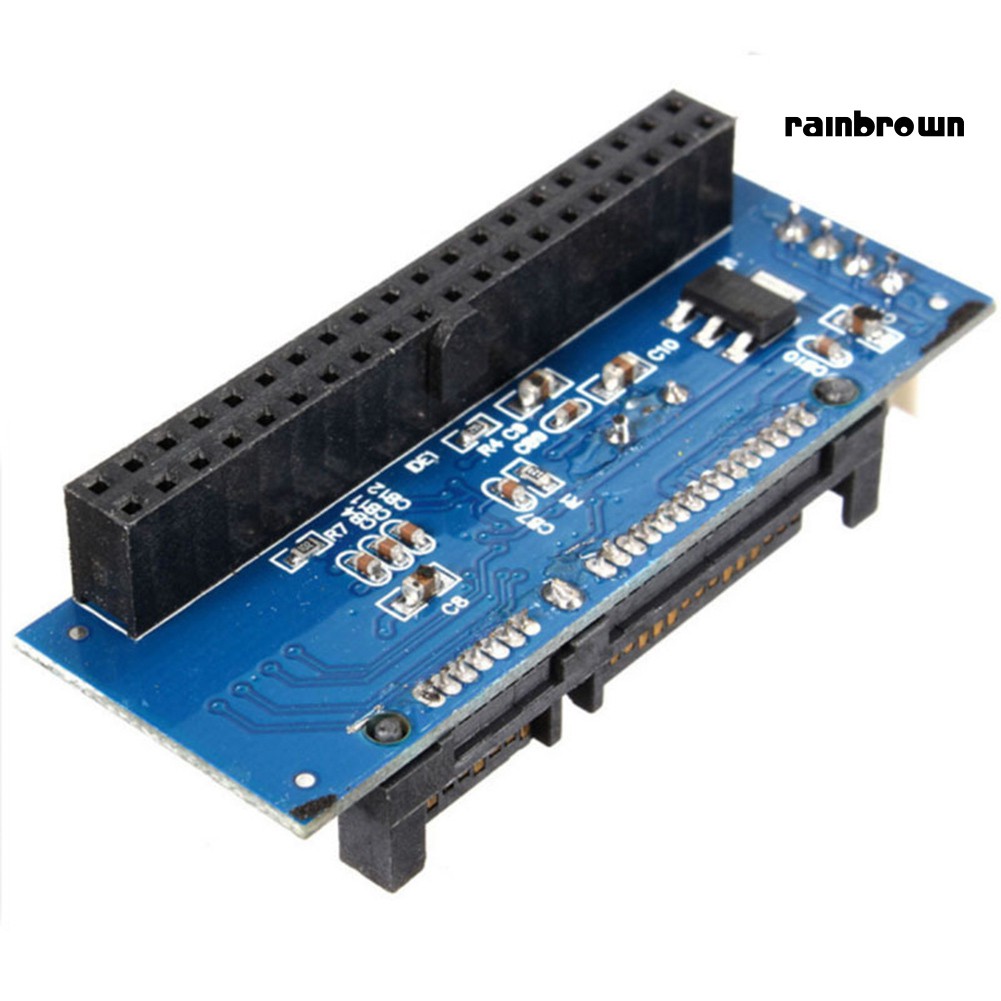

Item Name: IDE to SATA Adapter Card
Material: PCB
Compatible System: for Windows XP/7/8 (32/64Bit)
Features: IDE to SATA, Easy to Use, Drive Free
Size: 6cm x 2.2cm/2.36" x 0.87" (Approx.)

Notes:
Do not support the main board IDE interface to SATA hard disk, etc., please note that the direction can not be reversed before purchasing.
Due to the light and screen setting difference, the items color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

Package Includes:
1 x IDE to SATA Adapter Card
1 x Power Cable
