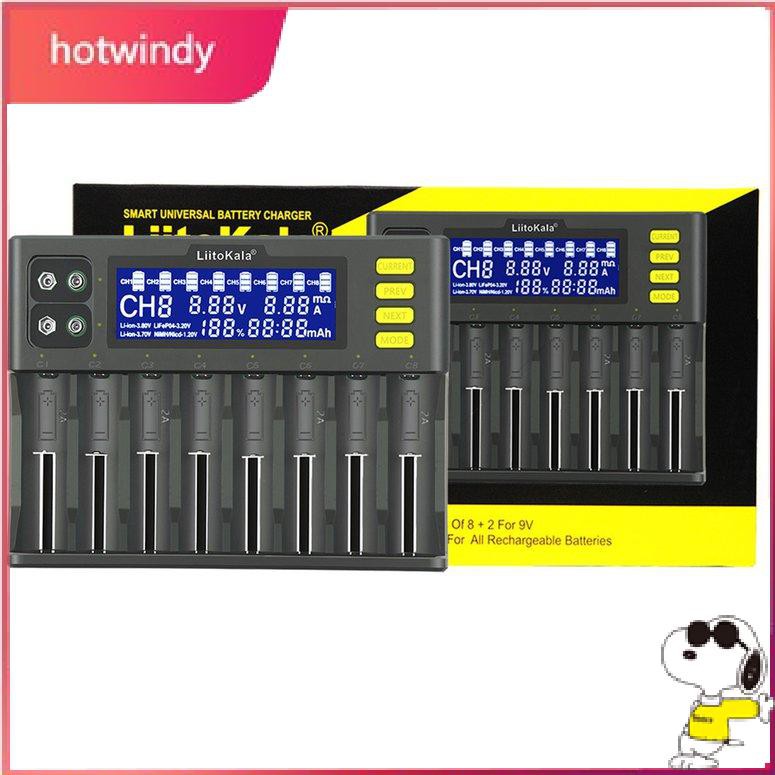

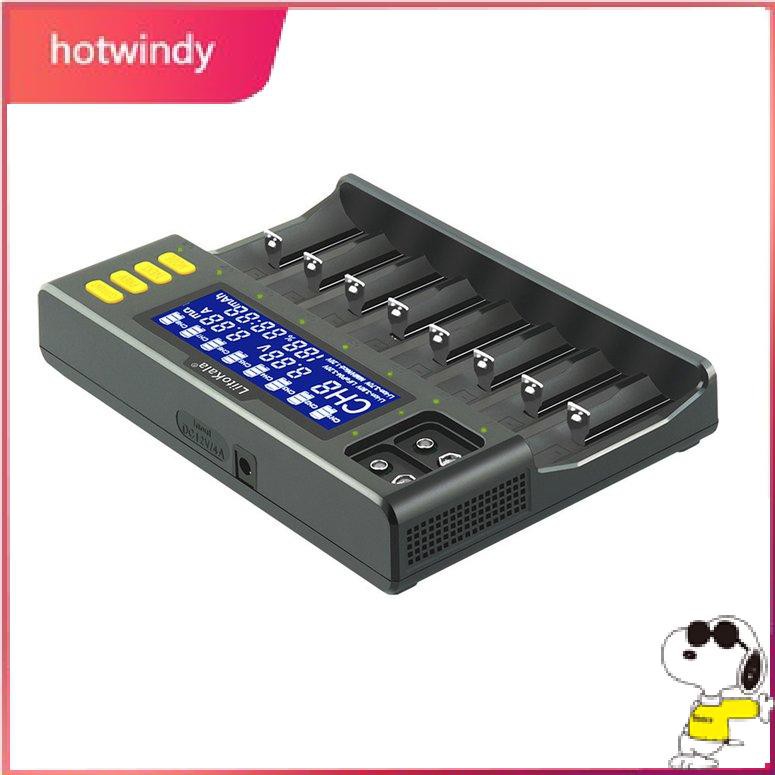

[0202] Lii-S8 Battery Charger Li-ion 3.7V NiMH 1.2V Li-FePO4 3.2V IMR 3.8V Charger
Features:
-Use DC12.0V 4.0A (minimum) input, intelligent charging and microcomputer management system for each slot.
-The biggest highlight of this charger is that it can charge multi-channel 2 ampere current at the same time and quickly charge 9V Ni-MH rechargeable battery.
-There are five levels of charging current 0.30A/0.50A/0.70A/1.00A/2.00A.
-There are multiple safety protection functions such as overcharge, overdischarge, short circuit, reverse connection, etc., and it can intelligently and automatically identify bad batteries.
-With 0 V voltage activation function, 1.65-2.20V cannot be charged (but there will be an activation current trickle type charging).




Descriptions:
When charging, the LCD can display the battery
symbol/channel CH and the battery type/charging current A/battery
voltage V/charging time h/charging capacity mAh and percentage %/battery
internal resistance mΩ and other data; standby display "null" ", when
the channel is short-circuited or the battery is reversed, it will
display "Err". When the battery is full, the data on the LCD will be
saved, showing 100%, and the battery symbol will not move; each slot
corresponds to a red and green indicator LED light, The red light is on
when charging, the green light is on when in standby and when the
charging is stopped, and the red light wheel flashes when the battery or
the channel is abnormal (short circuit/reverse connection, etc.)


Specifications:
Material: Plastic
Color: Black
Input power: DC 12.0V 4.0A
Output voltage: DC 4.20V for Li-ion
DC 4.35V for IMR
DC 3.65V for LiFePO4
DC 1.48V for NiMH/Ni-cd
DC 9.0V for NiMH
Output current:
Li-ion/IMR/LiFePO4: 2.00A*4 (only the 1/3/6/8 channels), 0.30A /0.50A/0.70A/1.00A*8
NiMH/Nicd: 0.50A*8
NiMH-9V: 85mA*2
Constant current/constant voltage charging, cut-off current: 100mA
No-load standby current: <50mA
Compatible battery types and models:
Li-ion / IMR/LiFePO4: 26650, 21700, 20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd: AA, AAA, SC/C
Size: 195.0mm×142.5mm×35.0mm (length/width/height)
Type :EU ,US optional

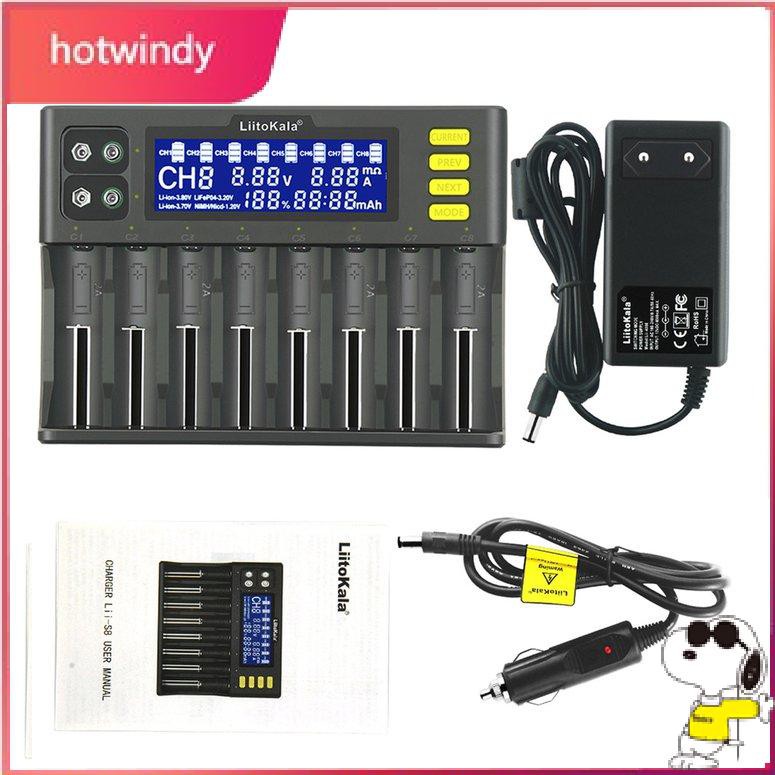

Package included:
1 x Lii-S8 Battery Charger
1 x car charger


Notes:
-Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
-Please allow slight dimension difference due to different manual measurement.
