Rơ Le Bảo Vệ Điện Áp An Toàn 40a 220v

Giới thiệu Rơ Le Bảo Vệ Điện Áp An Toàn 40a 220v

40A 220V Din Rail Adjust Reconnect Over and Under Voltage Protector Relay Protective Automatic Recovery ON/OFF Rocker Switch
Description:

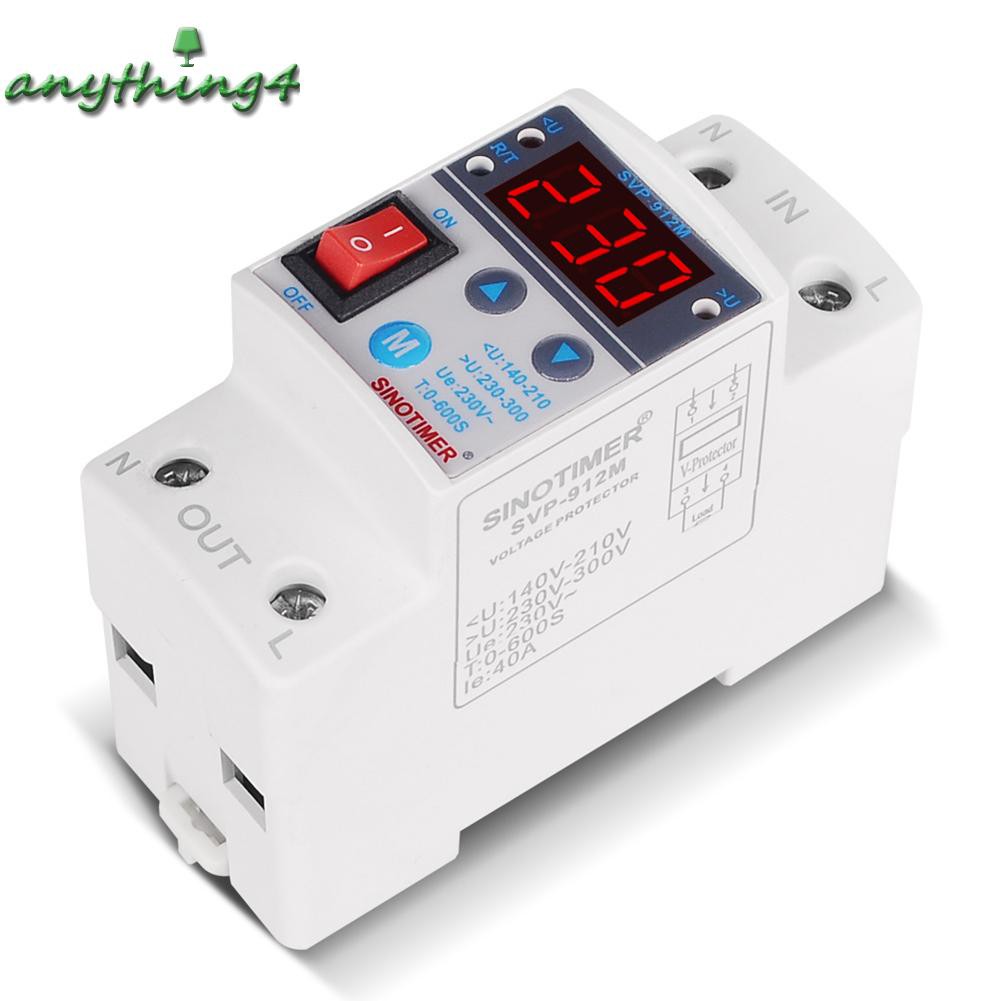

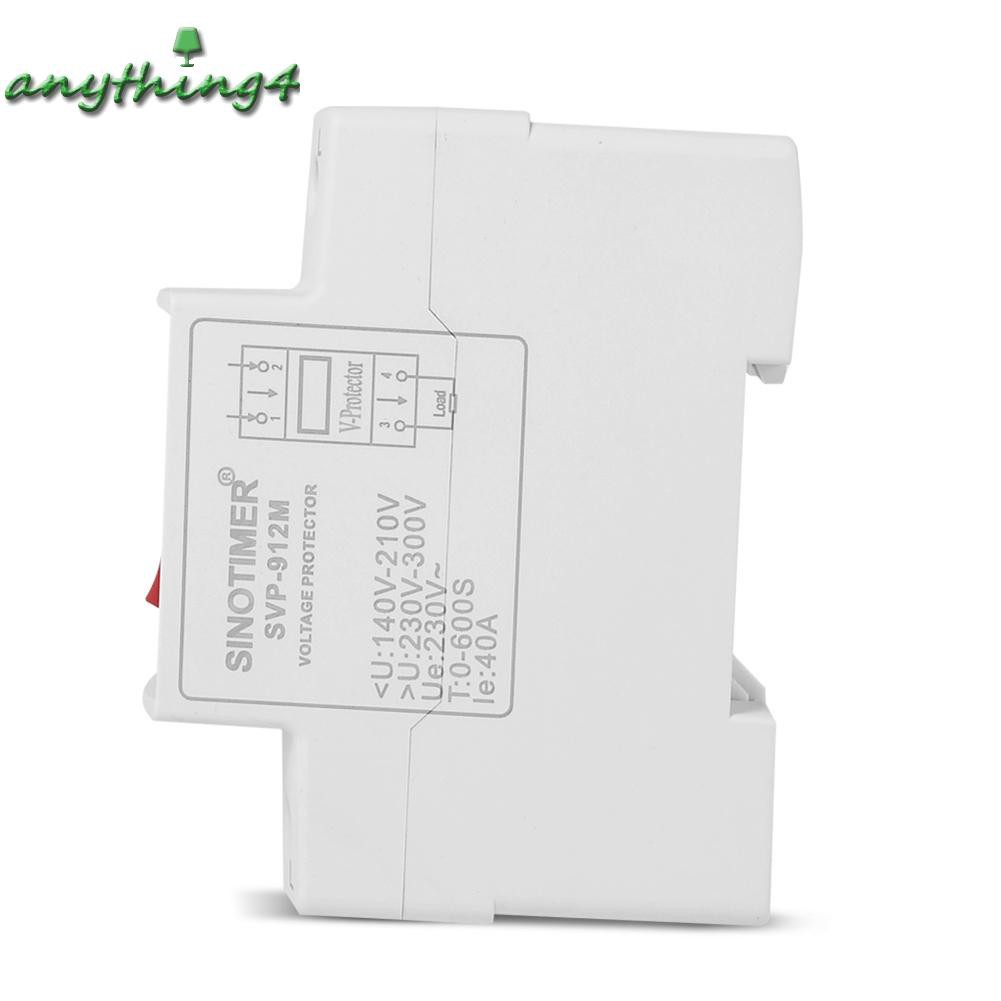

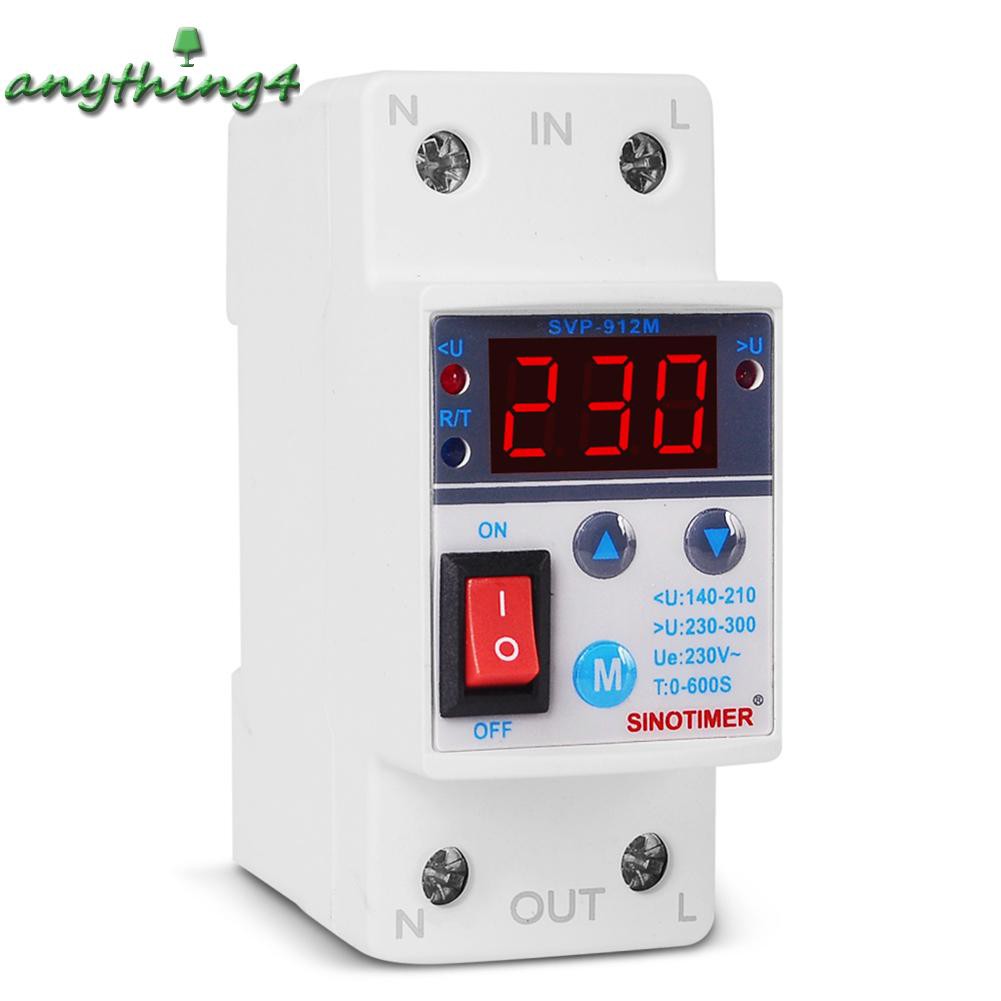

1. SVP-912M automatic overvoltage and undervoltage protector is suitable for single-phase AC 230V, 50 / 60Hz, rated working current 40A.
2. It is mainly used for the over-voltage and under voltage of the residential family mailbox input or single-phase electrical equipment distribution line.
3. Its main feature is that when there is overvoltage or undervoltage in the circuit, the product can immediately cut off the power supply to protect the electrical equipment from damage. In addition, when the circuit voltage is too high, the protector can automatically turn on the power supply and return to normal.

Function:

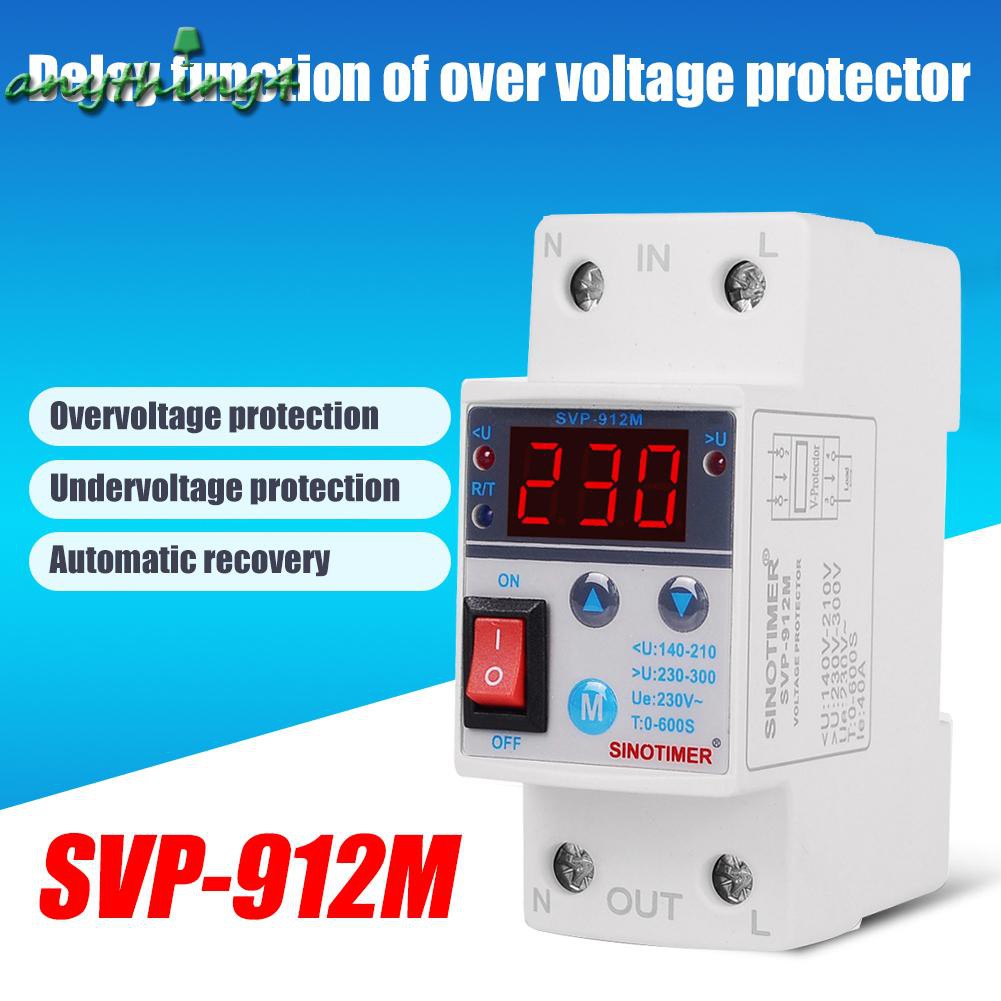

1. Over voltage protection
2. Under voltage protection
3. Automatic recovery
4. Voltage display (voltage measurement)
5. Failure recovery delay.

Specification:
Model: SVP-912M 40A
Power supply: 230V AC 50/60Hz
Maximum load power: 1 ~ 40A, adjustable (default: 40A)
Overvoltage protection range: 230V ~ 300 ~OFF (default: 280V)
Undervoltage protection value range: 210V-140V-OFF (default: 160V)
Recovery delay time: 1s ~ 600s (default: 5S)
Power consumption: < 2W
Motor life: 100,000 times
Installation: 35mm DIN rail

Note:
When you connect the product for the first time, you need to wait about 1 minute, then the red light goes out before the product can work.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.


Included:

1 X Voltage Relay
