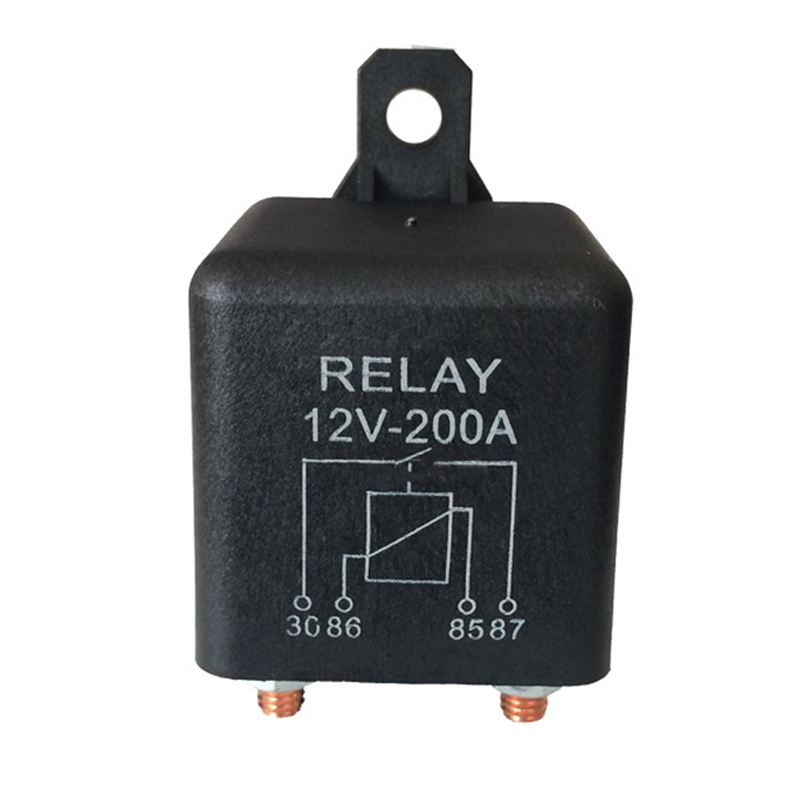

Rơ Le 4 Pin 12v 200a Chất Lượng Cao

Giới thiệu Rơ Le 4 Pin 12v 200a Chất Lượng Cao

Heavy duty 'Make & Break' relay suitable for On/Off applications where the ability to switch a higher current from a low power source is needed.
Normally Open configuration, the relay has an open circuit at rest. The integrated fixed bracket allows easy mounting.
Can also be used as a split charging relay, simply wire the coil to an ignition feed or to a feed that becomes live when the alternator is charging.

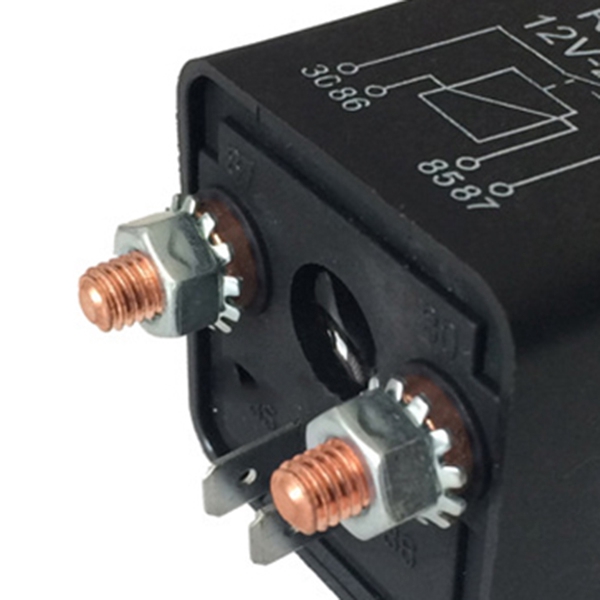

M6 studs are for the switched high current circuit and are supplied with lock washers and nuts
Supplied Individually
Voltage Rating: 12v
Current Rating: 200A Max
Terminal Configuration: None Standard
Number Of Terminals: 4
Terminal Size: 2 x 6.3mm Male Lucar Terminals (Pins 85 & 86) - 2 x M6 Studs (Pins 30 & 87)

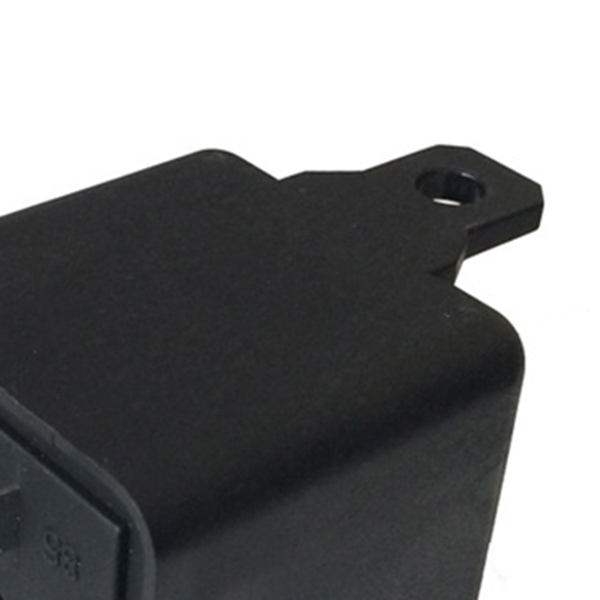

Bracket Type: Fixed
Mounting Hole Size: 6mm
Dimensions LxWxH (Including Terminals): 45x45x60 mm
color: Black
Material: ABS+Metal
Package Contents:
1X 12V 200A Normally Open 4 Pin Relay
1X User manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
