Bộ phụ kiện tản nhiệt E3D 1.75/3.00mm cho máy in 3D

Giới thiệu Bộ phụ kiện tản nhiệt E3D 1.75/3.00mm cho máy in 3D

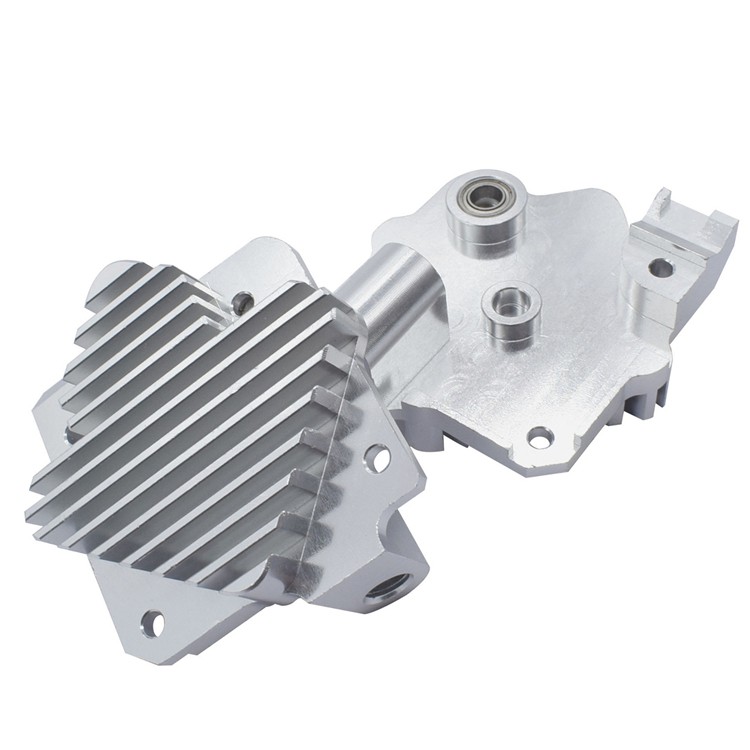

3D Printer 1.75mm/3.00mm Titan AERO Extruder Upgrade Kit E3D Titan Heat-sink Accessories

Description:

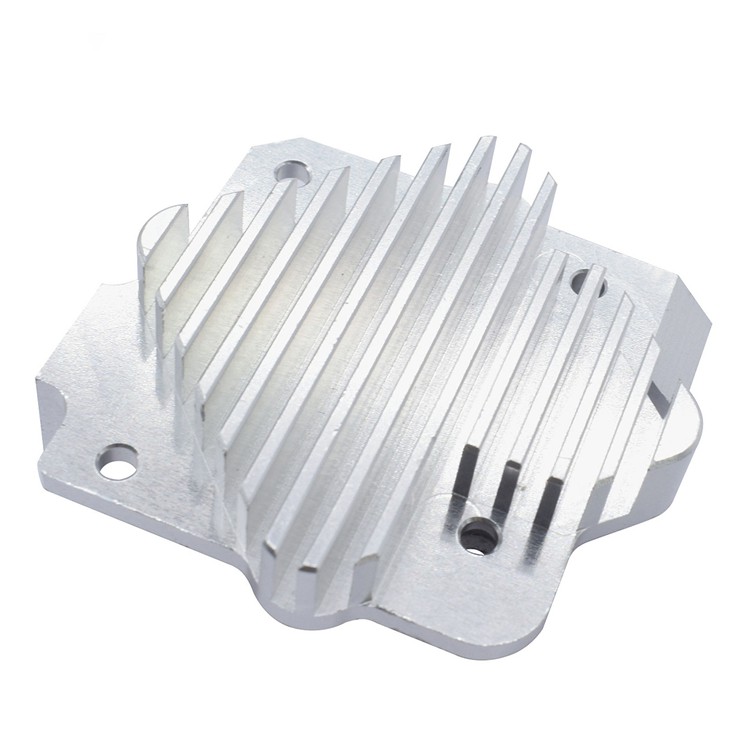

 The Titan AERO Heatsink is an aluminum heatsink designed to replace the radiator used on the hotend assembly. The Upgrade Heatsink is a direct replacement for the plastic cover on a Titan and comparable extruder
 The Aluminum heat-sink reduces the height (adds Z-Axis printing capacity) to the whole extruder/hot end assembly. This is accomplished by replacing the radiator normally used on the heat-break tube to keep the filament from melting outside the hotend heating zone. Depending on the original radiator you could add up to 45-mm more printing height (Z-Axis) to your printer because of the reduced height of the extruder/hot-end assembly
 The cold end of the heat-break tube screws directly into the Titan Aero Upgrade Heat-Sink where the filament feeds out to the hot-end assembly block. Your original hot-end assembly screws onto the heat-break tube as is normal. You use the your original heat-break tube. You use the original radiator fan to cool the Aero Upgrade Heat-Sink so there are no wasted parts. This keeps the costs down which are directly passed on to you
 Although not shown there is a bearing for the extruder drive shaft included - you don't have to try and remove the bearing in the original plastic cover (it would most likely break of you do)

Packing includes:
 1 * heat sink

Hình ảnh sản phẩm

Giá KACY
