Ống Nhiệt 12v 50w Cho Máy In 3d

Giới thiệu Ống Nhiệt 12v 50w Cho Máy In 3d

Description:

Features:
100% brand new and high quality.
The improvement compared to ordinary red heater
-From the original ordinary 0.3-line high-temperature line to 0.5-line thick white high-temperature line, can bear higher temperature, and looks more beautiful.
-From the original 40W power to 50W, therefore, the maximum temperature increases from 300-31°C to 340-350°C or so.
-The new version heater used in all imported skills, the use of 304 stainless steel, with the internal use of 2080 nickel chrome wire to achieve maximum service life.
-Can be used with the new HT-NTC100K temperature thermistor (Temperature measurement can be up to 350 degrees).

Single-ended heater instructions
-The effective heating part of the heater must keep dry.
-The electrical connector of the single-ended heater should be placed out of the insulation layer and heating room, and the working voltage shall not exceed its rated value of 10%. The shell should be effectively grounded.
-Electric components working environment, the temperature should not be greater than 95 degrees, no explosive or corrosive gases.
-Electric components should be stored in a dry place.

Specifications:
Material: Nylon + Metal
Heating head material: 304 stainless steel
Color: shown as pictures
Heating Head Size: 6×20mm/0.24×0.79in (Approx.)
Cable Length: 1m/3.28ft; 2m/6.56ft (Optional)
Voltage: 12V
Power: 50W
Line thick: 0.5 mm2; (The cross section of the copper wire inside the heater is 0.5mm2)
Heating temperature: up to 350 °C
Quantity: 1 PC (other accessories demo in the picture is not included)

Note:
-Transition: 1cm=10mm=0.39inch
-Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
-Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes: (No retail package)

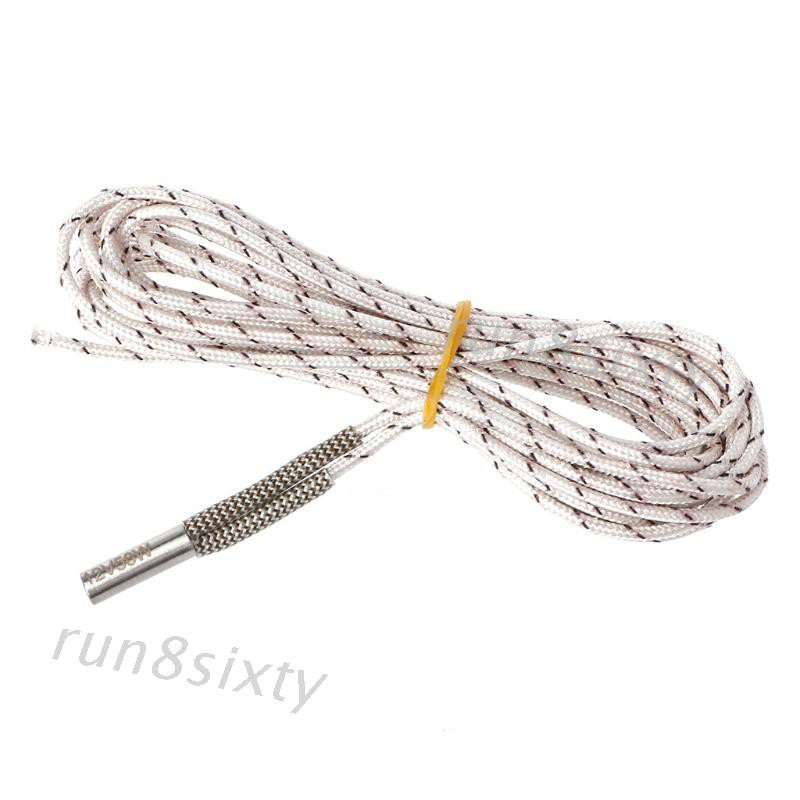

1 X Heating Tube

Hình ảnh sản phẩm
