Nút Công Tắc Cách Điện Cho Xe Hơi / Xe Tải

Giới thiệu Nút Công Tắc Cách Điện Cho Xe Hơi / Xe Tải

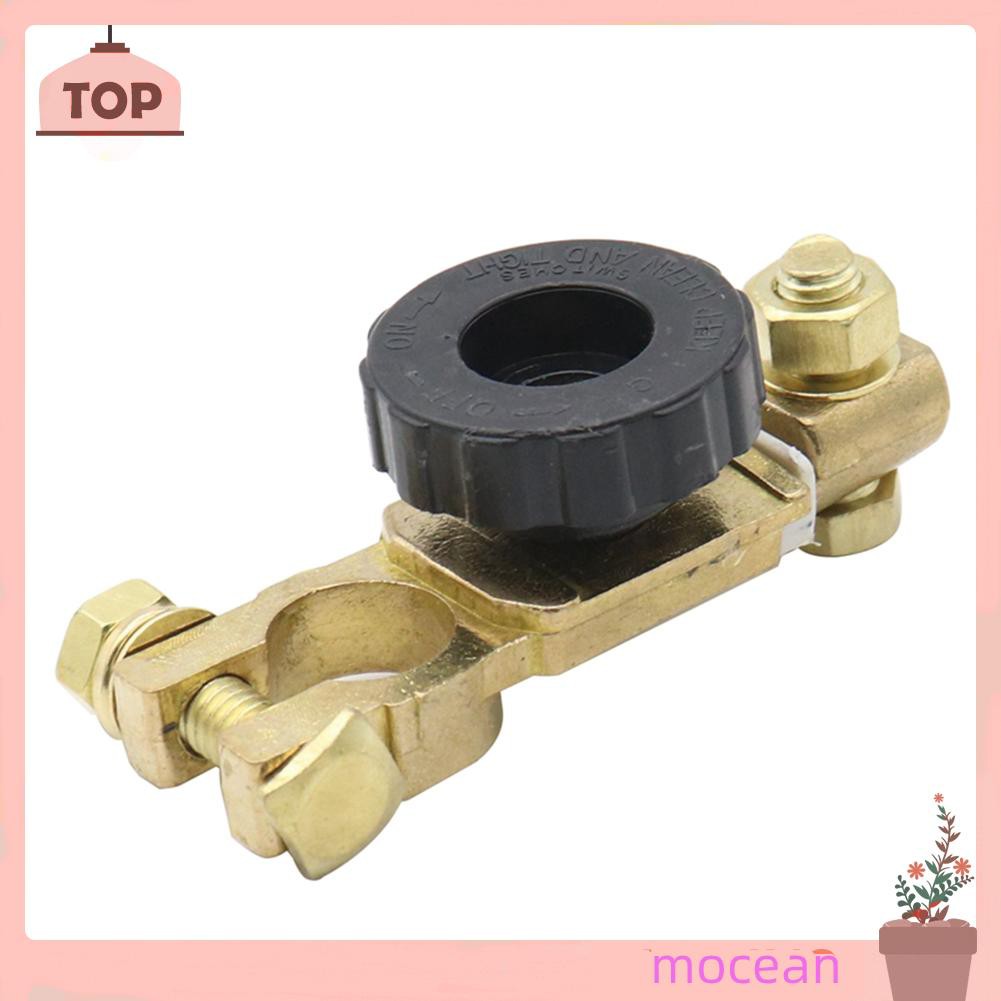

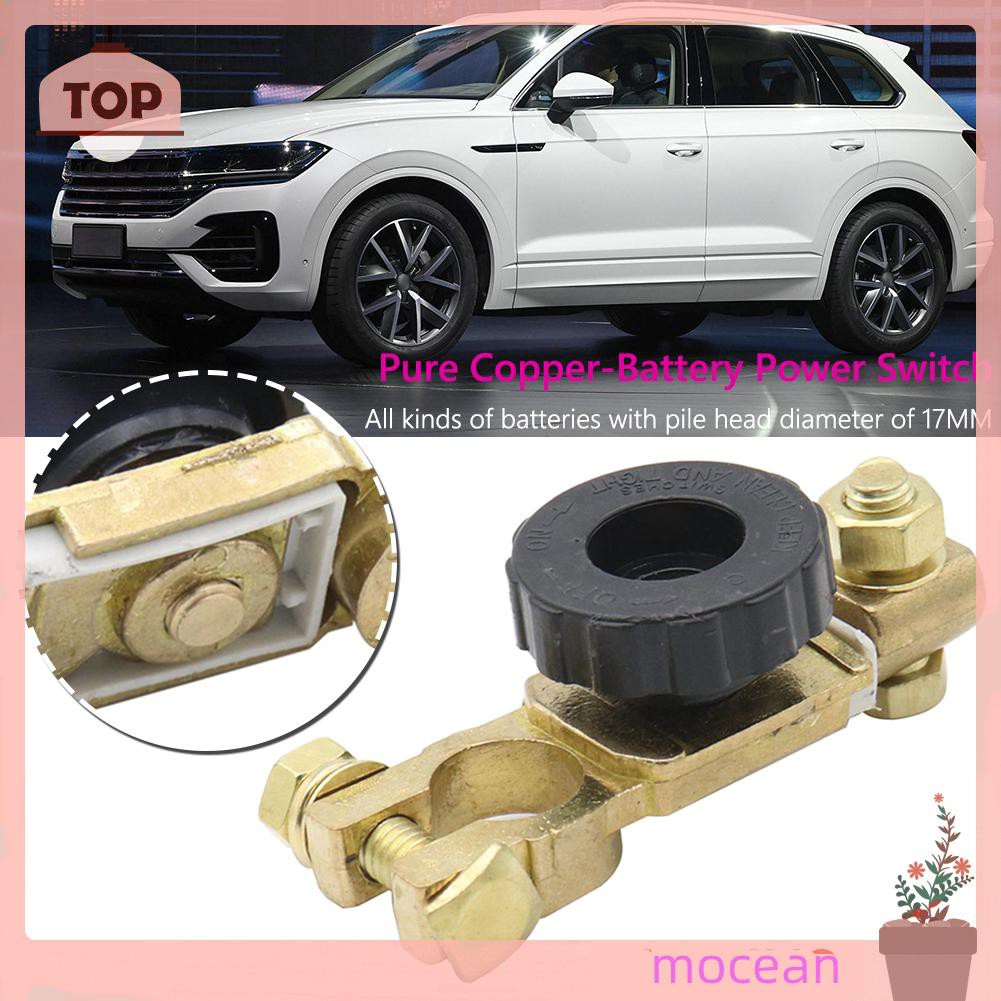

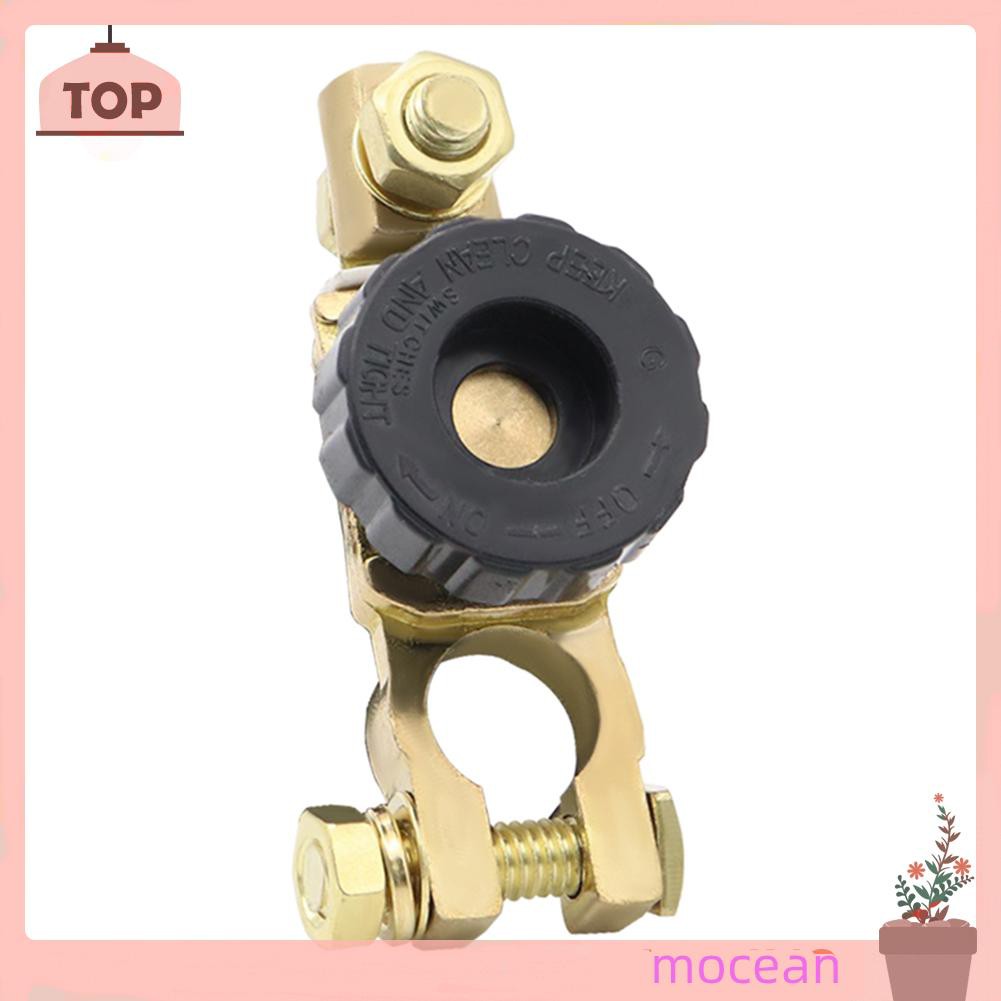

ᖘᖘ Car Truck Motorcycle Battery Terminal Link Quick Cut Off Switch Black Knob Rotary Disconnect Isolator
Specification:
Model: AP5155
Weight: 128 grams
Material: pure copper
Scope of application: battery with 17mm posts
Applicable models: various large, medium and small trucks and buses, medium-sized vans, various off-road vehicles, etc.
(NOT for Honda Fit, NOT for NISSAN SUNNY 2010)

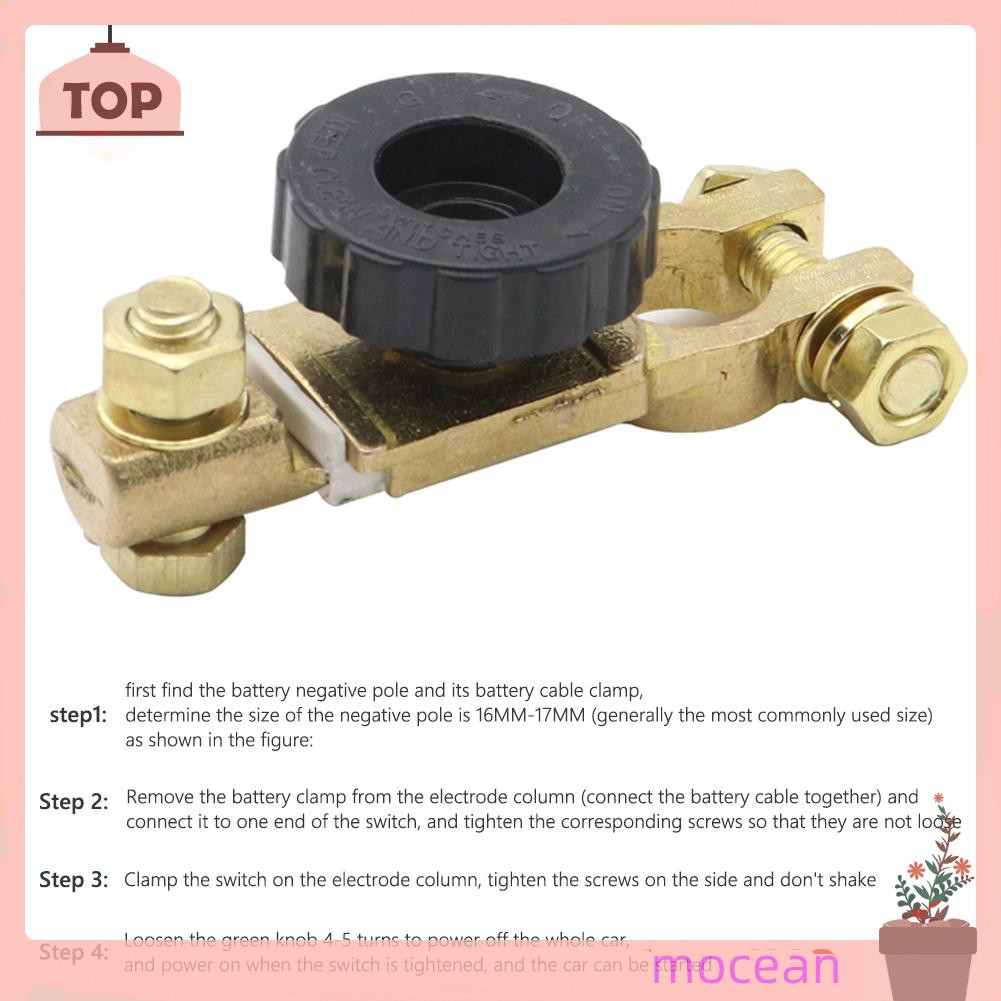

Installation method:
Before installation, check whether the negative battery post and battery terminal are corroded (white powder) or dirty, and clean it up (to prevent poor contact between the battery and the battery switch)
Step 1: first find the battery negative post and its terminal, determine the size of the negative post is 16mm-17mm (generally the most commonly used size)
Step 2: Remove the battery terminal (along with battery cable) from the post and connect it to one end of the switch, and tighten the corresponding screws so that they are not loose
Step 3: Clamp the switch on the post, tighten the screws on the side and don't shake
Step 4: Loosen the knob 4-5 turns to power off the whole car, and power on when the switch is tightened, and the car can be started

Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.


Included:

1 X Switch
