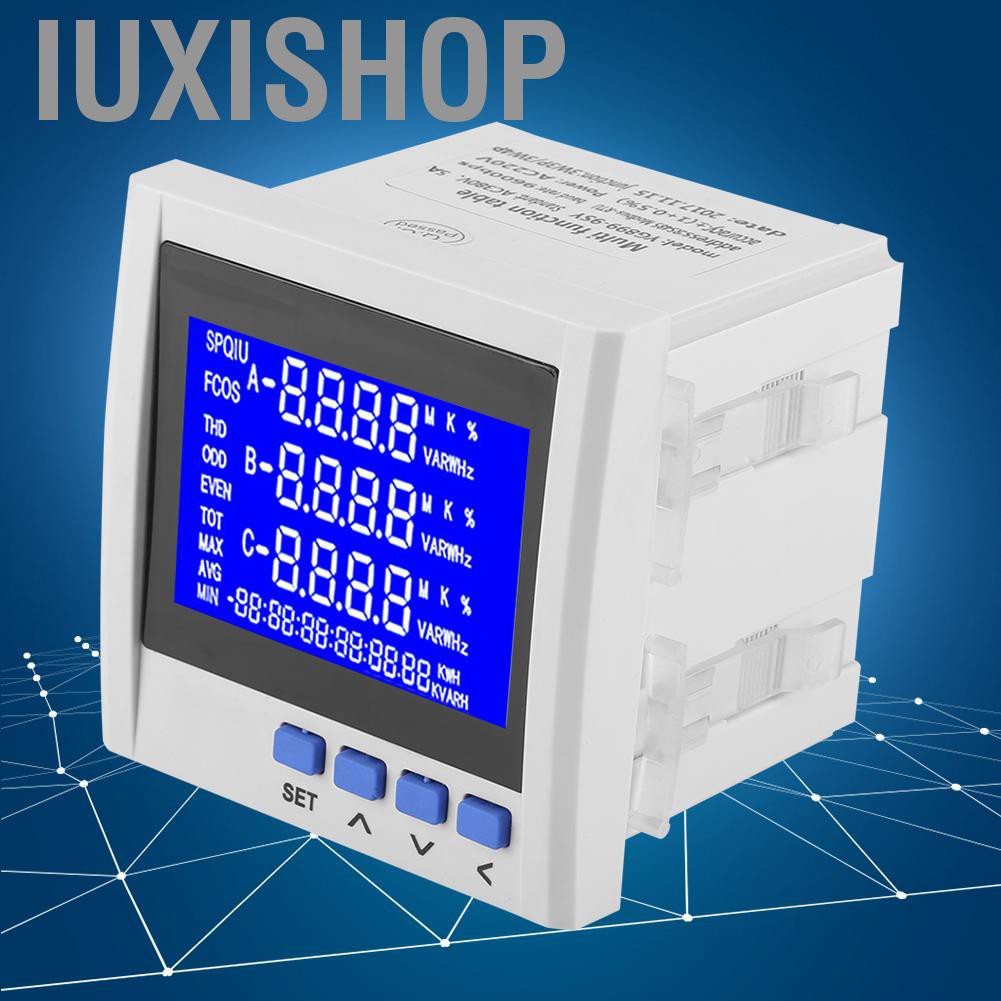

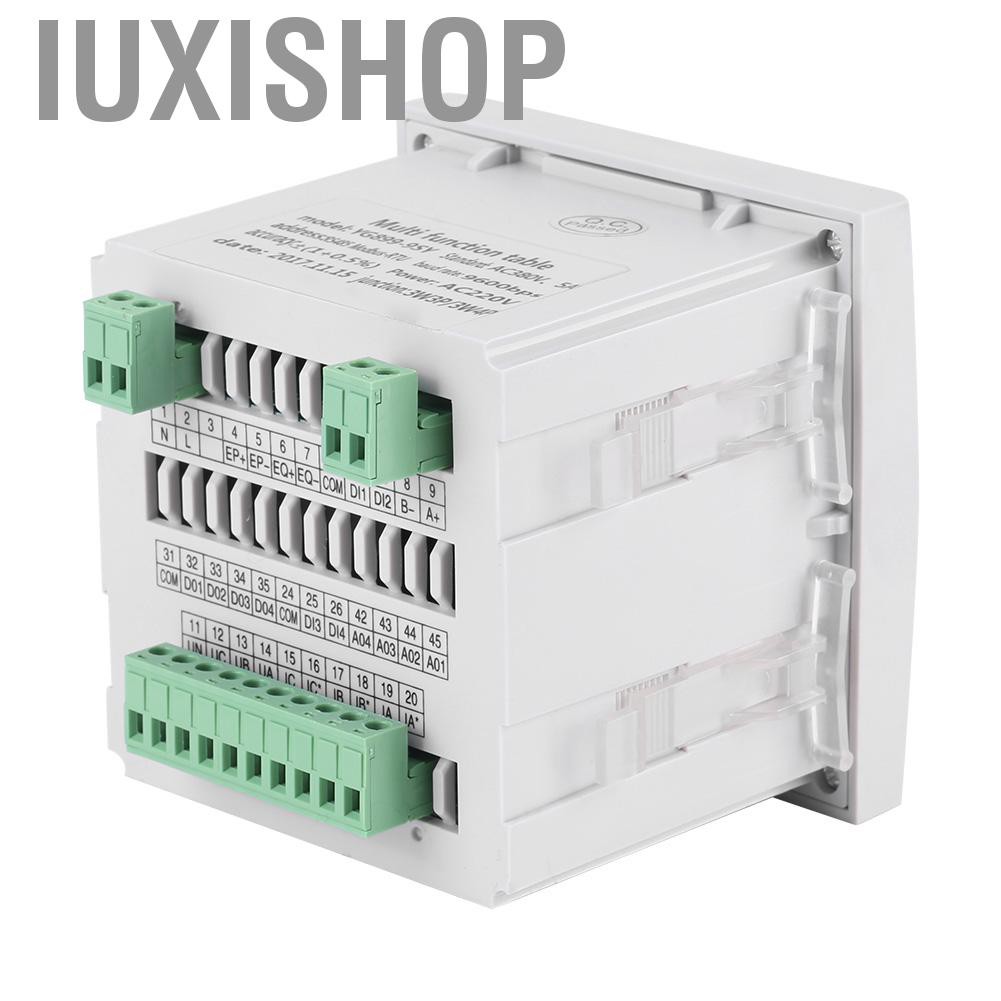

Bộ Đồng Hồ Đo Điện Áp Đa Năng 3 Pha Kwh Rs485

Giới thiệu Bộ Đồng Hồ Đo Điện Áp Đa Năng 3 Pha Kwh Rs485

_______♤Welcome Iuxishop Store♤___________

✔Ready Stock
✔COD
✔Quality Checked
✔Whole Items: Good Quality/Ready Stock/Original/Wholesale Price
✔Shipping Time: 5-14 usually 8 days from China

★Surprises for you★
☛Free Gifts:Follow Shop
❤“Like” 5 Items: Priority Shipping
⚠️( Sent us follow shop screenshot and remark on your order "Free Gift", if not will miss)

✌(Tip:We will be based on your guests in your country to send the corresponding adapter plug)

【After-sale】: If there are any problem, please contact us firstly, we will try our best to solve it.

__________________❀Product Information❀__________________


Features:
The power meter is easy to operate, safe, accurate, durable, intelligent, and energy saving.
Housing is made of flame retardant ABS material, the structure is more secure.
Plug type connectors are more convenient to wire.
Designed with many heat dissipation holes on the back for more safe use.
High quality blue backlight LCD screen offers a high-definition display on day or night.
Support RS485 communication.

Specifications:
Accuracy
Voltage/Current:0.5%,
0.2%;Frequency:0.1%;Power,Power Factor:0.5%
Display
4-digit
Input
Nominal
Current
AC5A
Voltage
AC380V
Overload
Continuous: 1.2times; Instantaneous: voltage 2times(10sec.), current
10times(5sec.)
Frequency
50/60Hz±10%
Power Supply
Auxiliary Power Supply
AC220V±5%
Power Consumption
Dielectric Strength
AC2kV
Insulation
Resistance
≥100MΩ
Average Lifespan
≥50,000h
Working Environment
Temperature: -10~55℃;Relative Humidity:≤93%; No corrosive gas;
Altitude:≤2500m

Note:
1, The meter should be connected to power for 15 minutes before use.
2, Protect it against vibration or impact and do not use it in environment of much dust or noxious gas.
3,
Input wire should not be too long. If measured signal input terminal is
too long, please try using twisted-pair shielded wire.
4, If signal has high frequency interference, low frequency filter should be tried using in wire.
5, During long-term storage, please connect it to power for at least 4 hours once every three months.
6, For long-term storage, it should be kept in temperature - 25℃ ~ 55℃ and away from direct light.
7, If meter does not display, please first check  if the voltage of auxiliary power supply is in the normal range.
8, If meter displays abnormally, please check if the input signal is normal and signal terminal are connected tightly.
9, Do not use PT signals as auxiliary power, in order to guarantee the meter can normally work, unless the PT has enough power.
10, Terminals of CT circuits must be connected tightly, ensuring reliable input/output contact.
11, If need to calibrate meter, use calibration instrument which has accuracy better than 0.1%.
Package Includes:
1 x Power Meter
