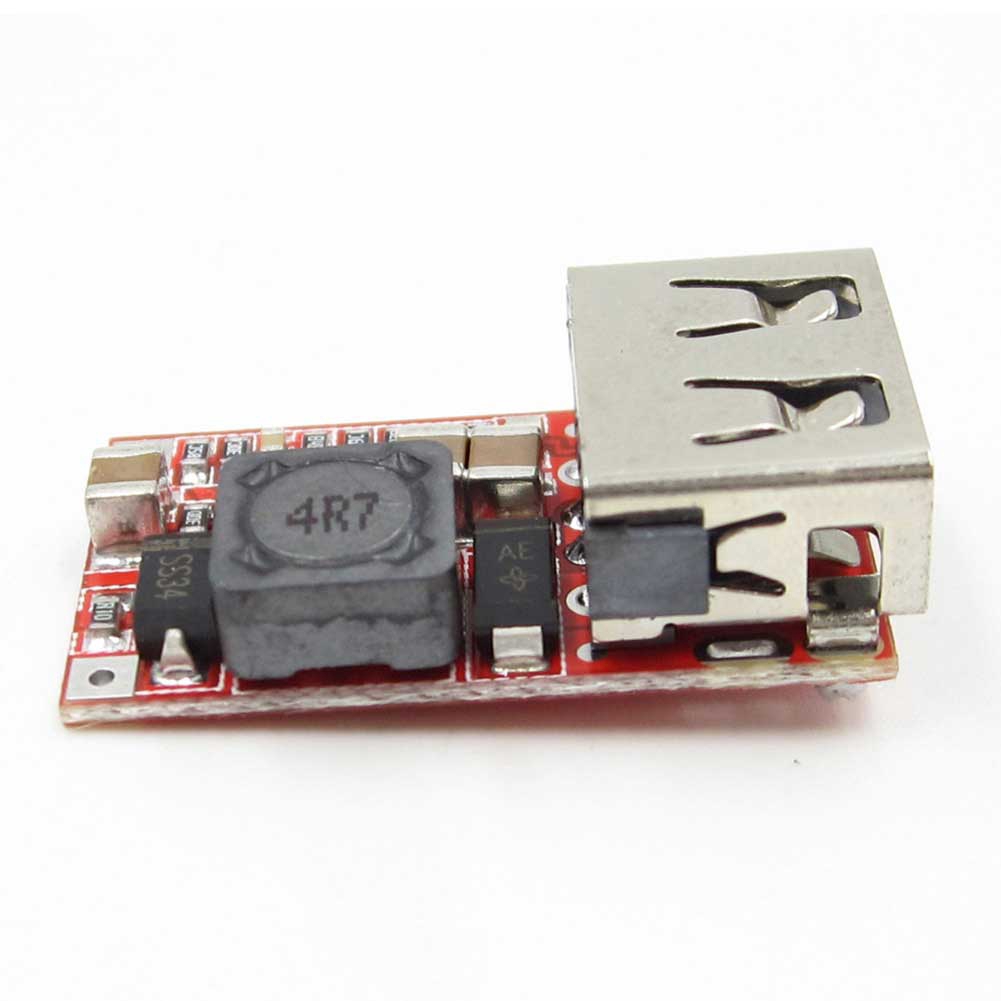

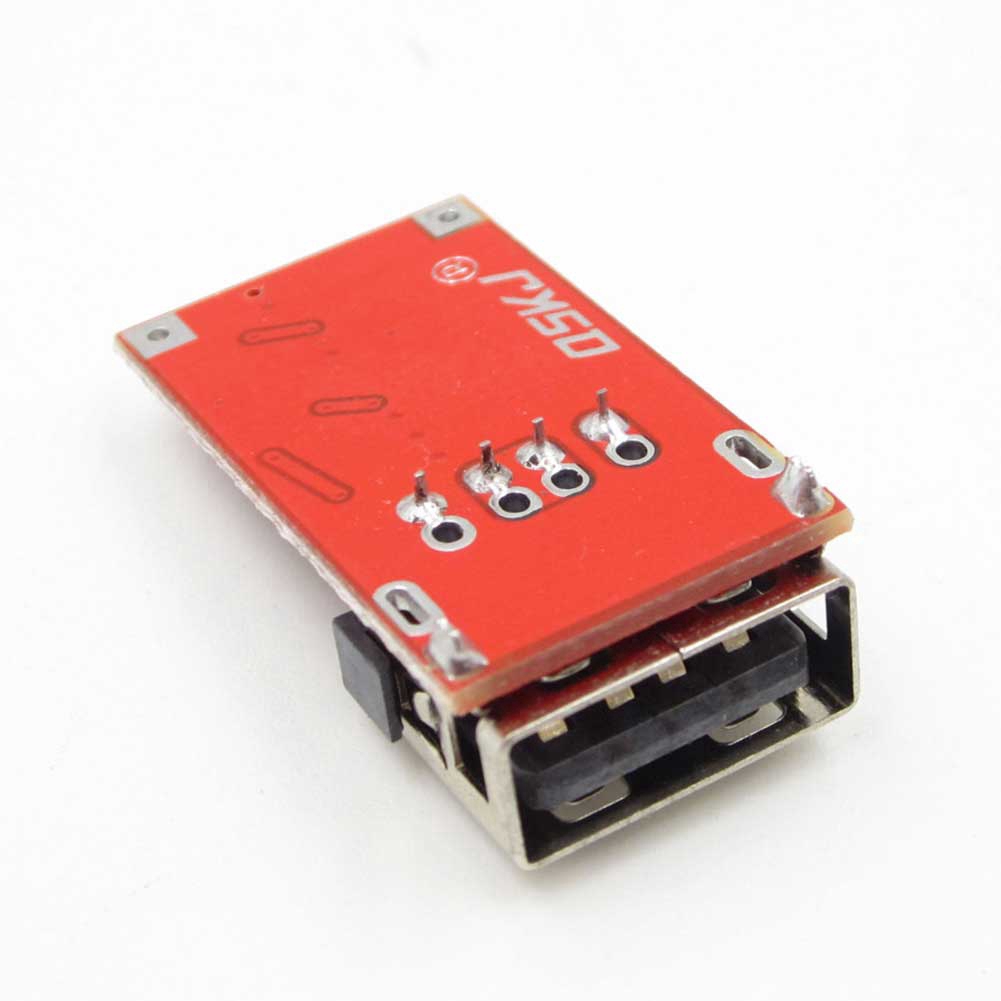

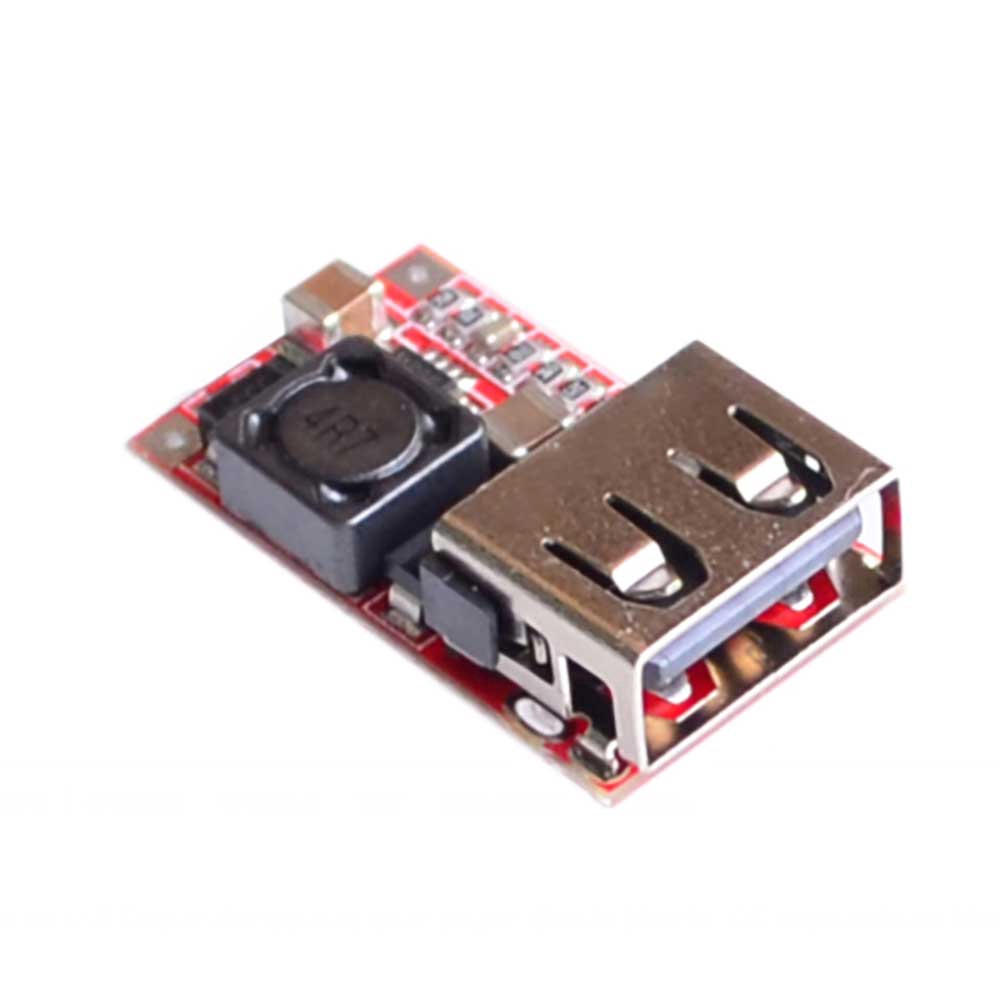

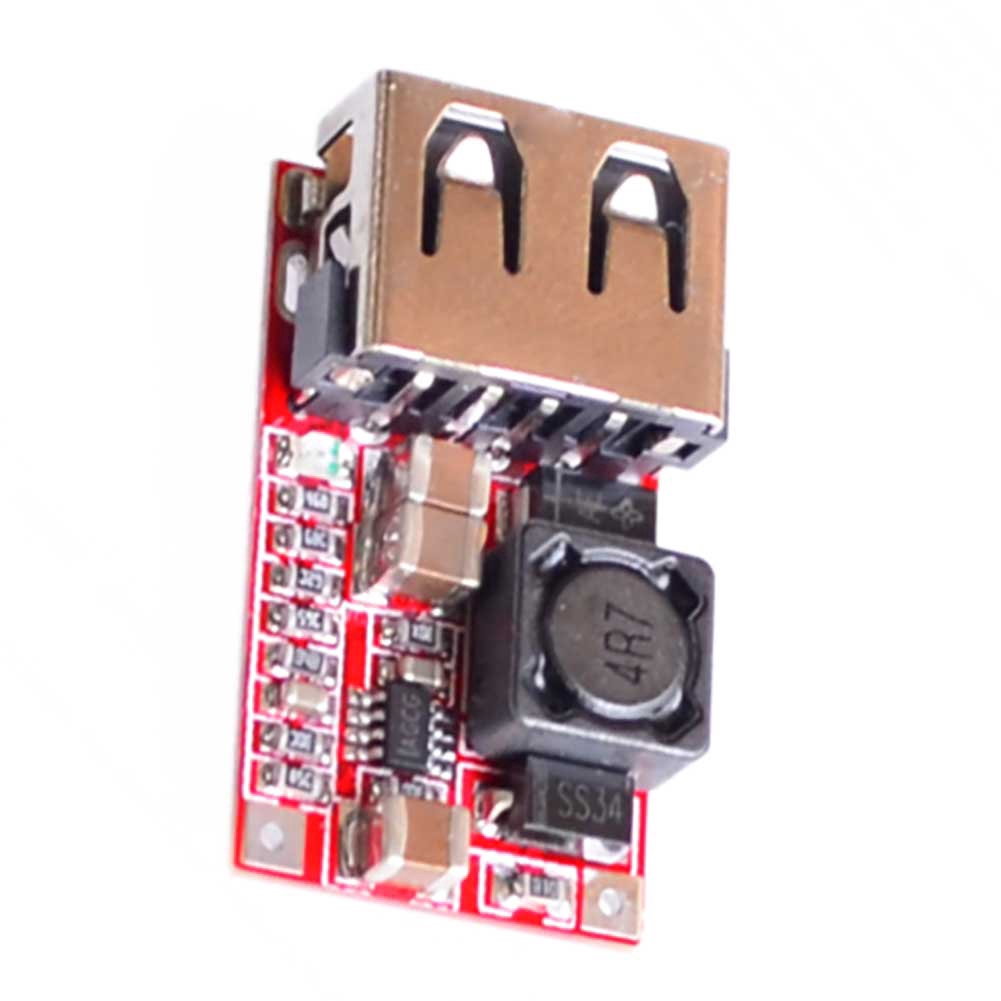

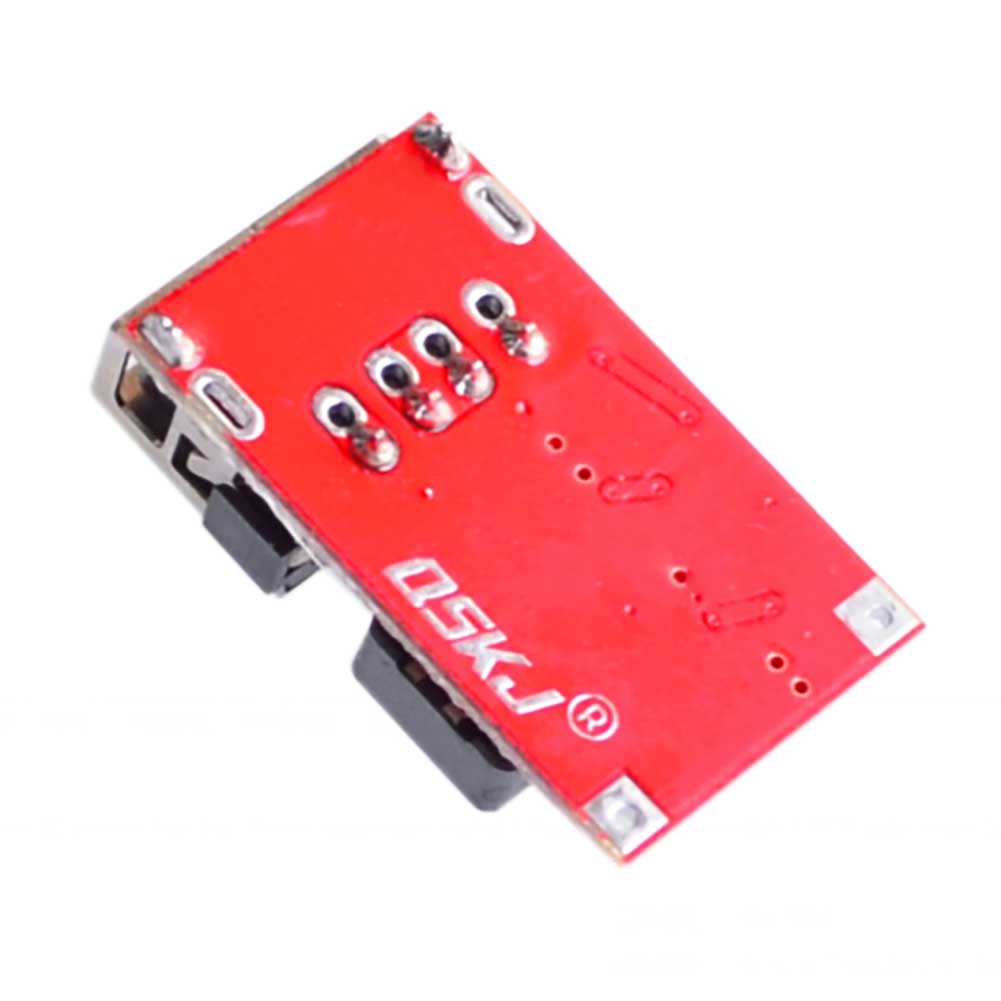

Mô đun hạ áp Usb 6-24 Dc 12 V V V/24 5 E3W9 mini chuyên dụng

Giới thiệu Mô đun hạ áp Usb 6-24 Dc 12 V V V/24 5 E3W9 mini chuyên dụng

product descriptions:
module properties: non-isolated buck module (buck) synchronous rectification
input voltage: dc 6-24v
output voltage: 5.1-5.2v
output current: 3a max
conversion efficiency: can up to 97.5% (6.5v step down to 5v 0.7a) (after short reverse protection and fuses test value)
switch frequency: 500khz
output ripple: 10mv around (12v to 5v3a) 20m bandwidth
output indicator: output voltage indicator is red
operating temperature: industrial grade (-40 celsuis to + 85 celsuis) (the higher the ambient temperature, the lower the output power)
output overvoltage protection: yes, input 1.5a fuse, output 5v have 300w tvs tube clamp protection.
full load temperature: 30 celsuis
static current: 0.85 ma
load regulation: ± 1%
voltage regulation: ± 0.5%
dynamic response speed: 5% 200us
output short circuit protection: yes, but please do not short circuit for a long time
input reverse polarity protection: yes, there is reverse polarity protection diode
connection mode: welding
input mode: welding
output mode: us

package list:
1pcs 5v usb module


sku:ccc9973
