Bộ mô-đun động cơ bước phân khu cao SD6128 cho máy in 3D

Giới thiệu Bộ mô-đun động cơ bước phân khu cao SD6128 cho máy in 3D

__________________♤#Bamaxis ♤____________________
Welcome to my store ,We insist on the lowest price to sell the best quality items

✔Ready to sent✔Good quality✔Best price
★★Surprises for you★★
❤Follow shop/ “Like” Items: Priority Shipping & Free Gift
❤PS: If you want a free gift, please send me the screenshot that you follow my shop and leave a message on your order.

Features:
1. Driver Chip:THB6128 with over current and over temp protection.
2. Made with 4 Layer RoHS PCB, strong and durable.
3. 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64 and 1/128 Microstepping.
4. Larger sink mounting area.

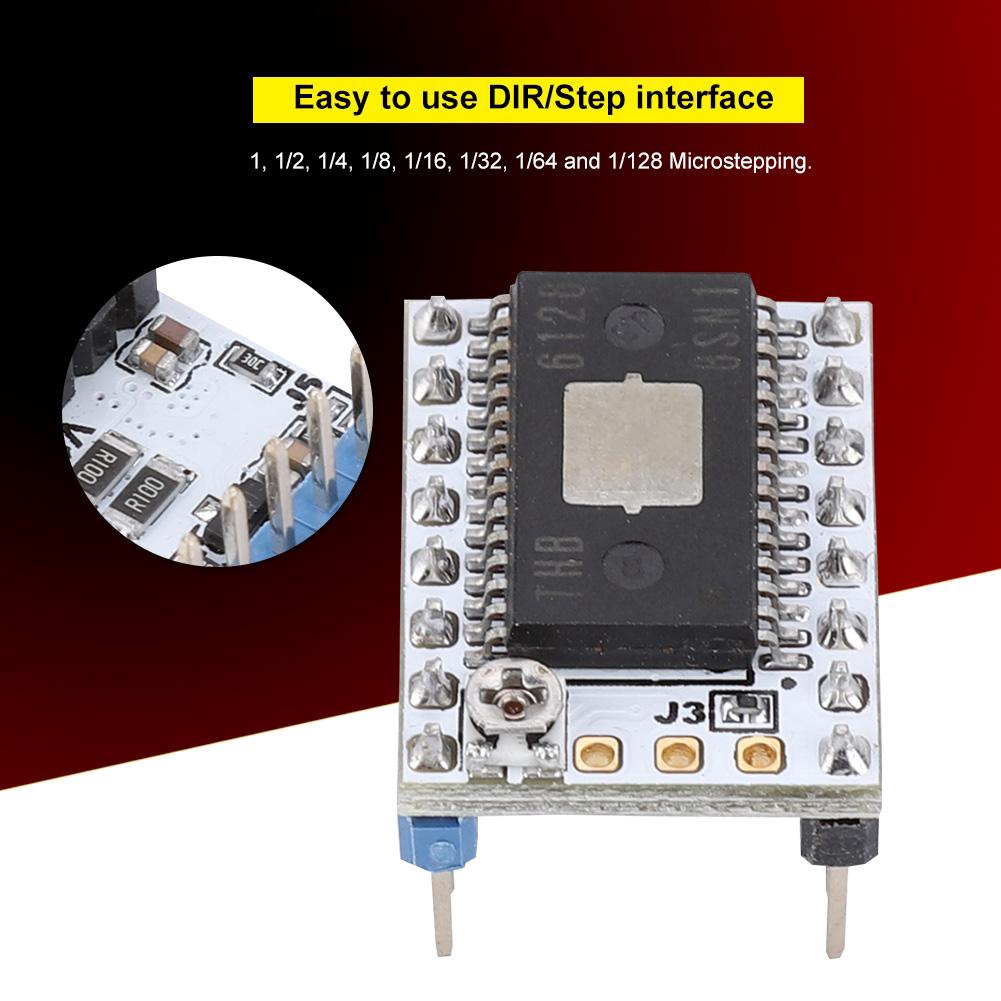

5. Easy to use DIR/Step interface.

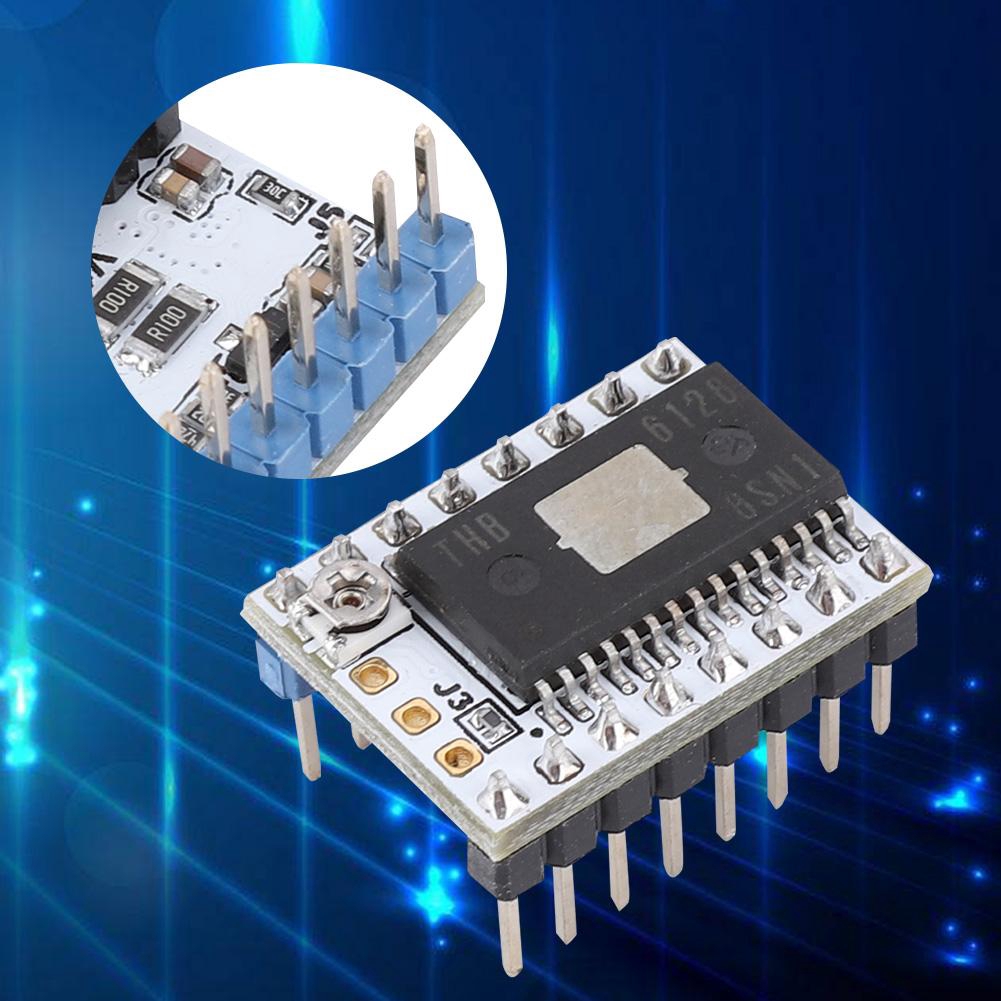

6. Top mounted pad, this makes sinking a lot easier and does not rely on the already small PCB area for dissipation.
7. Output pins for Decay and external Vref.

Specification:
Current Motor Supply : 2.2A max
Motor Voltage: 35V max
Size: 2*1.5*1cm/0.79*0.59*0.39in
Colo: Blue

Package List:
1 * SD6128 Stepper Motor Driver
1 * Heatsink
1 * Screwdriver
Warm Tips:
1. Static sensitive - Handle with care, remove from packaging only when ready to mount.
2. Check mounting orientation before inserting. Drivers will be damaged when improperly inserted, can potentially damage host controller too.
3. Turn off power when connecting/disconnecting motors, do not insert driver when main board is powered.
4. Chip, pad and sink can get really hot, avoid touching while in operation.
5. Install sink with adhesive thermal pad, ensure that it does not come in contact with pins or any other conductive part of the board.
Note:
1. The SureStepr SD6128 is a stepper driver board based on the THB6128 chip. It is simple to use and operate using an indexer (DIR/STEP) interface to move the stepper motors.
2. The SD6128 is a drop-in replacement for Pololu style footprint drivers including the SD8825, A4988, A4983 and Stepsticks.
3. One distinct feature of the SD6128 is that pad is located at the top of the chip. This makes sinking a lot easier and does not rely on the already small PCB area for dissipation.

#StepperMotor #SD6128StepperMotor #3DPrinterMotor #3DStepperMotor #StepperMotorModule
