Mô Đun Điều Khiển Máy Nghe Nhạc Mp3 Mp3 Hỗ Trợ Micro Sd / Sdhc Cho Arduino / Avr / Arm / Pic 3.2-5.2v Dc

Giới thiệu Mô Đun Điều Khiển Máy Nghe Nhạc Mp3 Mp3 Hỗ Trợ Micro Sd / Sdhc Cho Arduino / Avr / Arm / Pic 3.2-5.2v Dc

YX5300 UART TTL Serial Control MP3 Music Player Module Support MP3 / WAV Micro SD /SDHC Card For Arduino/AVR/ARM/PIC 3.2-5.2V DC

product manual
YX5300-24SS is a voice chip that provides a serial port, which perfectly integrates the hard decoding of MP3 and WAV. A simple serial port command can be used to complete the playback of the designated voice, and how to play the voice and other functions, without cumbersome underlying operations, easy to use, stable and reliable is a major feature of this product. No need for any burner, no software, USB directly burn FLASH.

Features
1. 24-bit DAC output, dynamic range support 90dB, signal-to-noise ratio support 85dB
2. Support 16M bytes of SPIFLASH. For example, W25Q16[2M bytes], W25Q128[16M bytes]
3. Multiple control modes, parallel port control mode, serial port mode, AD button control mode
4. Miniusb interface updates the voice file without installing any software. Support XP and WIN7 system.
5. Support the combined playback function, which can realize the time and temperature reporting, and to a certain extent can replace some expensive TTS solutions
6. Comes with a 3W power amplifier, which can be played by connecting directly with a speaker
7. Support 8 segments of voice trigger playback, IO detection method, so it is suitable for carbon film buttons and other occasions
8. It can simultaneously support U disk, TF card and SPIFLASH as storage media

Product parameter
Support sampling frequency (kHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48
Support file format: MP3/WAV
Compatible with Micro SD card, Micro SDHC card
30 levels adjustable volume
UART TTL serial control play mode, the rate is 9600 BPS baud
Power supply: 3.2~5.2VDC
Size: 43mm x 25mm

packing list
1 * YX5300 UART music player module

DEAR BUYER :
※🔔When You received goods, if the products broken or not satisfy with it, please Contact with us, please do not leave a negative feedback, We will try our best to solve it for you properly, Thank you!
※🔔Due to different cameras lens setting and lighting . it may has some color difference from the real item,Hope you can understand.
※🔔All the variation you can choose are available.
※🔔1-3cm error due to manual measurement,hope you can understand

#YX5300 #UART #TTL #Serial #Control #MP3 #Music #Player #Module #Support #WAV #Micro #SD #SDHC #Card #Arduino #AVR #ARM #PIC #DC

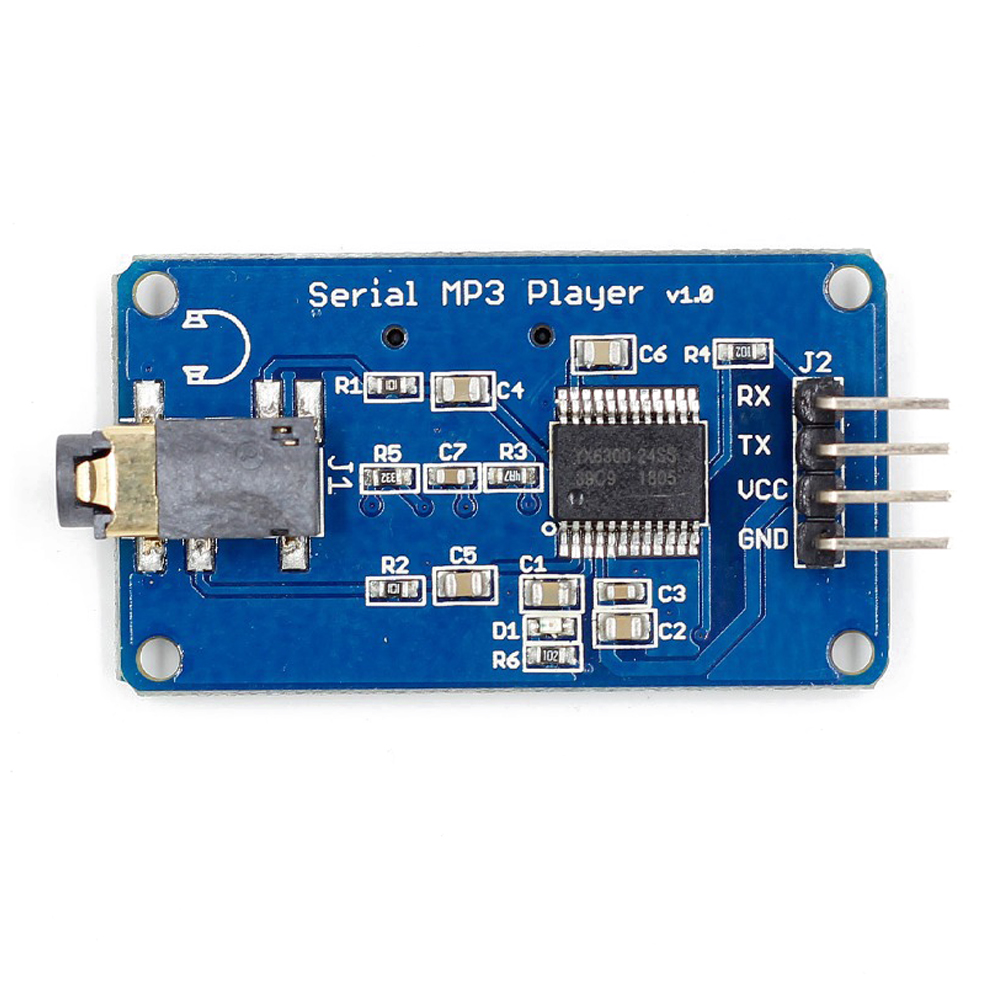

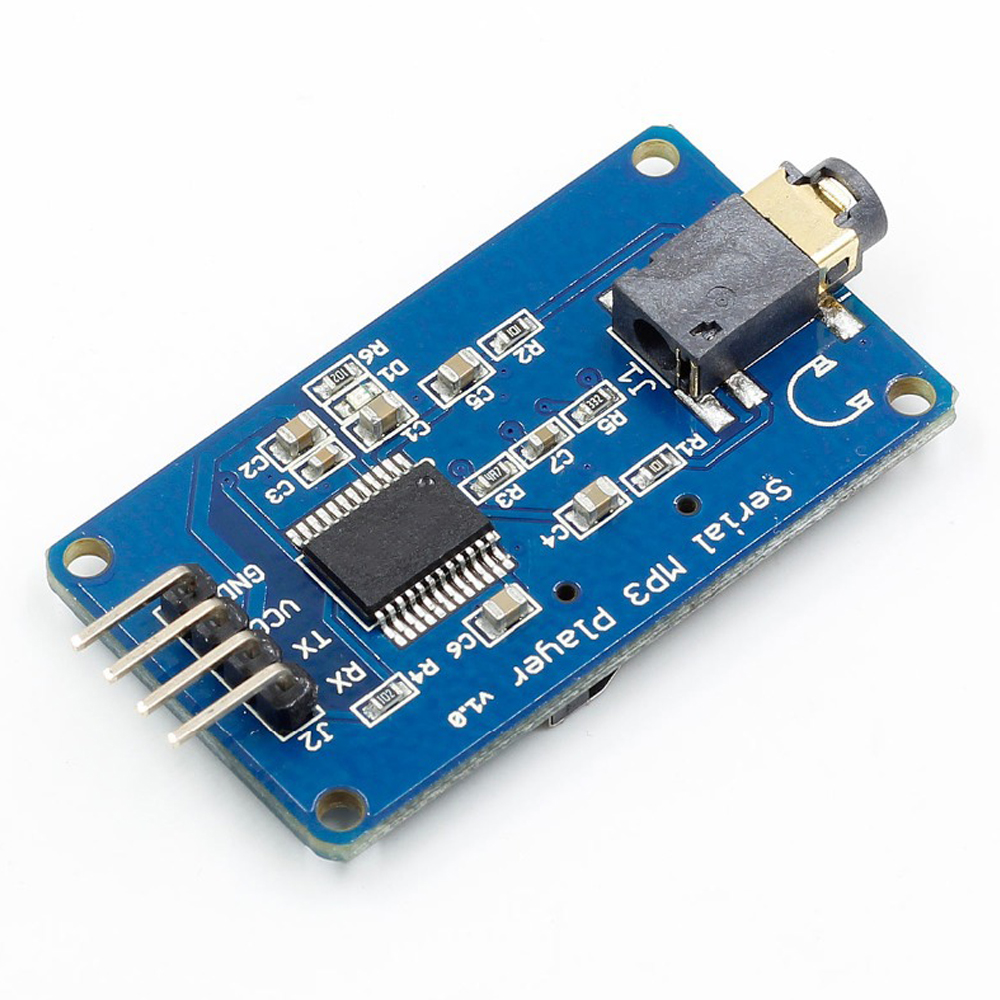

Hình ảnh sản phẩm
