Mô Đun Điều Khiển Động Cơ Bước Tmc2208 V1.2 Kèm Chìa Vặn Cho Máy In 3d

Giới thiệu Mô Đun Điều Khiển Động Cơ Bước Tmc2208 V1.2 Kèm Chìa Vặn Cho Máy In 3d

Welcome to 🌱bestwayshop🌱
If u want to know more about our products,pls follow us, click #bestway

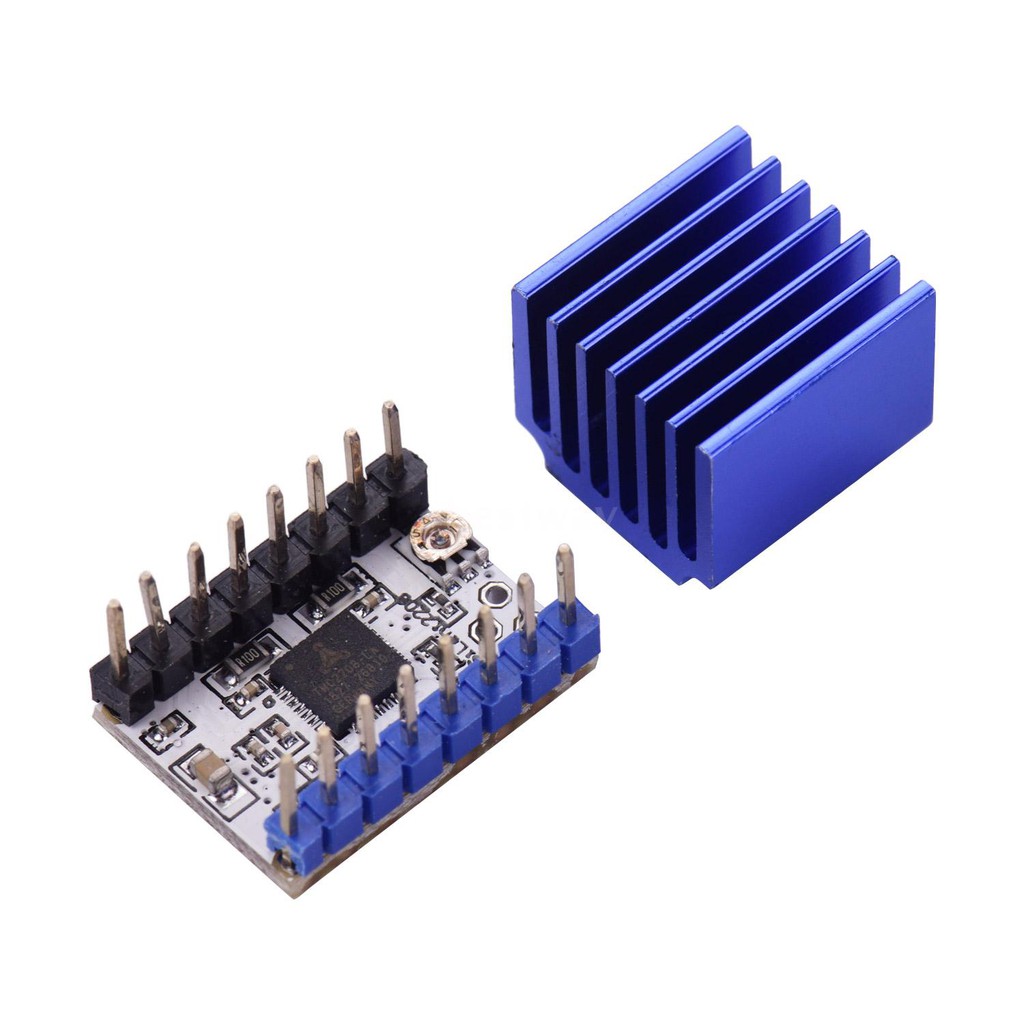

5pcs TMC2208 V1.2 Stepper Motor Driver Module with Heat Sink Screwdriver for 3D Printer


Features:
TMC2208 is an ultra-quiet two-phase stepper motor driver chip with continuous drive current of 1.2A, peak current of 2A, voltage range of 4.75-36V, 256 subdivision.
The flexible microplyer interpolation unit provides up to 256 subdivisions, perfect for sinusoidal control even in systems with limited pulse frequency.
Since the stealthChop2 ultra-quiet technology is widely used in 3D printing, the design of these components is also compatible with existing 3D printer electronics, eliminating the costly cost of redesign.
With a standard step / dir interface, it is simple and convenient to use. Configuration is achieved through digital input.
The TMC2208 driver module can replace the original TMC2100, A4988, DRV8825, LV8729.

Specifications:
Motor Voltage: 4.75-36V
Interface Input Voltage: 3-5V
Subdivide: 256
Interface: Step/ dir
Item Size: 2 * 1.5 * 1cm/ 0.78 * 0.59 * 0.39in(each)
Item weight: 2g/ 0.07oz(each)
Item Size: 12 * 8 * 1.5cm/ 4.7 * 3.1 * 0.6in
Item Weight: 34g/ 1.2oz

Package List:
5 * TMC2208 V1.2 Driver Module
5 * Heat Sink
1 * Screwdriver

Hình ảnh sản phẩm

Giá $MIHARU
