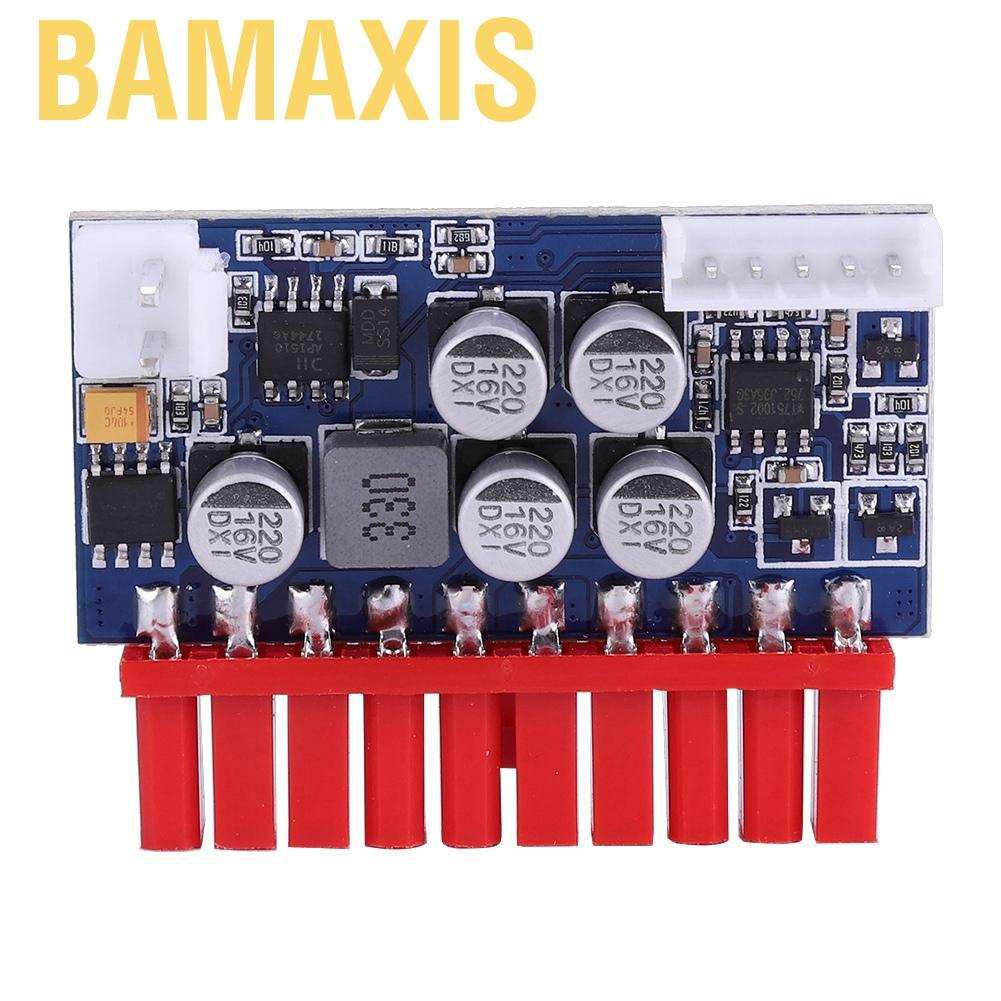

Mô Đun Cung Cấp Nguồn Điện Bamaxis Dc-Atx 1u Chuyên Dụng

Giới thiệu Mô Đun Cung Cấp Nguồn Điện Bamaxis Dc-Atx 1u Chuyên Dụng

__________________♤#Bamaxis ♤___________________
Welcome to my store ,We insist on the lowest price to sell the best quality items

✔Ready to sent✔Good quality✔Best price
★★Surprises for you★★
❤Follow shop/ “Like” Items: Priority Shipping & Free Gift
❤PS: If you want a free gift, please send me the screenshot that you follow my shop and leave a message on your order.

Features:
1. Adopt industrial solid capacitor, ideal for being used in harsh environment.
2. High performance with high heat-stand feature, more reliable.
3. Without fan for 100% mute working.
4. Compact design, special for mini-itx and 1U case.
5. Modules can reach 90W, and it must be accompanied by the power adapter.
6. 100% brand new and high quality.

Specifications:
Condition: 100% Brand New
Size: Approx. 35 * 47 * 12 mm / 1.3 * 1.8 * 0.4 in (Wire NOT INCLUDED)
Input Voltage Range: 12VDC plus or minus 5%
Output Power: 90W
Work Efficiency: 90% or greater
Output Characteristics:
Output Voltage
Minimum(V)
Maximum(V)
Ripple wave(mV)
Standby Current
Unloading
Maximum load
+3.30V
+3.14
+3.47
50MAX
4.0
+5.00VSB
+4.75
+5.25
50MAX
0.1
2.0
+5.00V
+4.75
+5.25
50MAX
4.0
+12.00V
+11.40
+12.60
120MAX
4.0
-12.00V
-10.80
-12.60
120MAX
0.05
Working Temperature/Humidity: 0°C to 55°C / 45% - 75%
Storage Temperature/Humidity - 40°C to +70°C / 10% - 90
Applications: MINI computer, HTPC computer, POS machine, ITX box, network server, advertising machine, bank terminal, low power consumption system, industrial control system, etc.

Package Included:
1 x Power Module
Notes:
1.Please allow 1-3 cm error due to manual measurement. Thanks for your understanding.
2.Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
