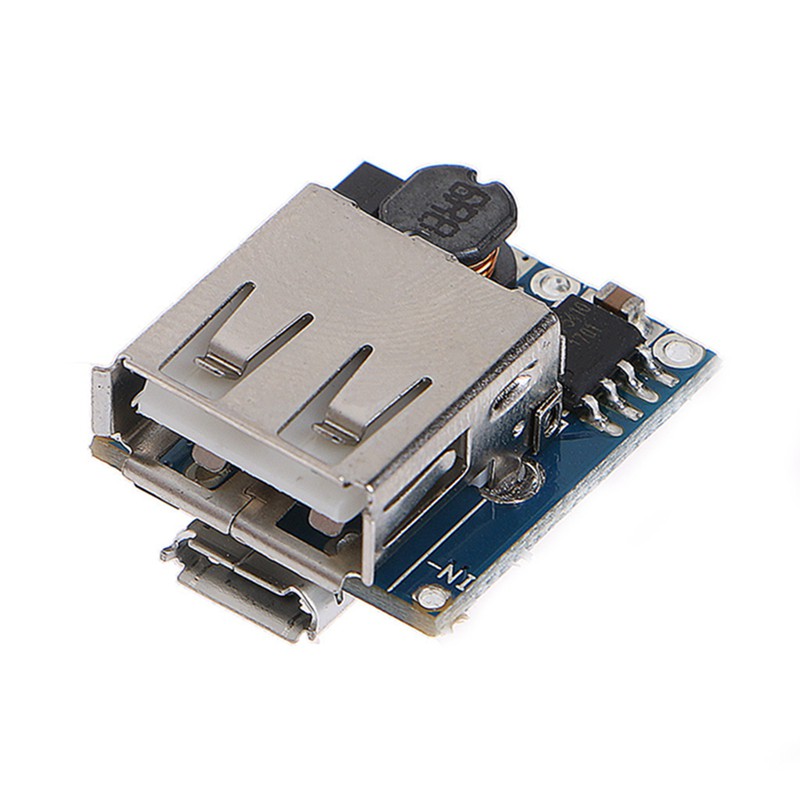

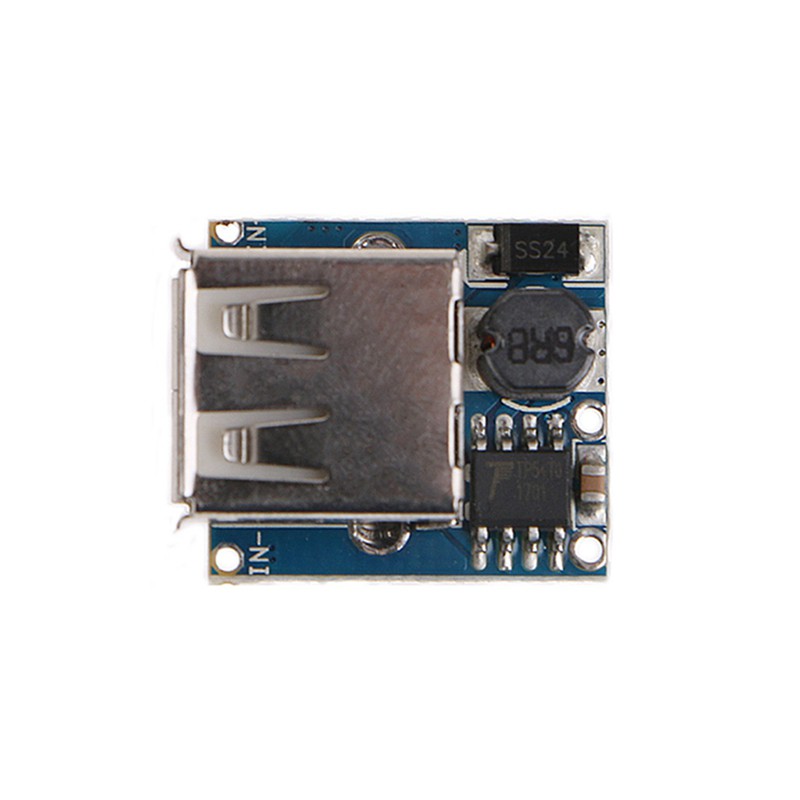

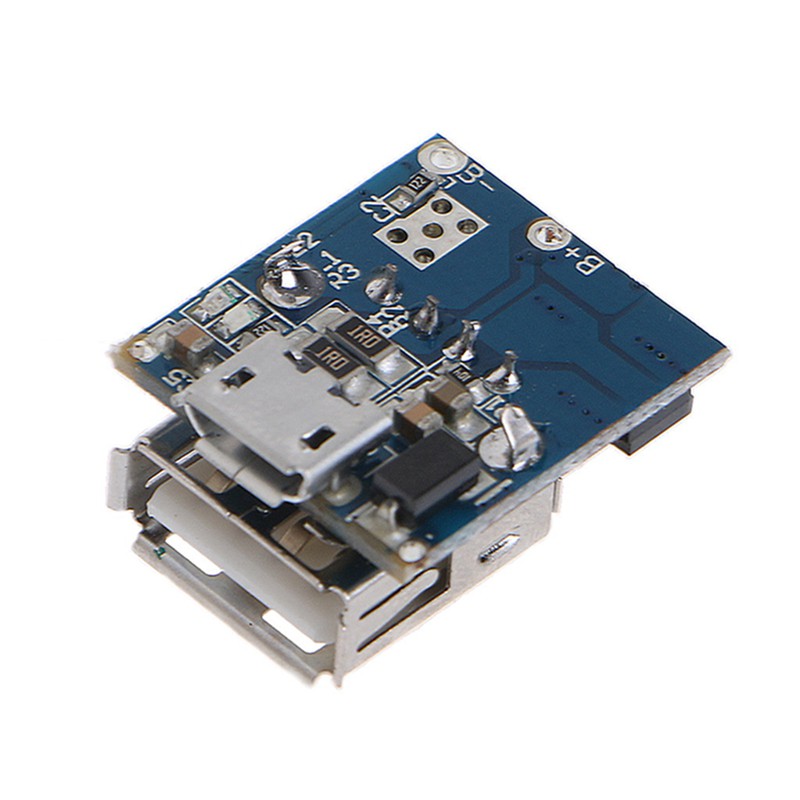

Bản Mạch Sạc Pin Lithium 5v 1a 1.2a

Giới thiệu Bản Mạch Sạc Pin Lithium 5v 1a 1.2a

Features:
-Small Volume: 2x1.7cm/0.79x0.67inch
-Complete Function: boosting,lithium battery charging,undervoltage protection,output short circuit protection,cellphone charge identifying circuit
-Superlow Static Current:whole circuit only consumes 0.1MA without connecting load;don't need manual operation;It will standby if without load,and only consumes electricity 0.1MA
-Circuit has high integration level;external circuit is simple,so it has high reliability

Specifications:
-Charging Voltage/Current:DC 5V/1000mA(when charging,red light is on;when fully charged,green light is on )
-USB Output Voltage/Current:DC5V/1200mA(please don't connect more than 1200mA appliances for long time )
-Charging Interface:Micro USB port
-Size: 2x1.7cm/0.79x0.67inch
Quantity: 1 Pc
Note:
-Don't use output to connect more than 1200mA devices;otherwise,PCB will burn
-Please connect battery with B+,B- two ports;the polarity must be right,transposition will burn the chip
-Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
-Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Contents:
1 Pc x Charger Board Module

Hình ảnh sản phẩm
