Bộ Điều Khiển Động Cơ On-Off Pwm12V24V48V 775

Giới thiệu Bộ Điều Khiển Động Cơ On-Off Pwm12V24V48V 775

___________________* ❤❤ * ujewndju* ❤❤ * ___________________
Welcome to our store, we insist on the lowest price to sell the best quality items.
✔Ready Stock ✔Wholesale Price ✔Quality Checked

☀️☀️ Surprises for you ☀️☀️
☞Shop Voucher: Get More Discount
☞Follow Shop: Free Gifts
✈Shipping in 1 day
Tip: If you want a free gift, please send me the screenshot that you follow my shop

☀️☀️ Attention ☀️☀️
❀We will be based on your guests in your country to send the corresponding adapter plug.
➷Wholesale retailers are welcome to negotiate long-term business with us! #ujewndju

_______________❀Product Information❀______________



Feature:

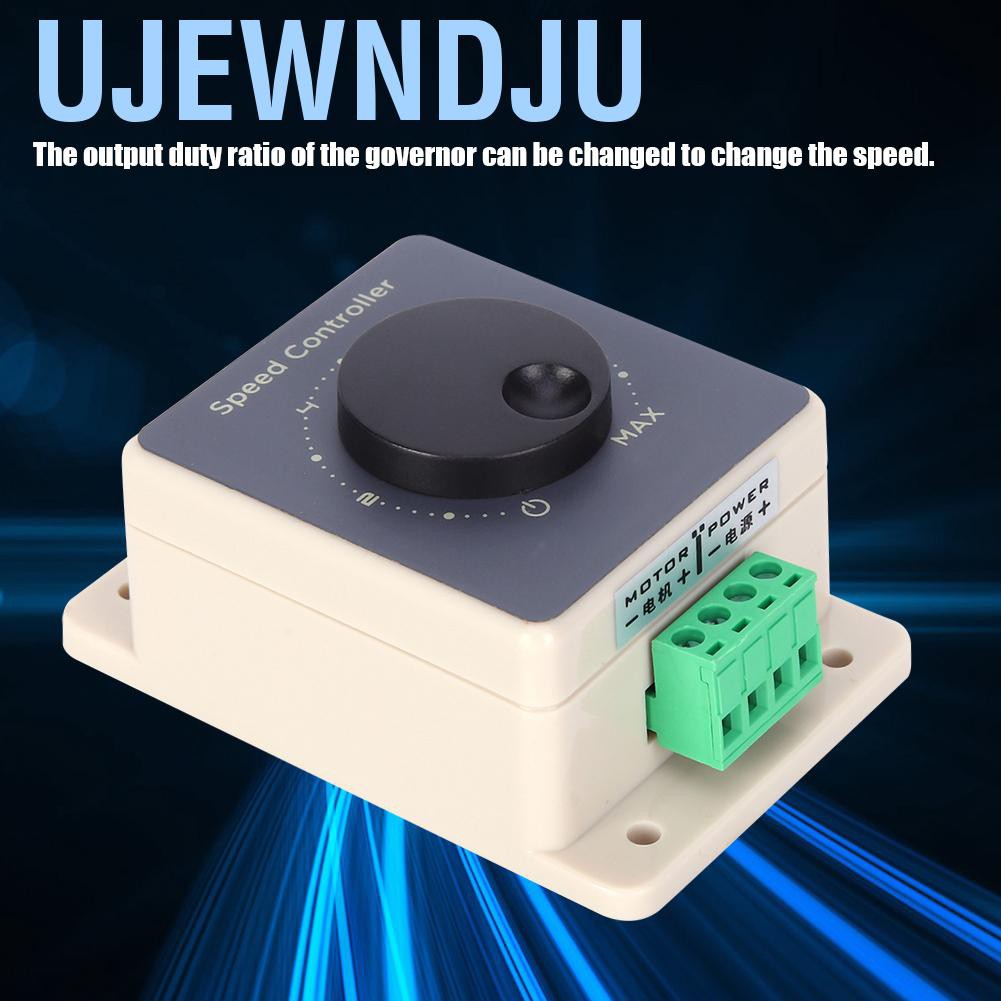

1. The potentiometer knob can change the duty cycle of the governor output to change the motor speed.
2. Widely used in industries such as CNC machine tools, papermaking and printing, textile printing and dyeing, and optical cable and cable equipment.

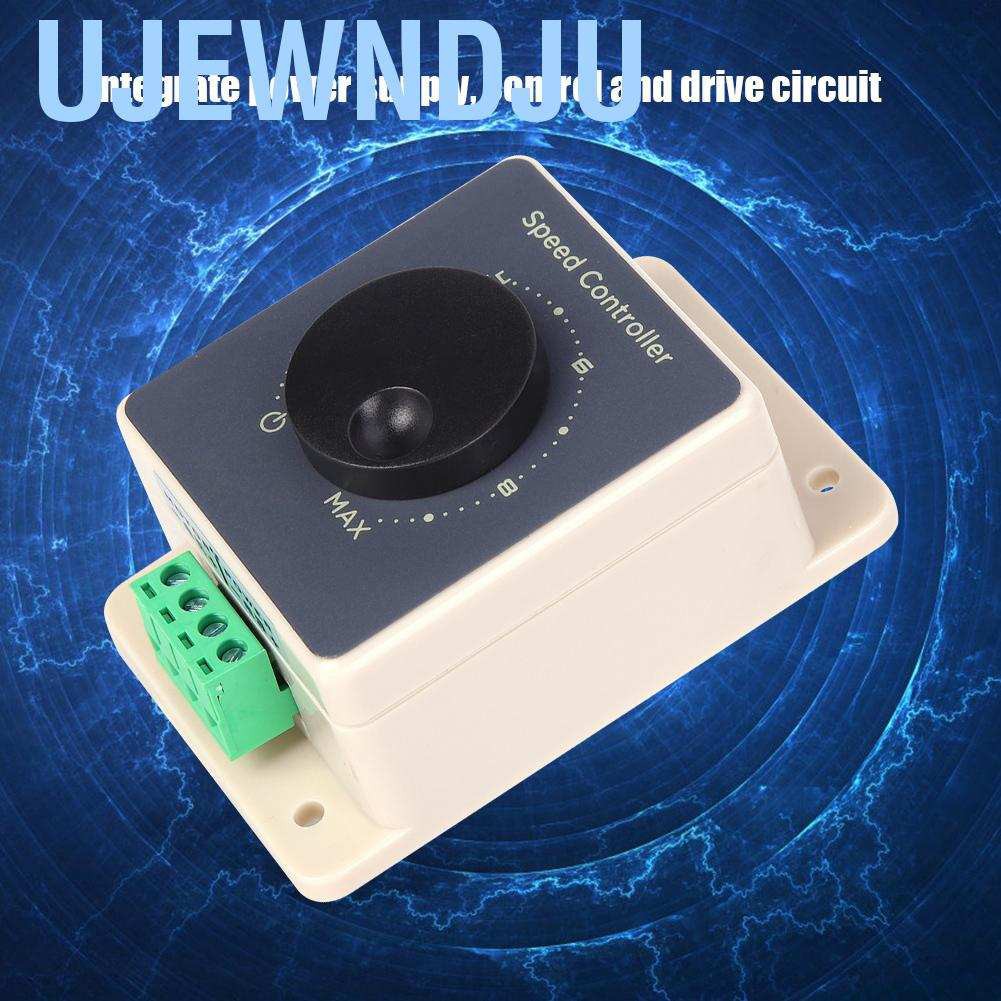

3. A modular DC motor speed controller that integrates power supply, control and drive circuits
4. The three‑dimensional structure is adopted, the control circuit adopts micro‑power components, and the photocoupler is used to realize the isolation and conversion of current and voltage.
5. The speed governor is small in size and light in weight, and can be used alone or directly installed on a DC motor to form an integrated DC speed regulating motor

Specification:
Item Type: DC Motor Speed ControllerTechnical Parameter: Model: CCM96SK

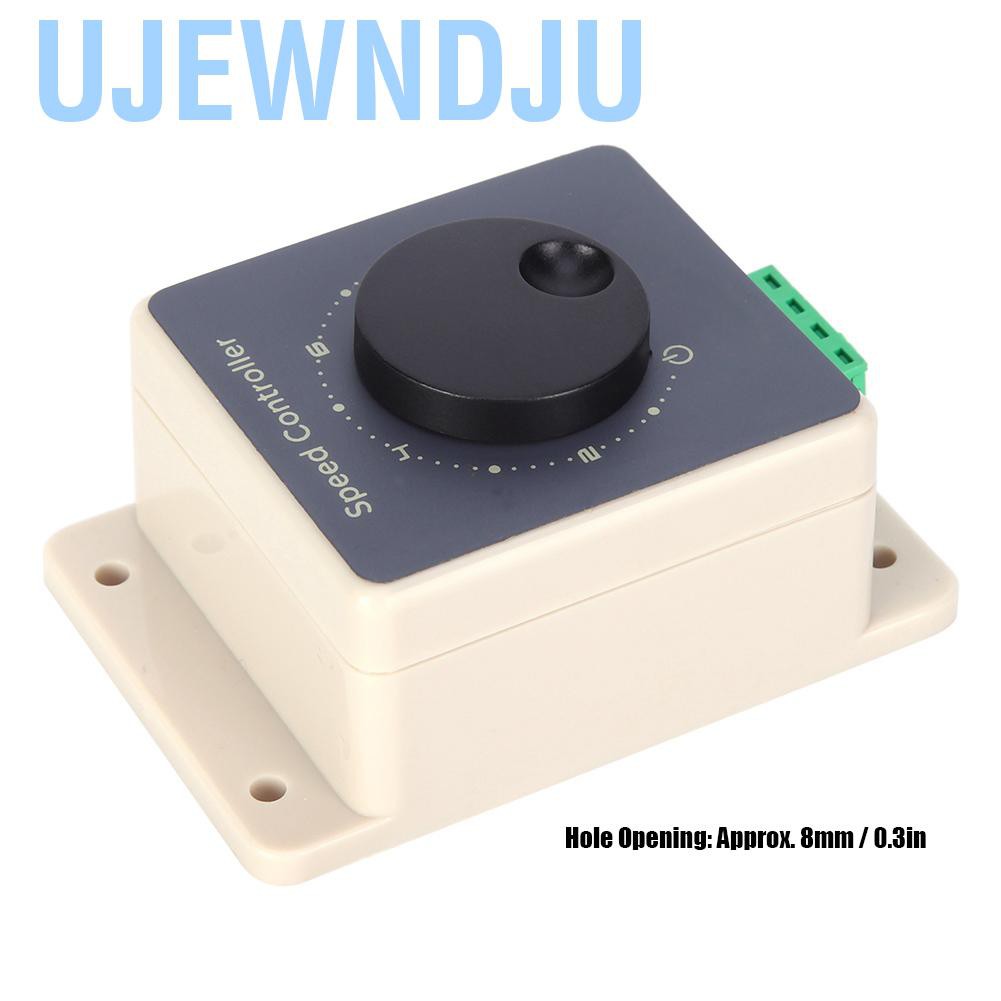

Potentiometer: Resistance Value B100K; Opening: Approx. 8mm / 0.3in
Input Voltage: DC10-60V
The Output Voltage is The Input Voltage: Approx 0-100%
Control Power: 12V x 10A=120W, 24V x 10A=240W
Rated Current: 10A
Maximum Current: 20A
Speed Adjustment Range: 5%-100%
PWM Frequency: 25kHz

Package List:
1 x Speed Controller

Note:
Precautions and instructions for use:
1. The input of the DC motor speed controller is direct current, and cannot be directly connected to alternating current (such as household 220V alternating current), otherwise it will burn out
2 The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged.
3. The motor can be positive or negative, when the running direction is inconsistent with the expectation. The direction can be changed by adjusting the line sequence.
4 Adjust the potentiometer knob to change the duty cycle of the governor output, thereby changing the motor speed.
