Bộ Điều Khiển Động Cơ 24v 250w Cho Xe Đạp Điện E-Bike

Giới thiệu Bộ Điều Khiển Động Cơ 24v 250w Cho Xe Đạp Điện E-Bike

[New Arrival]
Welcome to our Store !
◎ Products are READY STOCK.Items Shipped From China.1~3 Days to Prepare item When We Receive the Order.7~15 days to deliver of working day
◎ Follow Us To Get The Latest Promotion Information
24V 250W E-Bike Scooter Brush Motor Controller for Electric Folding Bicycle Accessories
Specification:
Material: aluminum alloy body
Color: Silver
Body size: about 80x60x35mm/3.15*2.36*0.14in
Net weight: About 120g
Working voltage: 24 V
Power: 250W
Speed regulating handle: 1-4V
Brake handle: mechanical normally open
Under voltage protection: 20V

Controller wiring instructions:
For the motor to work, at least four connectors must be connected.
First, the two thicker ones on the controller are the blue and white wires connected to the motor (blue positive/white negative), the blue wire is connected to the red wire of the motor, and the white wire is connected to the black wire of the motor.
Secondly, the two thicker red wires and black wires of the controller are connected to the battery, the red wire is connected to the positive electrode of the battery, and the black wire is connected to the negative electrode.
Third, connect the connector of the speed control handle (the speed control handle has three wires, and the red wire must be connected to the red wire and the black wire to the black wire). The wire with the red plastic head is connected to the electric door lock, open the electric door lock, and the motor can run by turning the handle.
Blue plastic head connected to brake light
White plastic head, black + yellow wire to brake
Black plastic head connected with indicator light

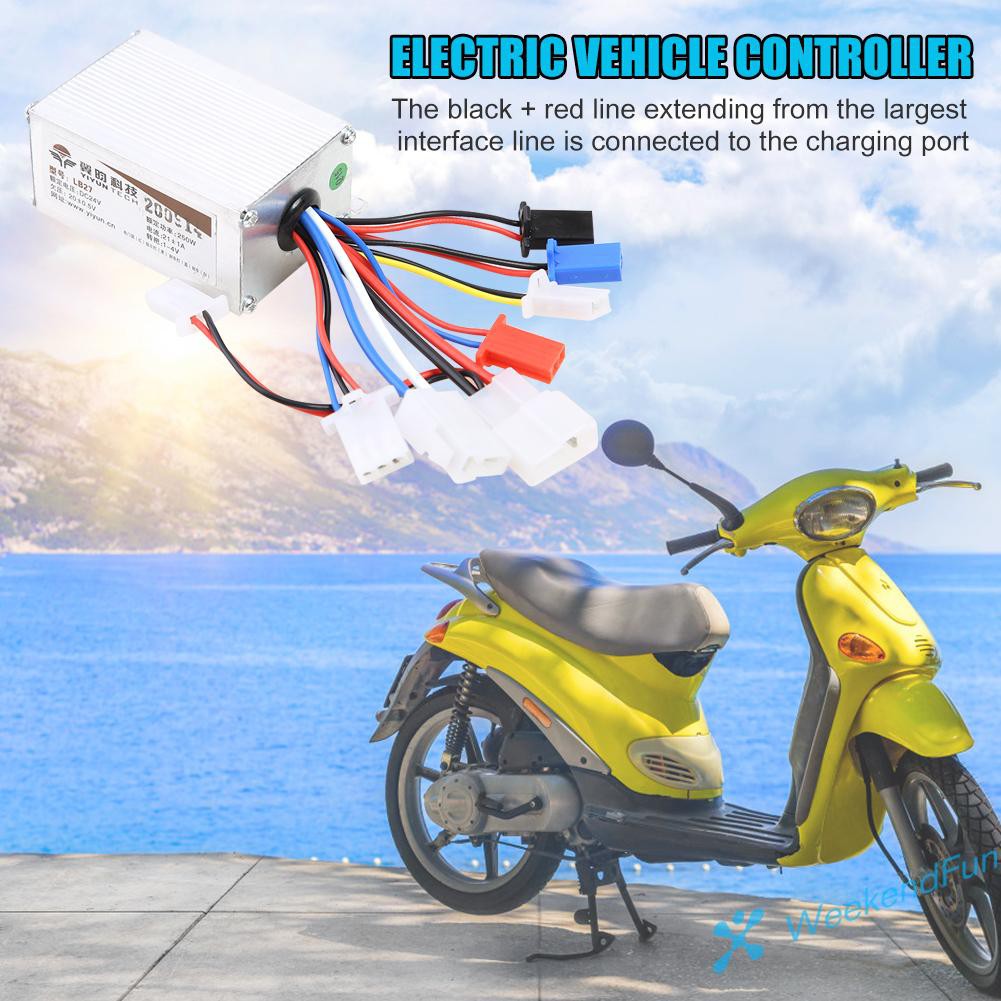

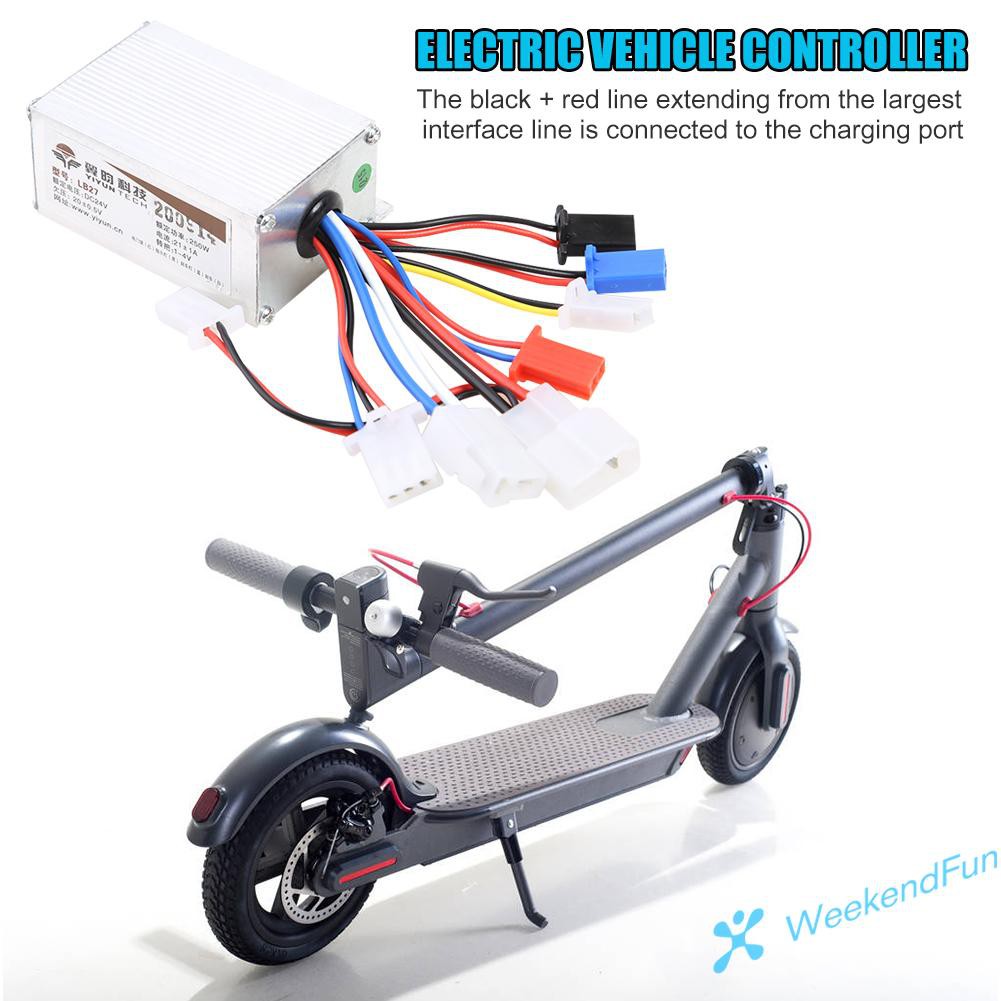

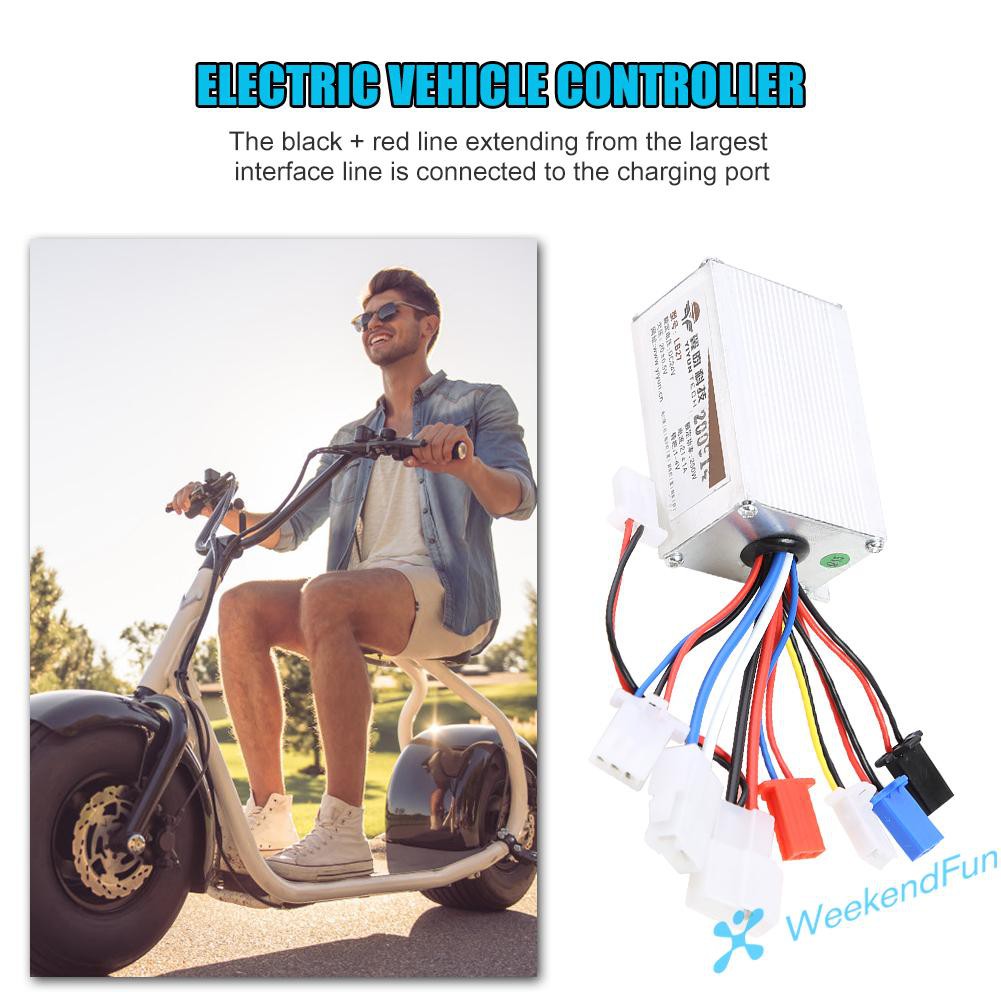

The black + red line extending from the largest interface wire is connected to the charging port

Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.


Included:

1 x Brush Controller
