Bộ Điều Hợp Wch382 Chipet Pci-E 2 Cổng Pci Express Sang Rs232 Com Cho Máy In, Máy In

Giới thiệu Bộ Điều Hợp Wch382 Chipet Pci-E 2 Cổng Pci Express Sang Rs232 Com Cho Máy In, Máy In

WCH382 Chipset
Fully Compliant with PCI-Express Base Specification, Revision 1.0a
PCIe Multi Function Peripheral Controller with x1 Lane Interface
Support for D1, D2, D3hot and D3cold
Supports PCIe Power Management
Serial Ports:
16C450/550/Extended 550 Compatible UARTs
Supports RS232, RS485 & RS422 es
Bi-directional Speeds from 50 bps to 16Mbps/Port
Full Serial em Control
Supports Hardware, Software Flow Control
5, 6, 7, 8 and 9-bit Serial Format Supported
Even, Odd, None, Space & Mark Parity Supported
Custom BAUD Rates Supported with External Clock or by Programming Internal PLL
On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port
Supports Remote Wake-up and Power Management Features
Serial Port Transceiver Shutdown Supported
Supports Slow IrDA on All Serial Port
Windows 7 32/64-bit
Vista 32/64-bit
Windows XP 32/64-bit
Windows 2000
Linux Kernel 2.6.11 & Above
Mac 10.4 & Above
Compliant with PCI - Express 1.0 a standard
PCI-Express rate 2.5Gb/s full duplex channel
Support plug and play
Serial interface RS-232
Compatible with standard 16c550 UART and 256-byte transmit and receive FIFO
High-speed data transfer rate up to 250k / sec
Support RS-232 hardware flow control
Data bit length: 5, 6, 7, 8
Check method: None, even, odd, space, mark
Stop bit length: 1,2
Color:black
Material:PCB

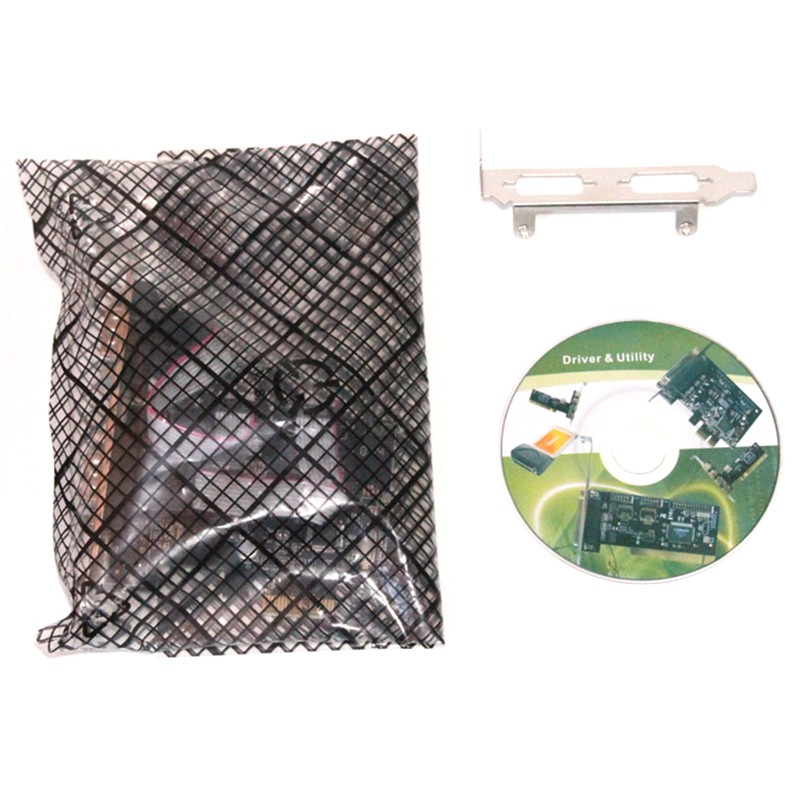

Package Contents:

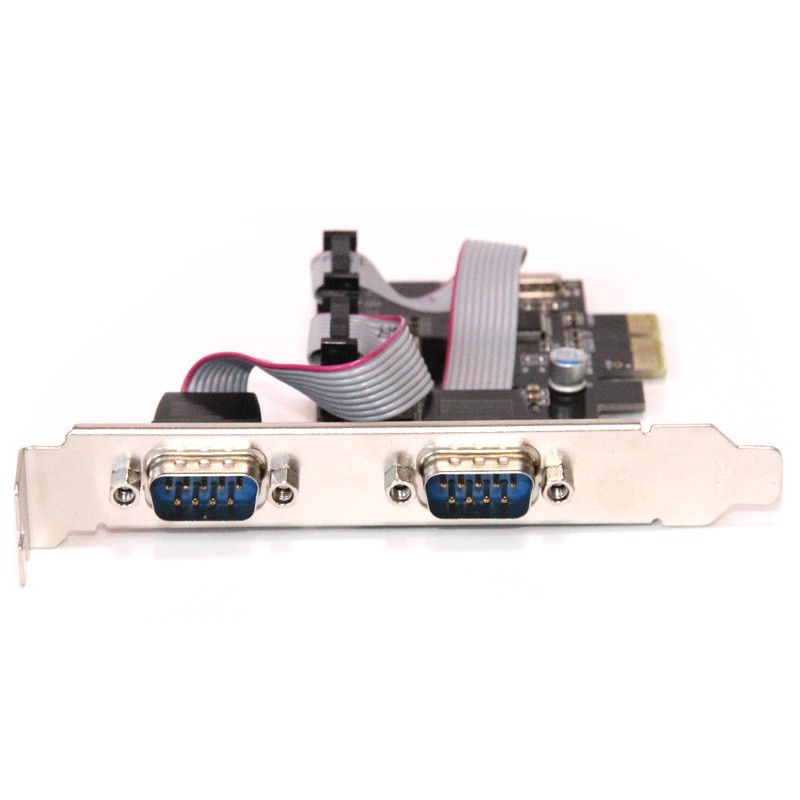

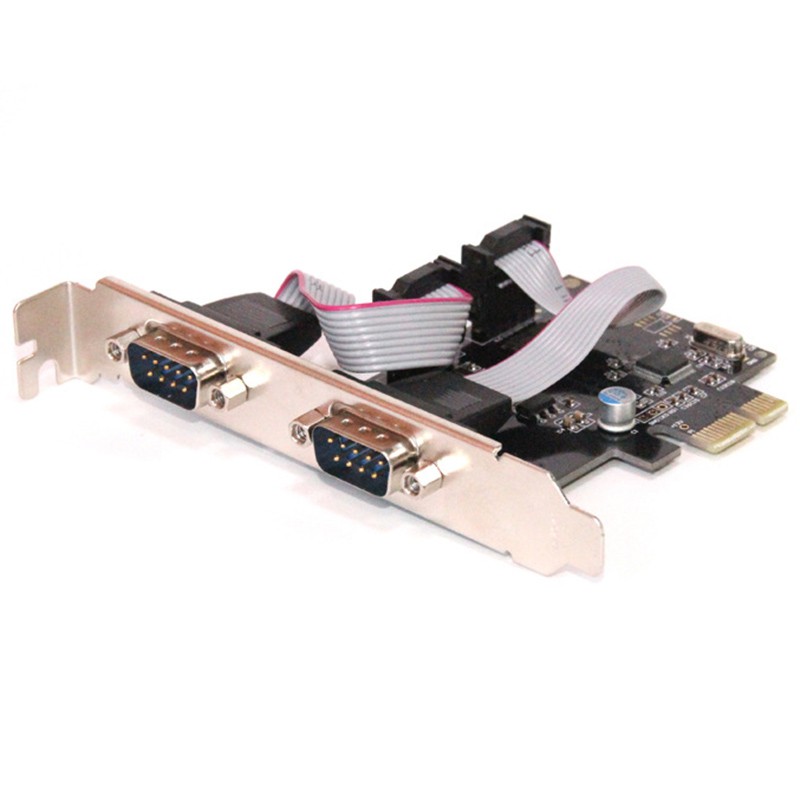

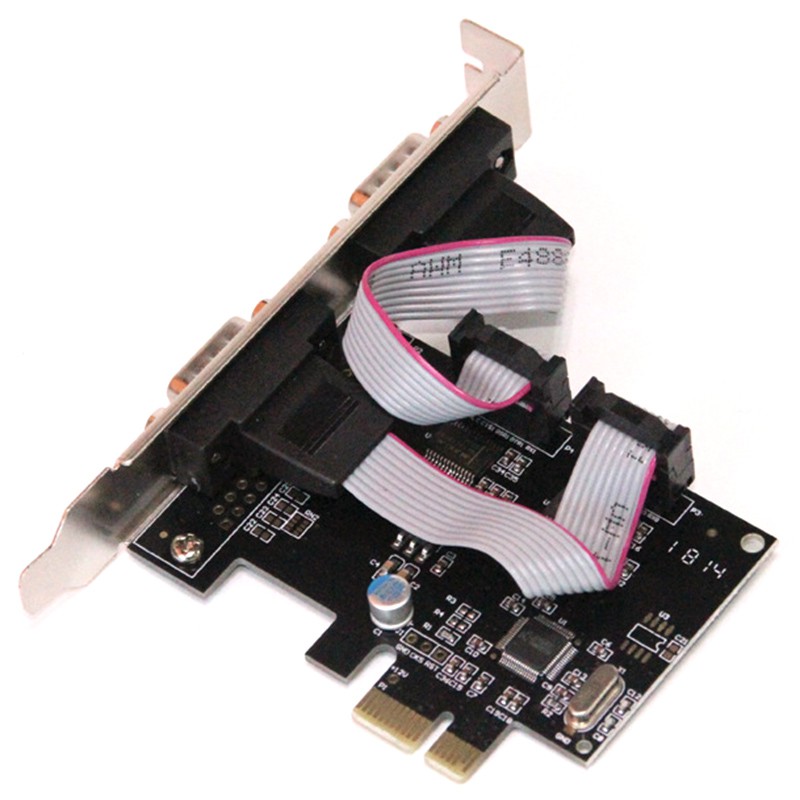

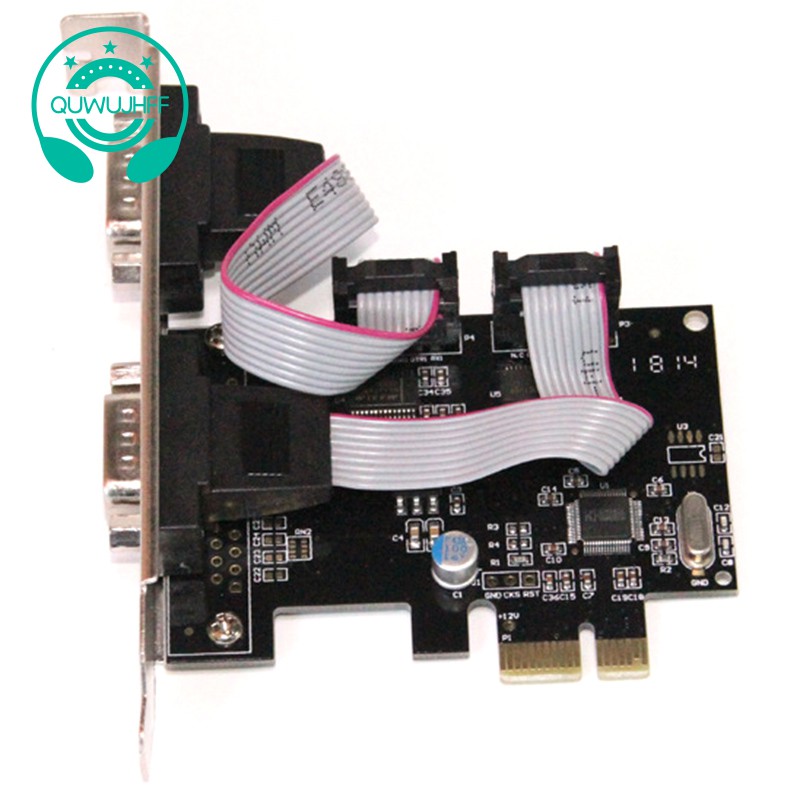

1* PCI-Express to 2 serial expansion card

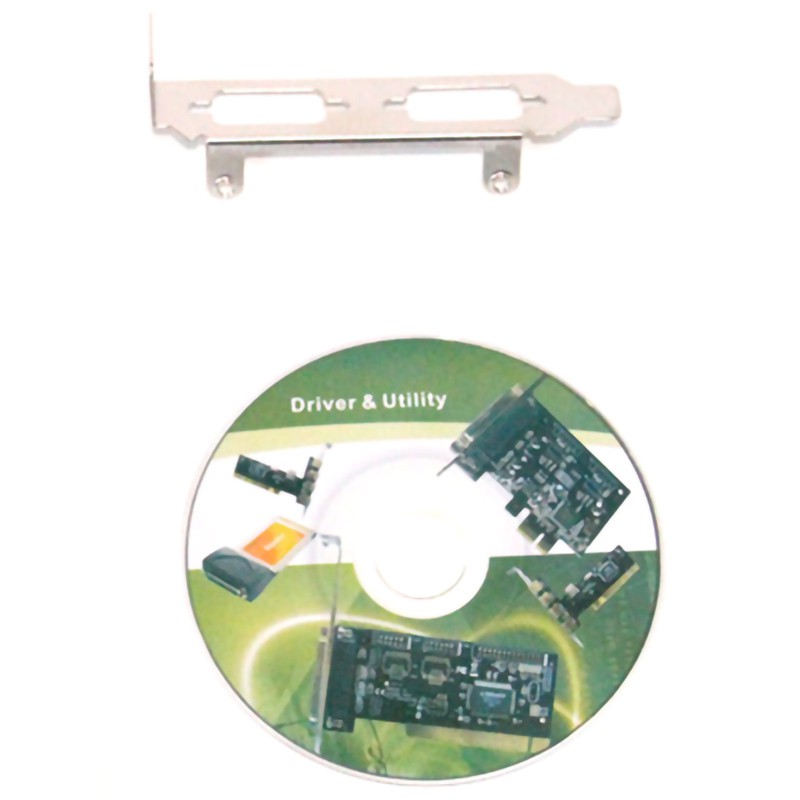

1* drive CD
1* short boardOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
