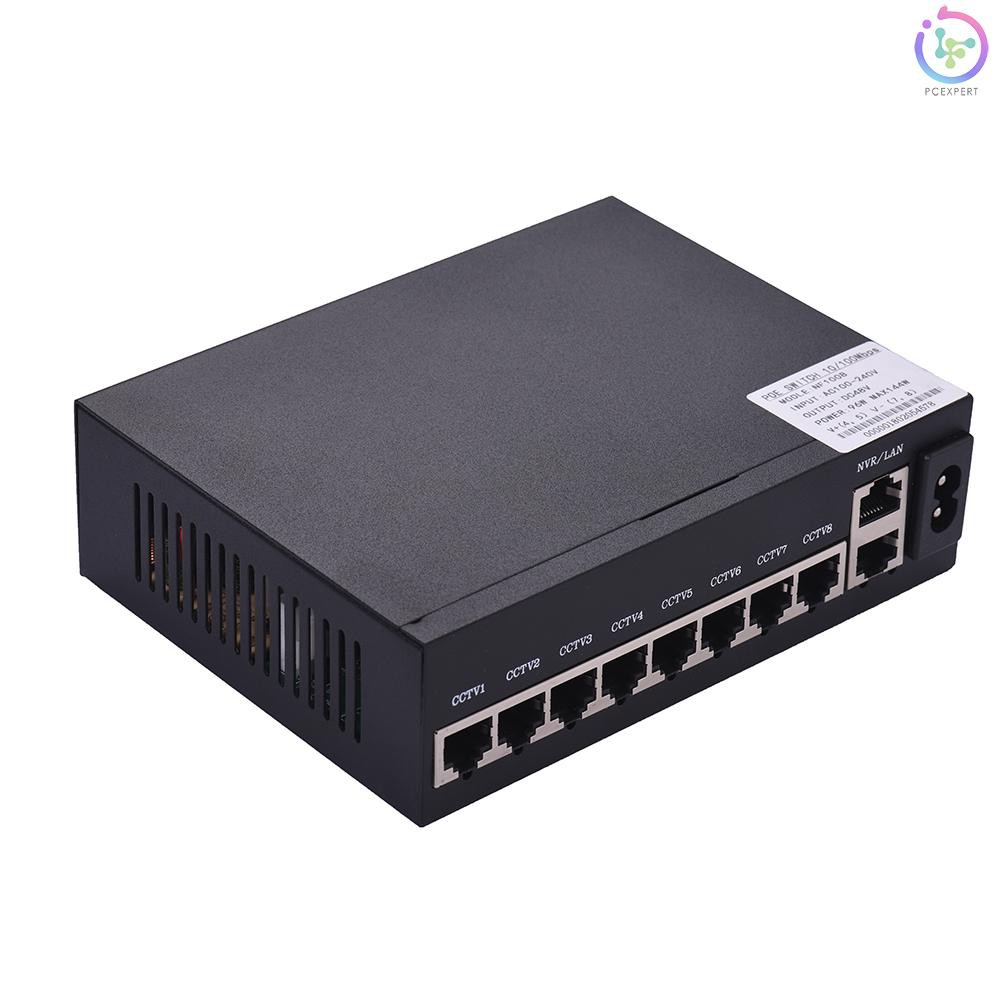

Hộp kết nối mạng NF1008 POE 8 cổng Ethernet 2 cổng Uplink 1.6Gbps IEEE 802.3at

Giới thiệu Hộp kết nối mạng NF1008 POE 8 cổng Ethernet 2 cổng Uplink 1.6Gbps IEEE 802.3at

This 8+2 POE Switch with 4 Ethernet Port 2 Uplink Ethernet Port 1.6Gbps over Ethernet IEEE 802.3, 100Mbit each port, maximum 15.4 watts each POE port, RJ45 port supports 10/100 Mbps self-adaptation, provides an easier installation way for POE devices, such as IP cameras, wireless AP, Access control system.


Features:
8 x 10/100Mbps Auto-negotiation Fast Ethernet RJ-45 ports.
Compatible IEEE 802.3at Power over Ethernet (POE) standard compliant.
Supports POE Power Maximum 15.4 watts (45+,78-) for each POE port.
Data transmission up to 100m.
8 Ethernet Port and 2 Uplink Ethernet Port can be connected with different equipment, one button to achieve intelligent run.
Backplane bandwidth is 1.6Gbps, high quality cables also can reduce power loss.
Plug and play design make the installation super simple, users do not need any configuration.
This POE switch is a great choice for IP cameras, wireless AP, VoIP users, access control system, for most devices which support POE switch.


Specifications:
Material: Metal
Color: Black

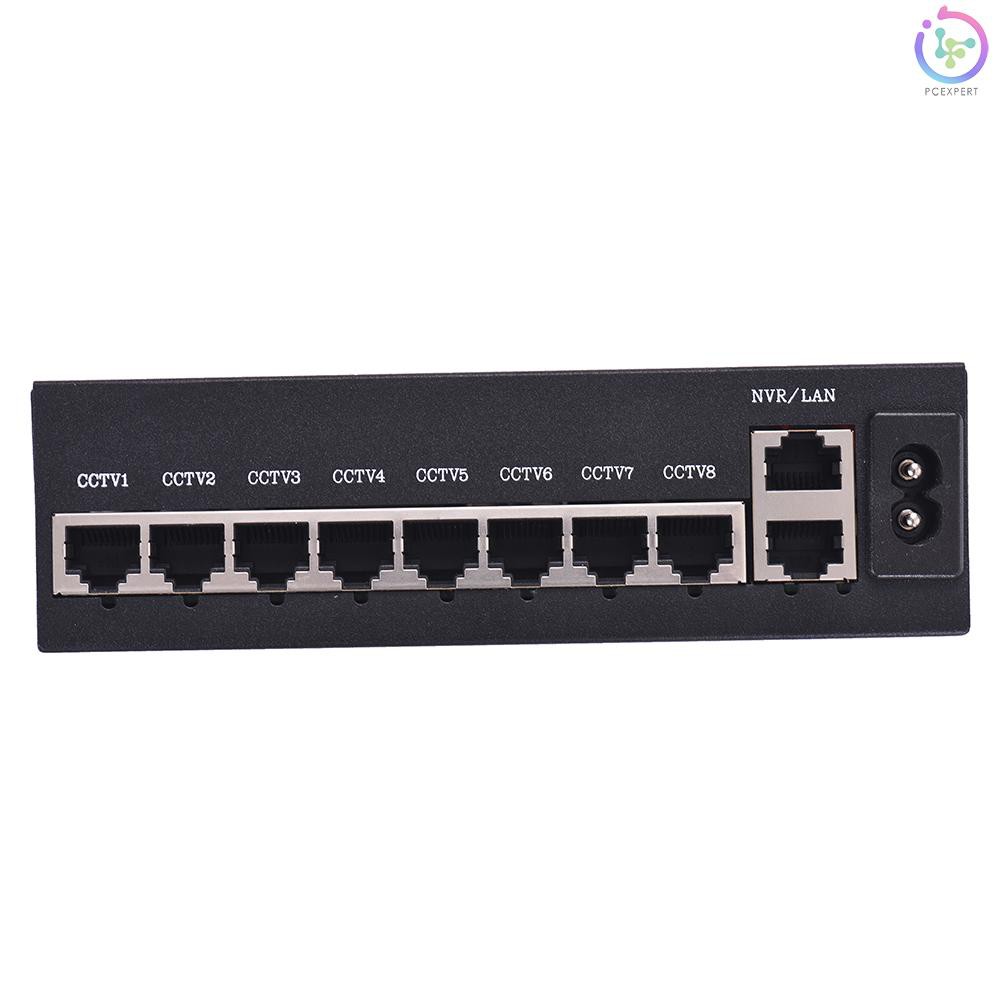

Ports: 8 Ethernet Port + 2 Uplink Ethernet Port
Data transmission: 100m
Maximum POE Power: 15.4 watts
Backplane bandwidth: 1.6Gbps
Power: 96W (Max 144W)
Input: AC 100-240V
Output: DC 48V
Product size: 15.5*11.8*4.5cm/6.10*4.64*1.77inch
Product weight: 641g
Package size: 20.5*13*5.5cm/8.07*5.11*2.16inch
Package weight: 782g

Note:
Item color may show sight aberration due to different shooting light and monitor display.

Packing list:
1* 8+2 POE Switch
1* Cable
1*User Manual
