Phụ kiện máy in 3d E3d V6 1.75mm 3: 1 chuyên dụng

Giới thiệu Phụ kiện máy in 3d E3d V6 1.75mm 3: 1 chuyên dụng

This is an upgrade Version which make great improvement for the teenth from the old one,has more better quality ,deeper teeth, more stable when printing.
Titan extruder advantages:
-Feeding torque is large.
-Product is compact and light.
-Support remote and short-distance feeding.
-Strong compatibility (can used with all the filaments of 1.75mm in the market, and mainly optimized the performance of the remote printing with the flexible filament such as the TPU.
-Using with the high-strength engineering materials injection molding products that resistant to aging.
-For the gear reducer structure, the motor is lightweight and little, but with outstanding torque and resolution. The feeding speed is more stable to improve the print quality and effectively reduce the overall weight.

Specifications:
Product Name: Titan Extruder
Filament diameter:1.75mm

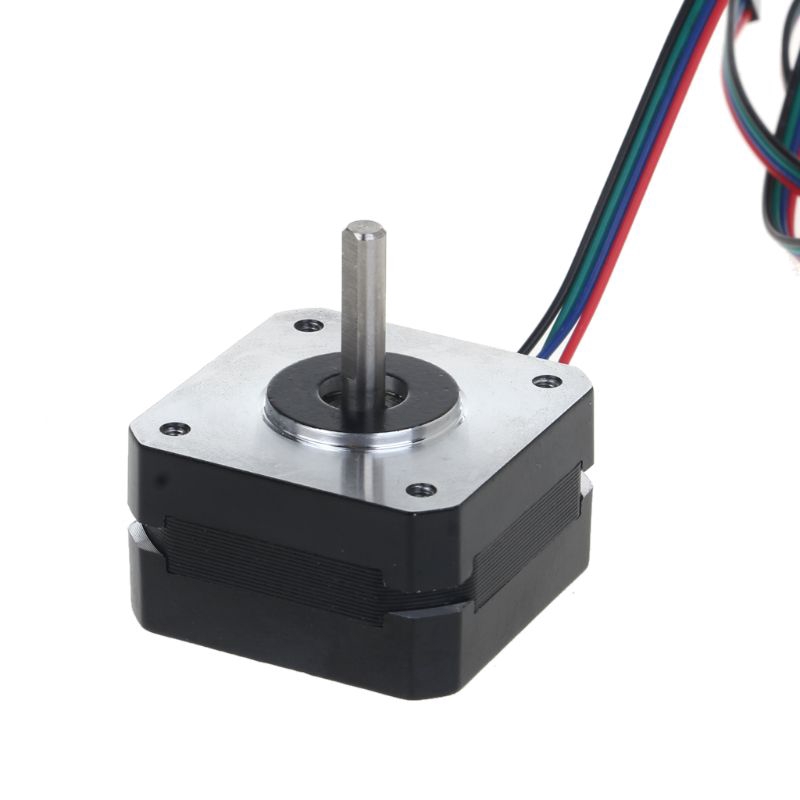

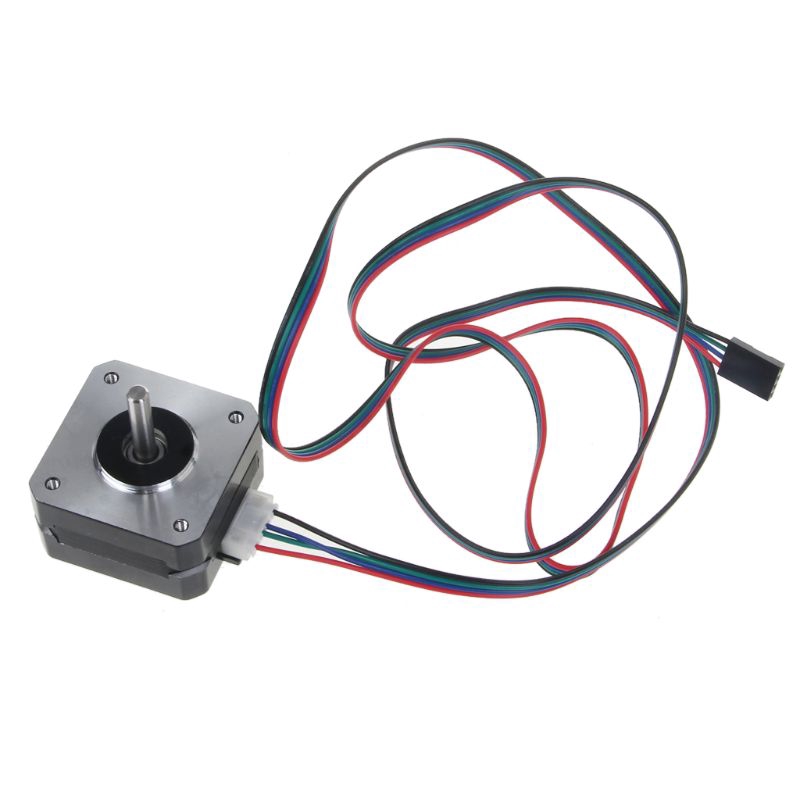

42 Stepper Motor
​Size:42*42*23mm
Phase: 2 Phase
Voltage: 12V
Current: 0.7 A/Phase
Resistance: 4.0 ± 10%Ω/Phase
Inductance: 3.2 ± 20% mH/Phase
Holding Togque: 14 N.cm
Insulation Class: B
Step Angle: 1.8±5% /STEP

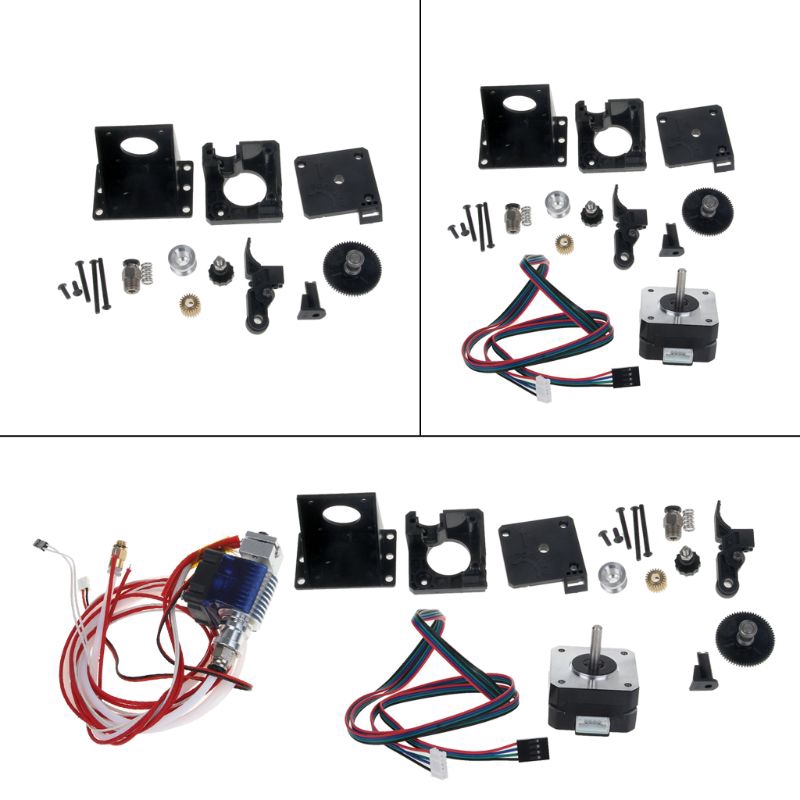

We have 3 Types to choose from.
Type 1 :1 set Titan Extruder

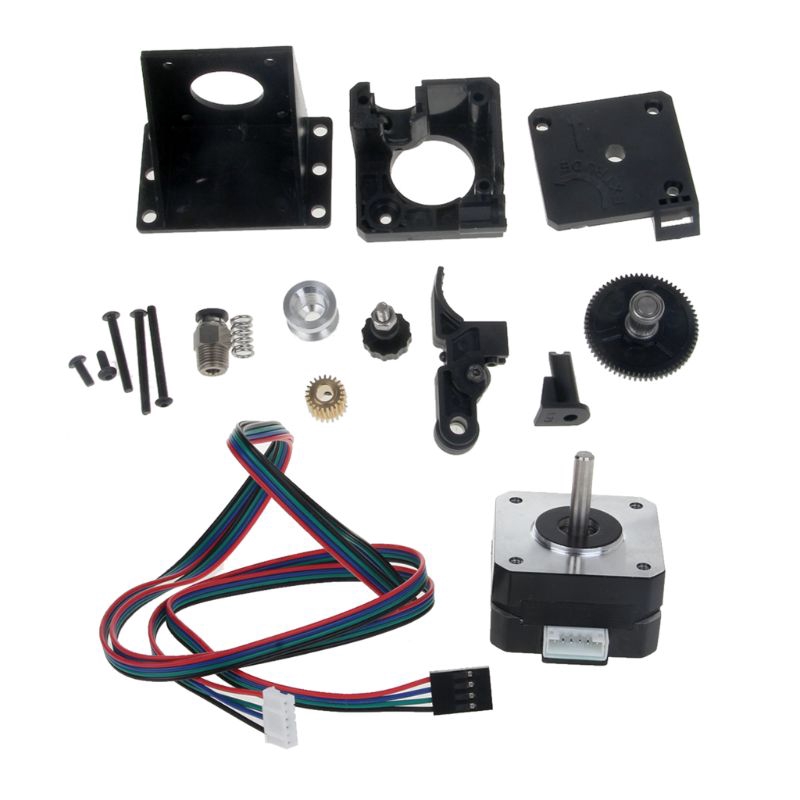

Type 2 :1 set Titan Extruder + 1pc Nema 17 Stepper Motor

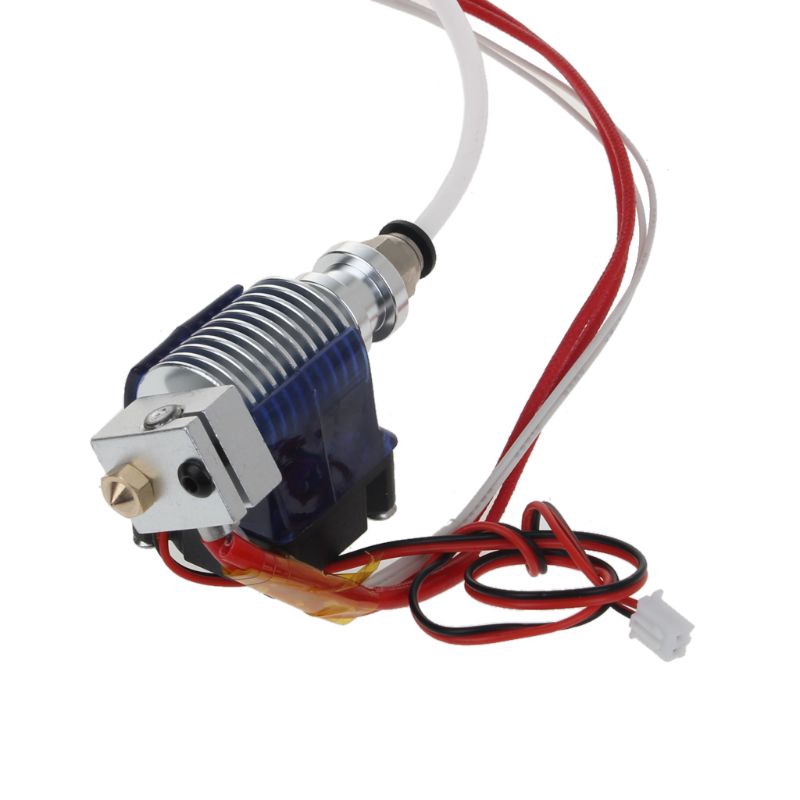

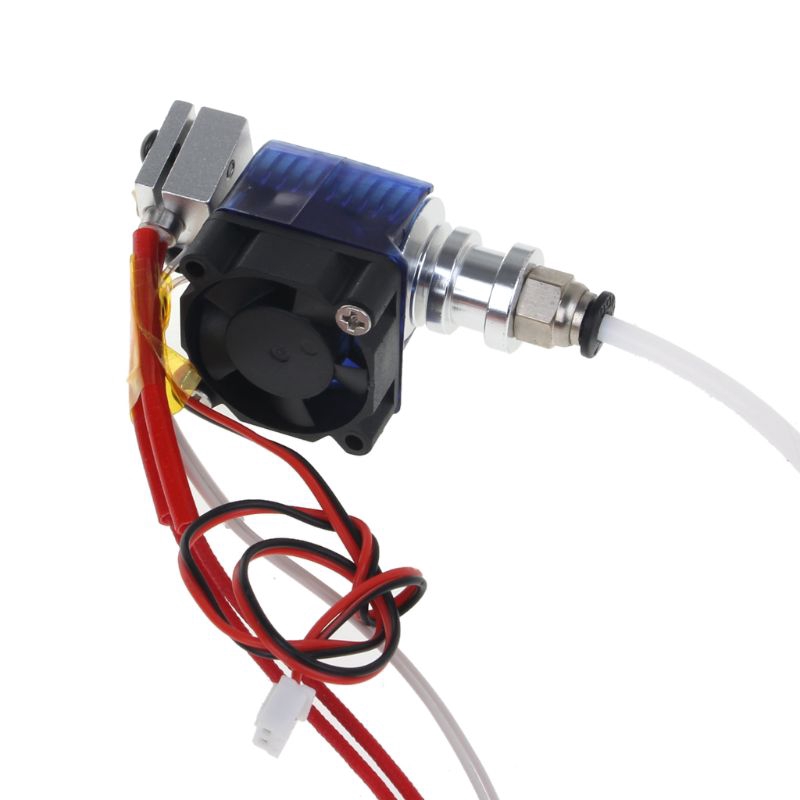

Type 3 :1 set Titan Extruder + 1pc Nema 17 Stepper Motor + 1pc V6 Bowden Extruder

Hình ảnh sản phẩm

Giá STON
