Mới Dụng Cụ Định Vị Cạnh Cơ Khí 10mm 4mm Cho Máy Phay Cnc

Giới thiệu Mới Dụng Cụ Định Vị Cạnh Cơ Khí 10mm 4mm Cho Máy Phay Cnc

This product is a high-precision measurement tool that can quickly and easily set mechanical spindle and workpiece datum

exact center position: accuracy and reproducibility of competent drilling, milling, boring and grinding jigs, etc.

The precision positioning work.


Specification:

Material:HSS

Dimensions:

probe:4mm(DIA)

total: 90x17.5mm(LXW)

shank: 10mm(DIA)

Unplug finder’s pins, the spring can be replaced.

Edge finder's role is to determine the position of the workpiece on the machine, which determine the working coordinate system.


Feature:

1, applies to traditional milling machines and machining centers

2, with the speed 400-600rpm use.

3, the mechanical rotation measurements,no clamping errors, repeat the measurement accuracy up to within 0.005mm.

4, specially designed probe 4mm, provide for a small aperture is narrow trench and measured using.

5, the lower end of the rotation part is magnetically shielded.


Package include:

1 x Precision Edge Finger


Note:Please allow 0-3cm error due to manual measurement. pls make sure you do not mind before you bid.

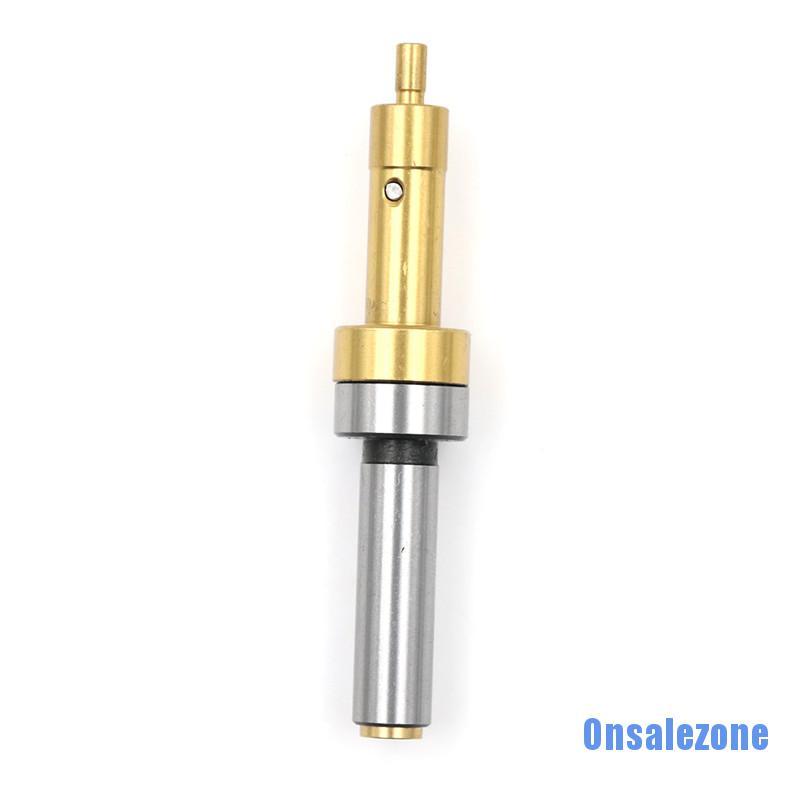

Hình ảnh sản phẩm
