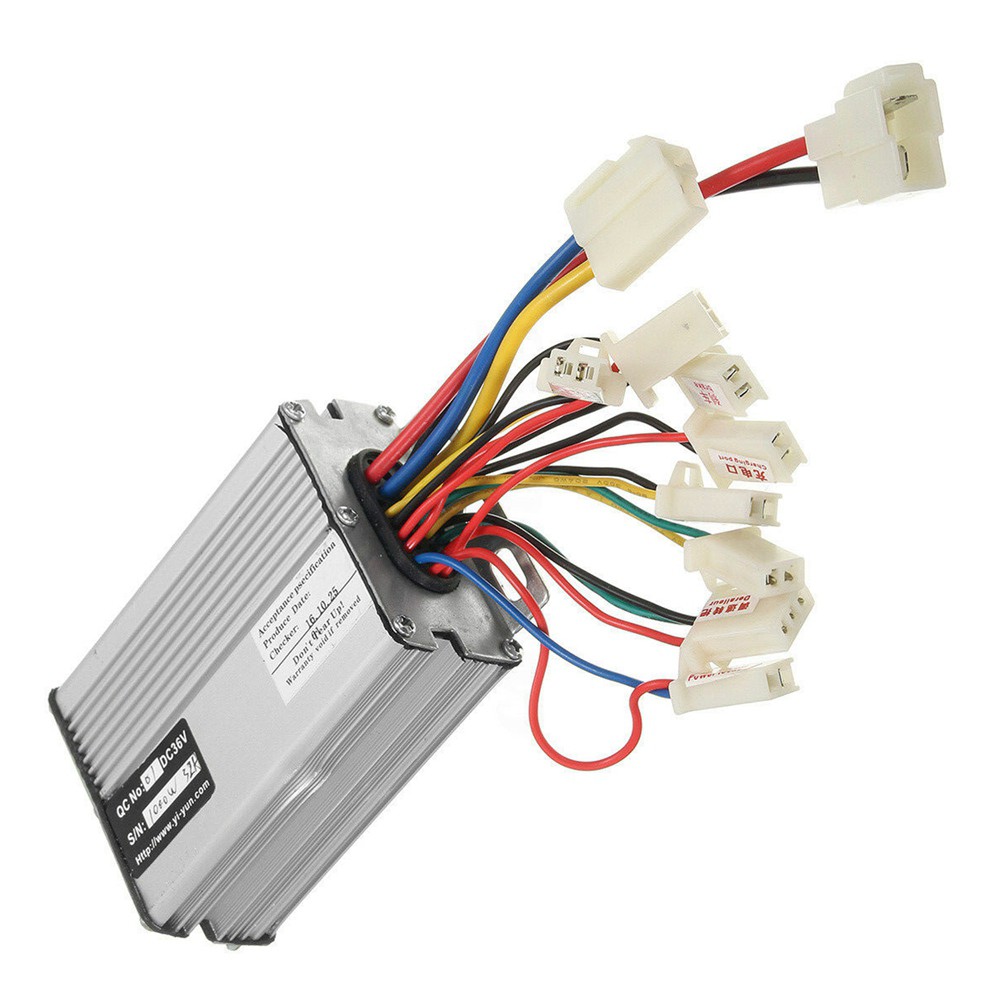

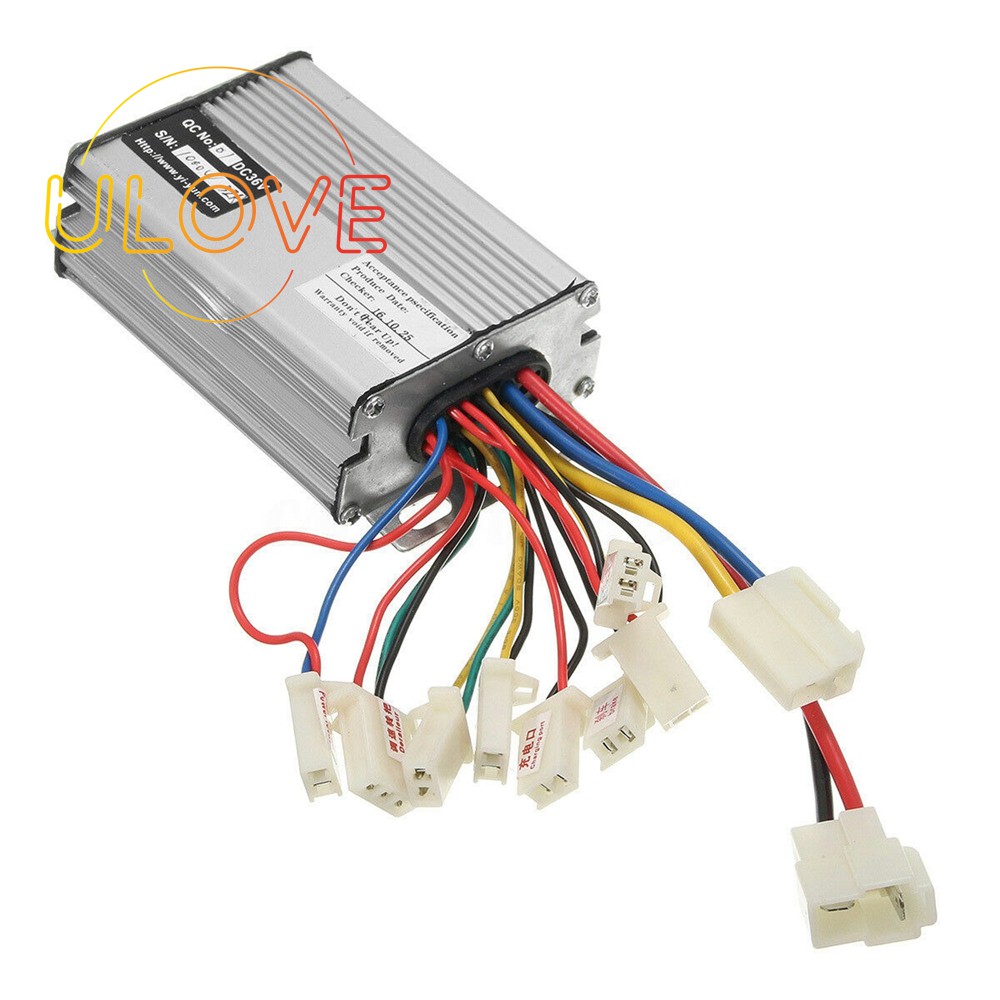

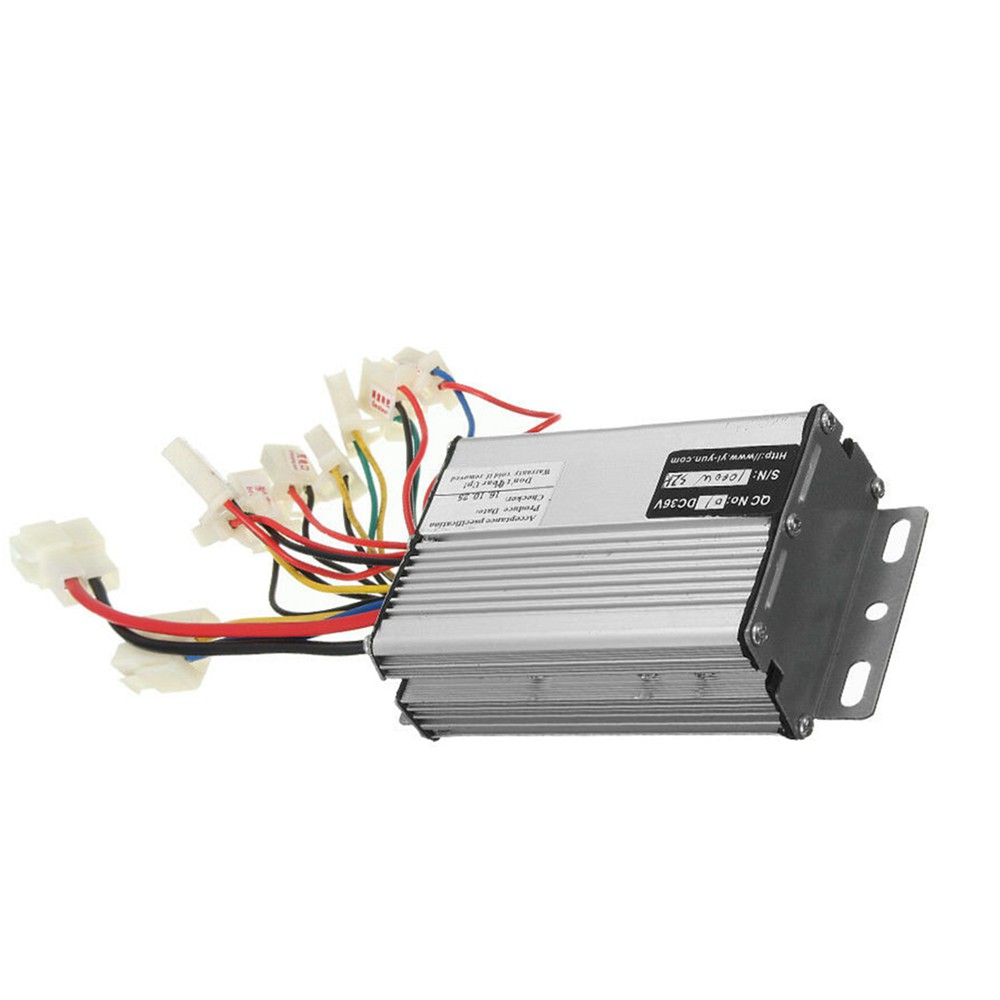

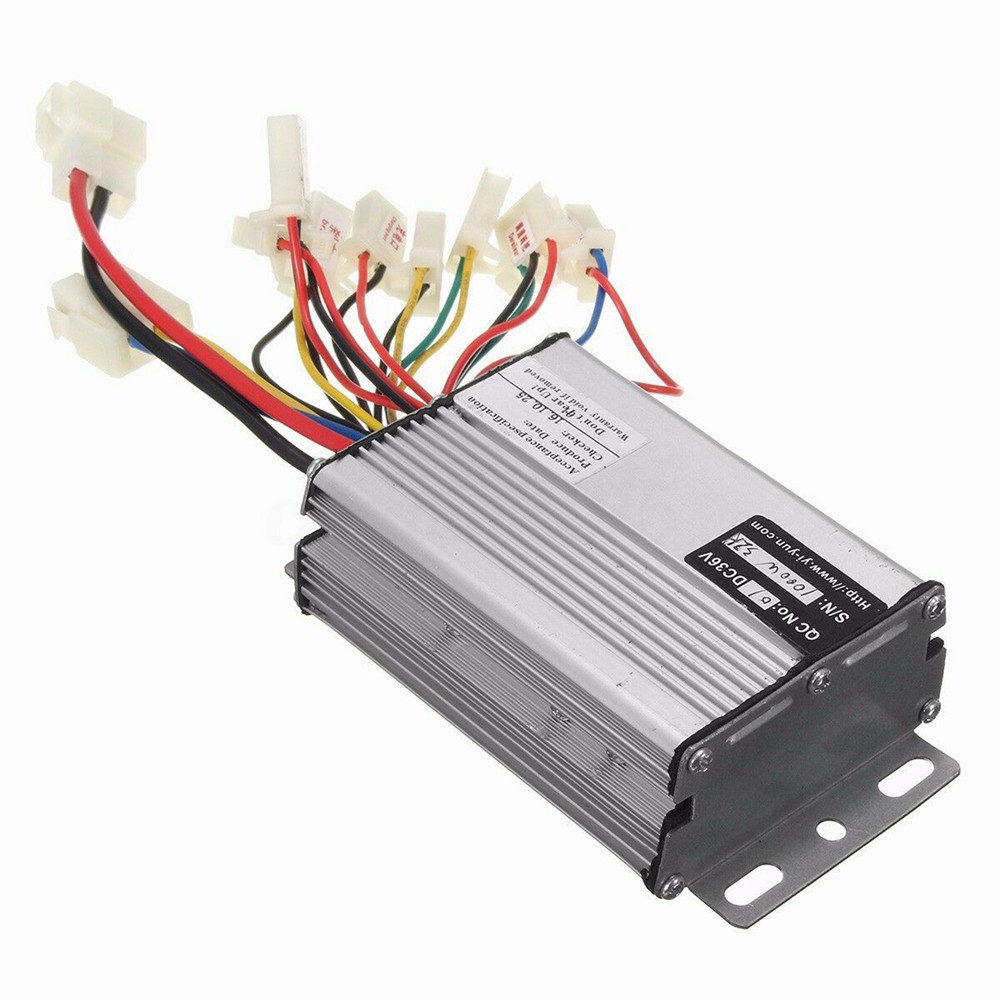

Động Cơ Điều Khiển Tốc Độ 1000w Cho Xe Đạp Điện (36V)

Giới thiệu Động Cơ Điều Khiển Tốc Độ 1000w Cho Xe Đạp Điện (36V)

el: Controller
Rated power: 1000W
Compatible for: 700-1000W motor
To the motor to work at least first connected to the first four connectors, the first controller on the two thicker blue and white lines connected to the motor, in which the blue line of the red motor, white line to the motor black line. Followed by the controller of the two red and black lines connected to the battery, the red line then the battery cathode, black line connected to the negative.

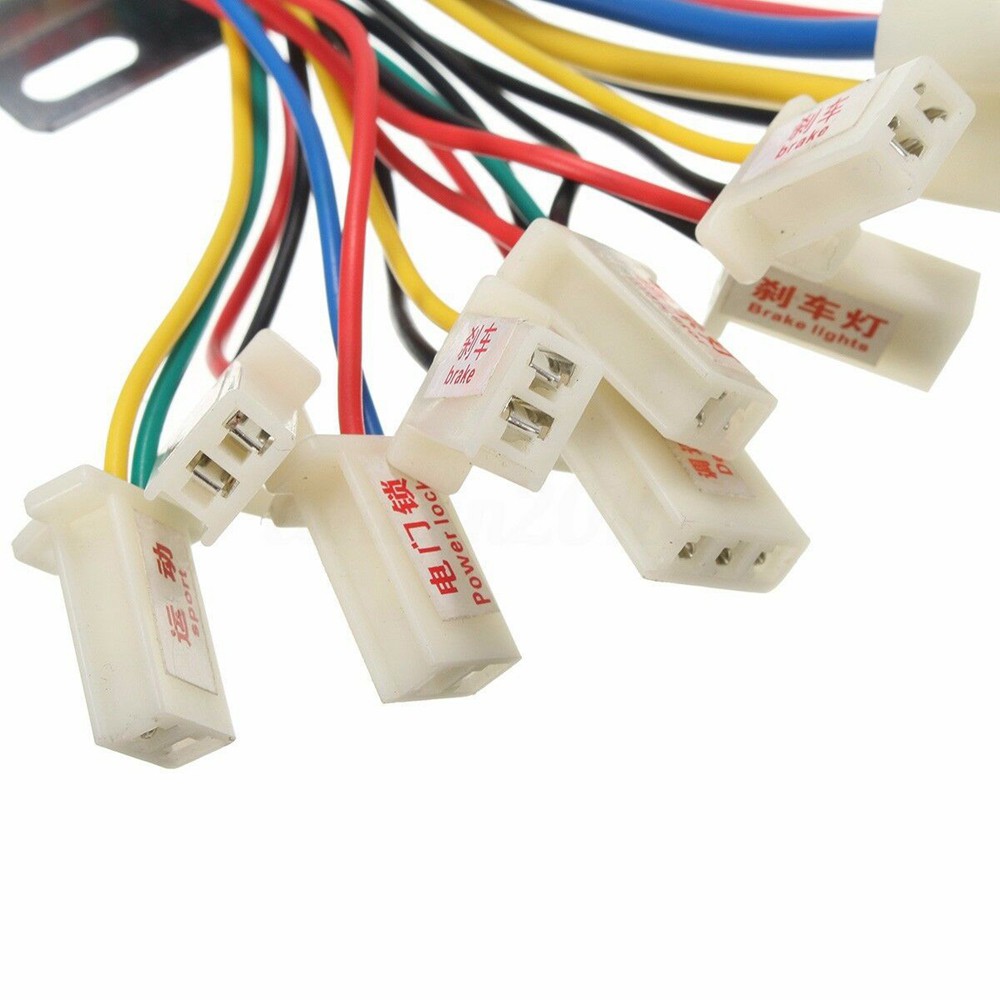

The third re-connected to the speed control to the joints, (speed control turn to have three lines, be sure the red line on the red line, black line on the black line phase). Once again connected to the electric lock, open the door locks, turning the motor can run.
Notes:
Do not take the wrong power cord, or will burn.
Voltage: 36V
colour:Sier
Material:Aluminum alloy

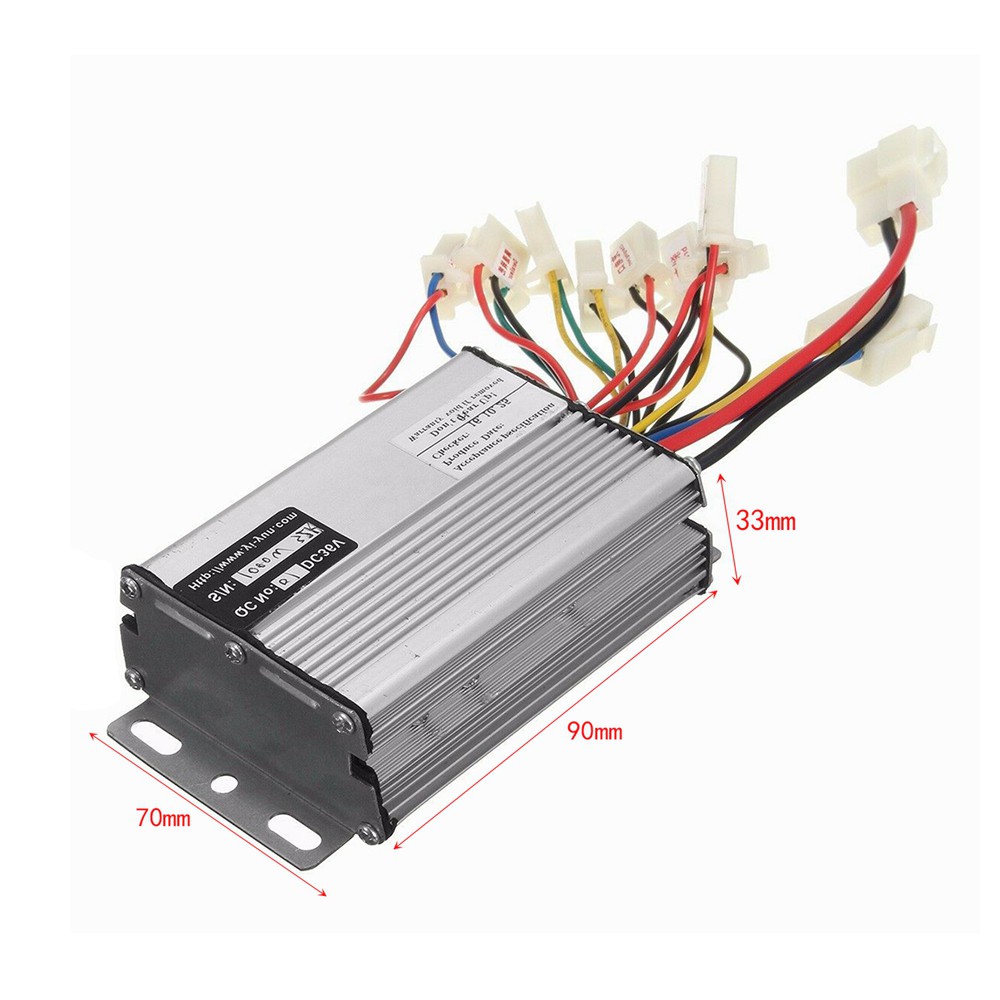

size:9*7*3.3cm
Package Contents:
1 * Brush motor controllerOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
