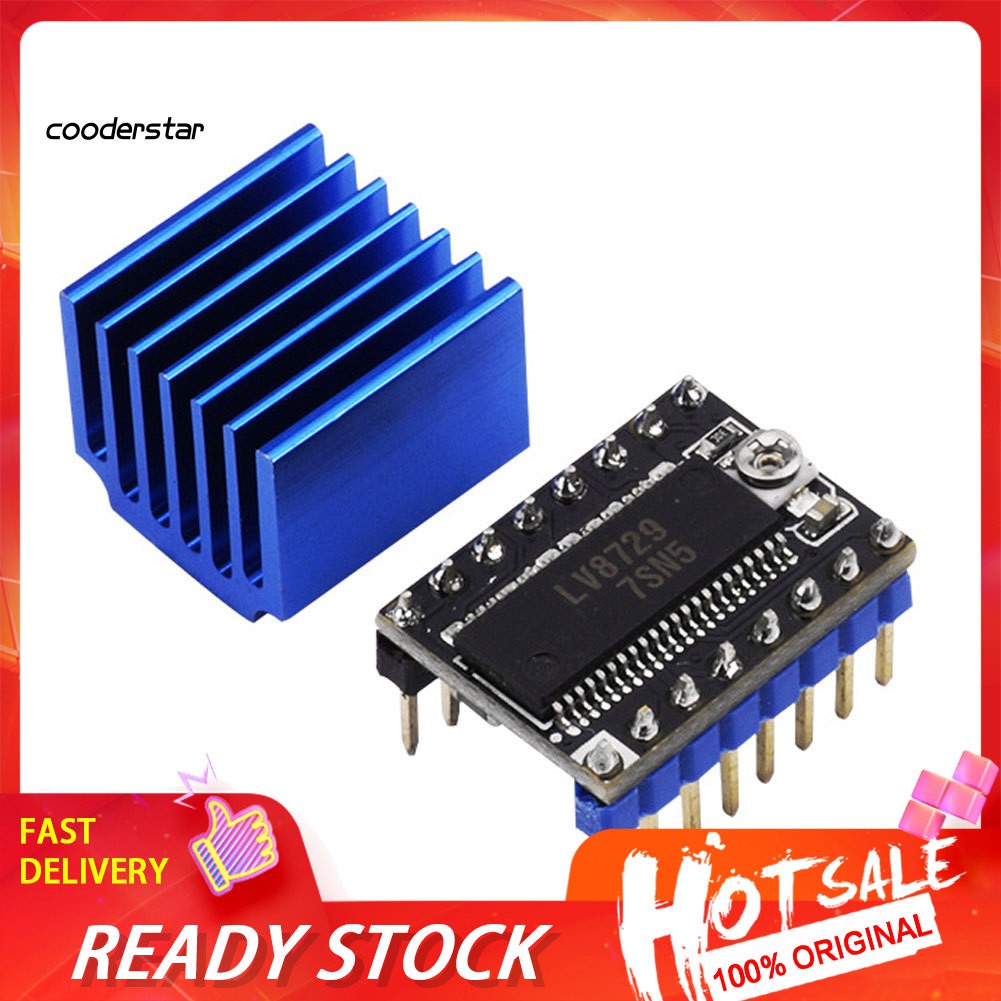

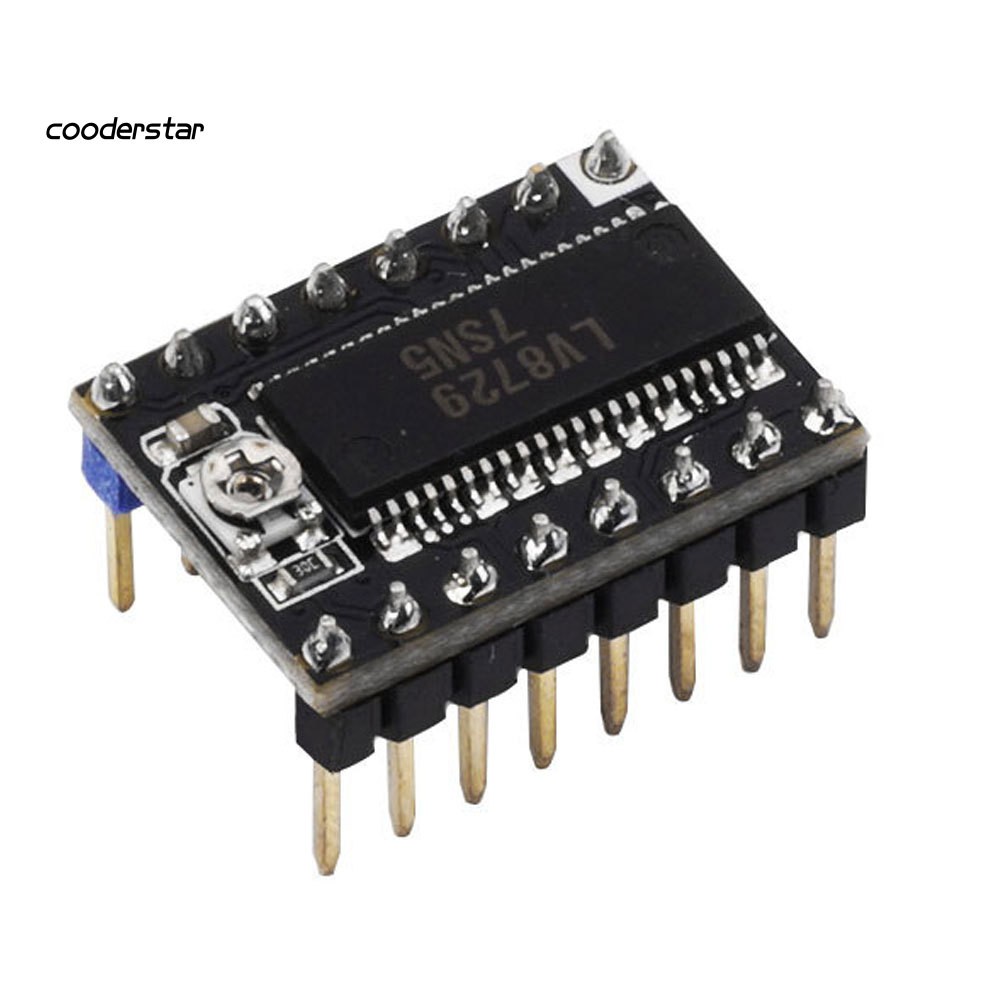

Động Cơ Bước Lv8729 4 Lớp Cho Máy In 3d

Giới thiệu Động Cơ Bước Lv8729 4 Lớp Cho Máy In 3d

Specifications:
Excellent super quiet effect can be achieved only when subdividing 64 or 128 subdivisions.
Working voltage from 6V to 36V, the recommended voltage is 12V.
The maximum current is 1.5A and the default is 0.8A.
Subdivisions of 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128.
Heat sinks must be added to make the heat dissipation better.

Item Name: LV8129 Stepper
Material: Aluminium
Maximum Drive Current: 1.8A (Default 0.8A)
Maximum Voltage: 36V (Usually 12V)
Support Subdivisions: 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128
Product Process: Four-layer PCB Board
Features: Mute Working, Replacement, Motor Driver
Size: 14mm x 13mm x 15mm/0.55" x 0.51" x 0.59" (Approx.)

Notes:
Due to the light and screen setting difference, the items color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

Package Includes:
1 x LV8129 Stepper
1 x Heat Sink
1 x Sticker
