Động Cơ Bước 8mm 23hs7628 Cho Máy In 3d

Giới thiệu Động Cơ Bước 8mm 23hs7628 Cho Máy In 3d

Features:

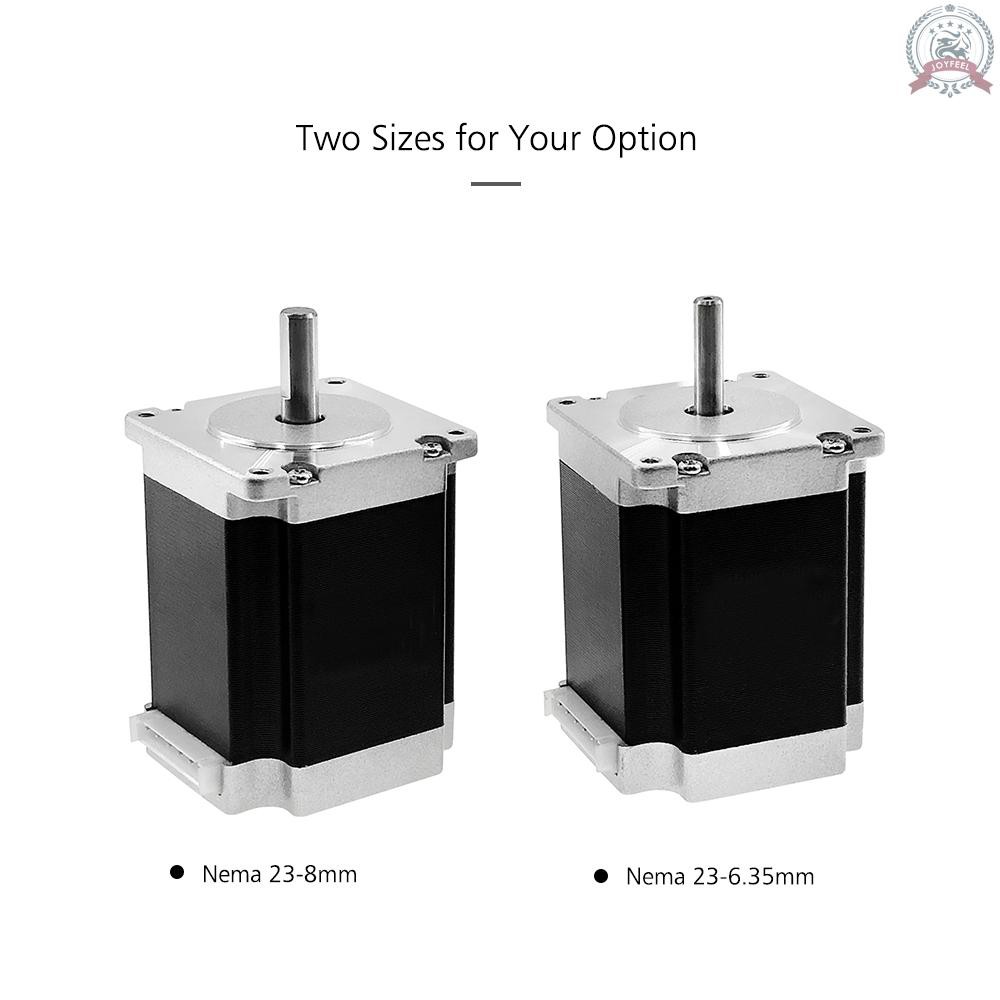

Apply for 3D printer, machinery and equipment; there are two shaft diameters for your optional -- 6.35mm / 8mm.
Aibecy 23HS7628 stepper mototr
Features step angle of 1.8 degrees and holding torque of more than 900 mN.m.
Lower noise and running temperature.
Package comes with a Nema 23 stepper motor and a 30cm motro lead wire.
Nema 23 stepper motor matches 17/23(42/57) microstep motor driver. (the driver to be purchased separately).

Specifications:
Model: Nema 23 (23HS7628)
Shaft Diameter: 6.35mm / 8mm (optional)
Current: 1.0A
Holding Torque: >900 mN.m
Step Angle (degrees): 1.8
Phase: 2
Outlet Way: 4 plug line
Motor Leads: 30cm wire
Motor Frame Size: 7.5 * 5.7 * 5.5cm / 2.95 * 2.24 * 2.17in
Motor Weight: 1031g / 36.37oz
Package Size: 14 * 9.5 * 7cm / 5.51 * 3.74 * 2.76in
Package Weight: 1100g / 38.8oz

Package List:
1 * Nema 23 motor
1 * 30cm wire

Hình ảnh sản phẩm
