Động Cơ Bánh Răng Kim Loại Mini Dc 12v 300rpm El: N20 3mm

Giới thiệu Động Cơ Bánh Răng Kim Loại Mini Dc 12v 300rpm El: N20 3mm

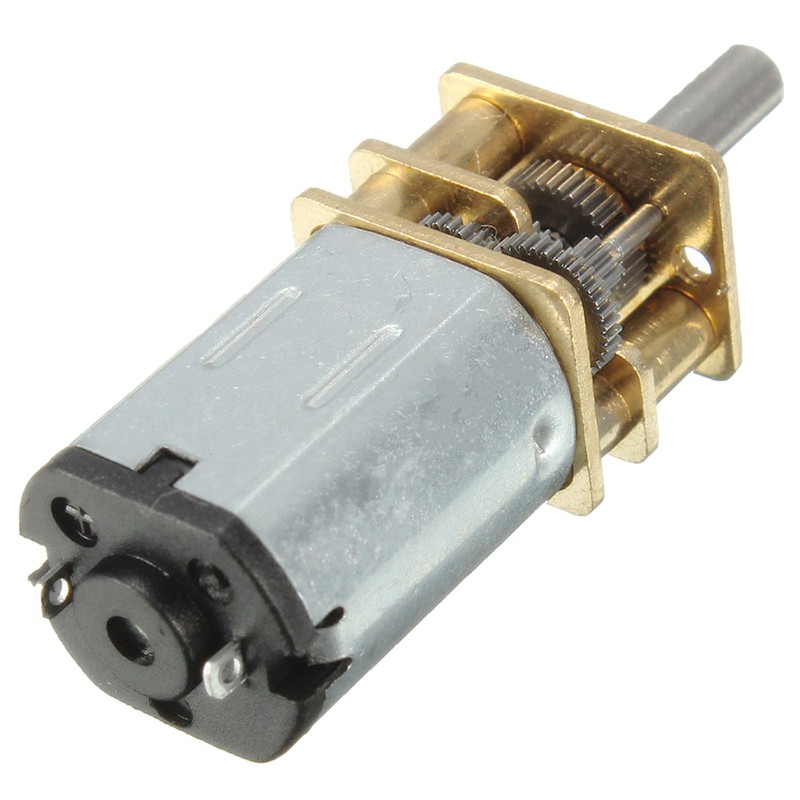

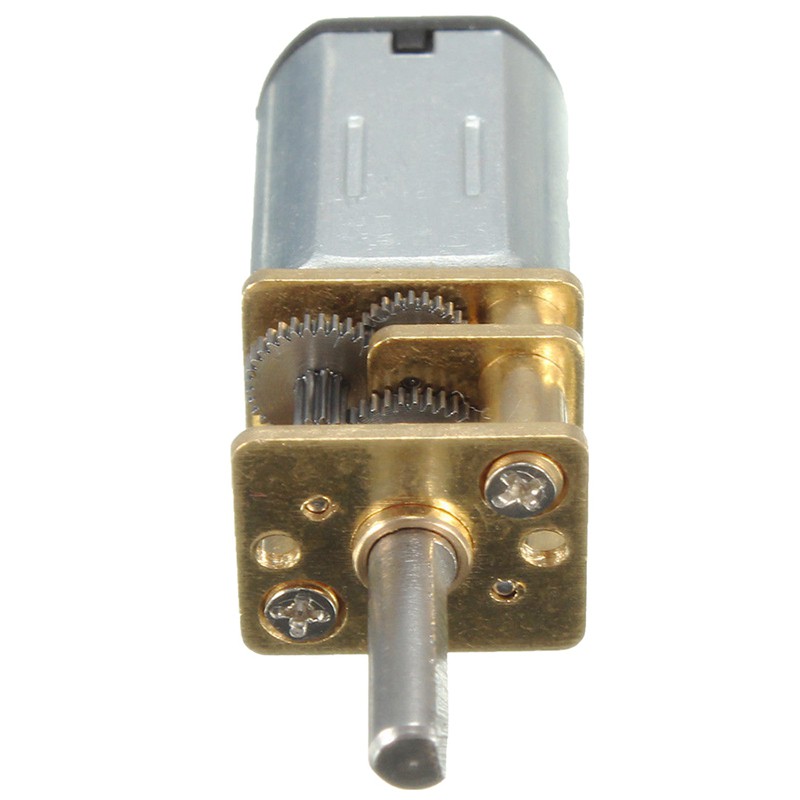

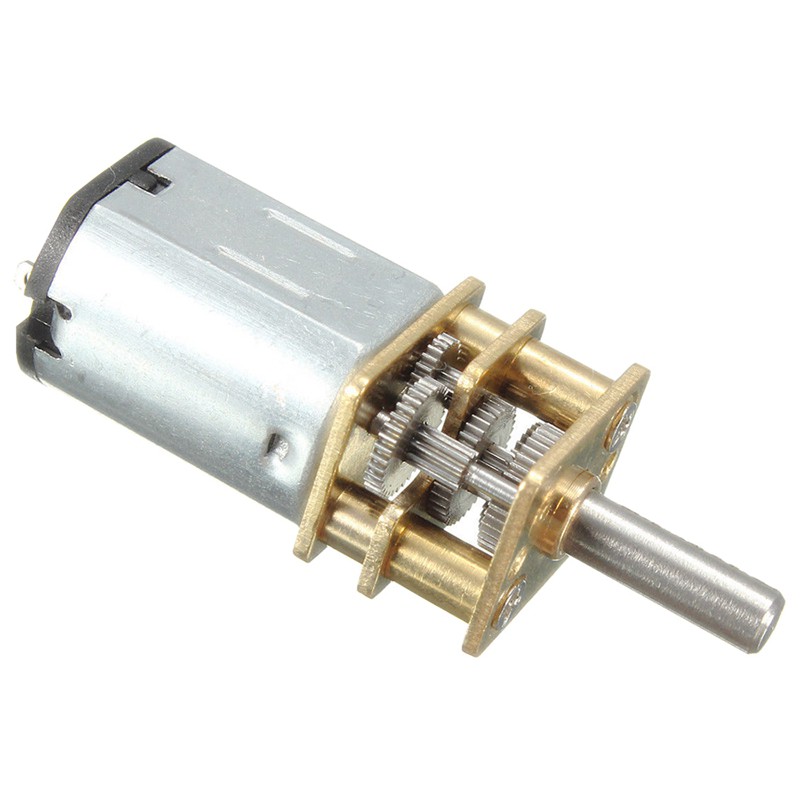

Name: DC Mini Metal Gear Motor.
ideal for making robots
Light weight, high torque and low RPM.
Fine craftsmanship,durable,not easy to wear.
With excellent stall characteristics,can climb hills easily.
You can also easily mount a wheel on the motor's output shaft.
We guarantee the high quality condition for you
Shaft Diameter: 3mm
Size: Diameter: 12 mm
fuselage without shaft length: 26 mm
Output axial length: 10 MM to 4.4 MM
Colour: Gold and sier
Material: metal
el: 12GAN20
Voltage : Voltage range(V): 6-12, Rated voltage: 12
Non-loaded : speed(RPM): 300 /100,current(A): 0.05 / 0.04
Rated load: speed(RPM): 240 / 80,current(A): 0.09 /0.07,torque(KG.CM): 0.6 / 2
stall: torque(KG.CM): 4.00 / 16, current(A): 0.3 /1

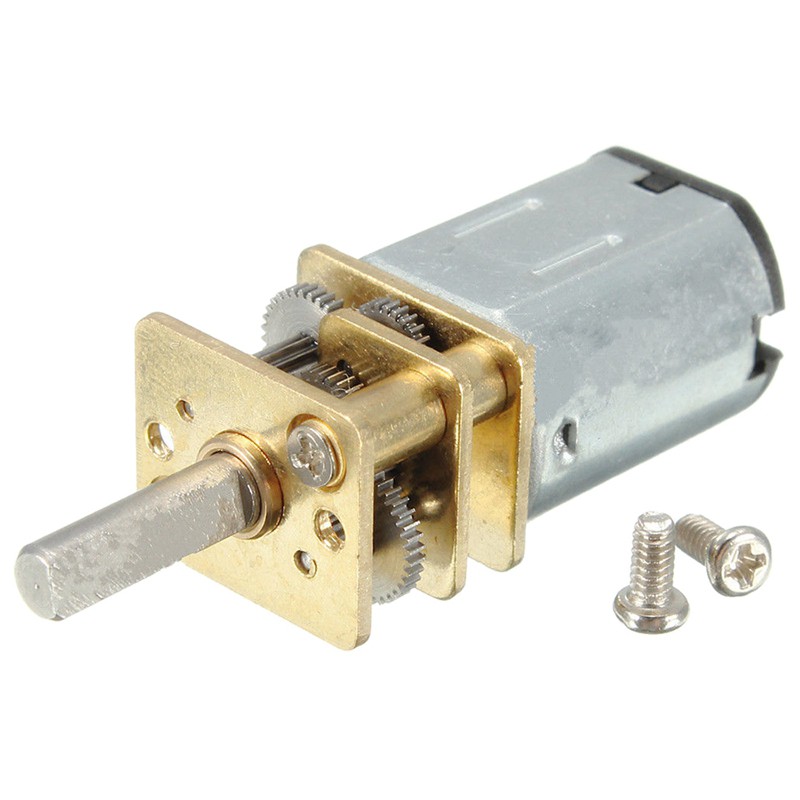

For your convenience,we particularly offer two screws for you to install.
Package include: 1 x mini gear motor
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
