DC Công Tắc Điều Khiển Tốc Độ Động Cơ 6-60v 30a

Giới thiệu DC Công Tắc Điều Khiển Tốc Độ Động Cơ 6-60v 30a

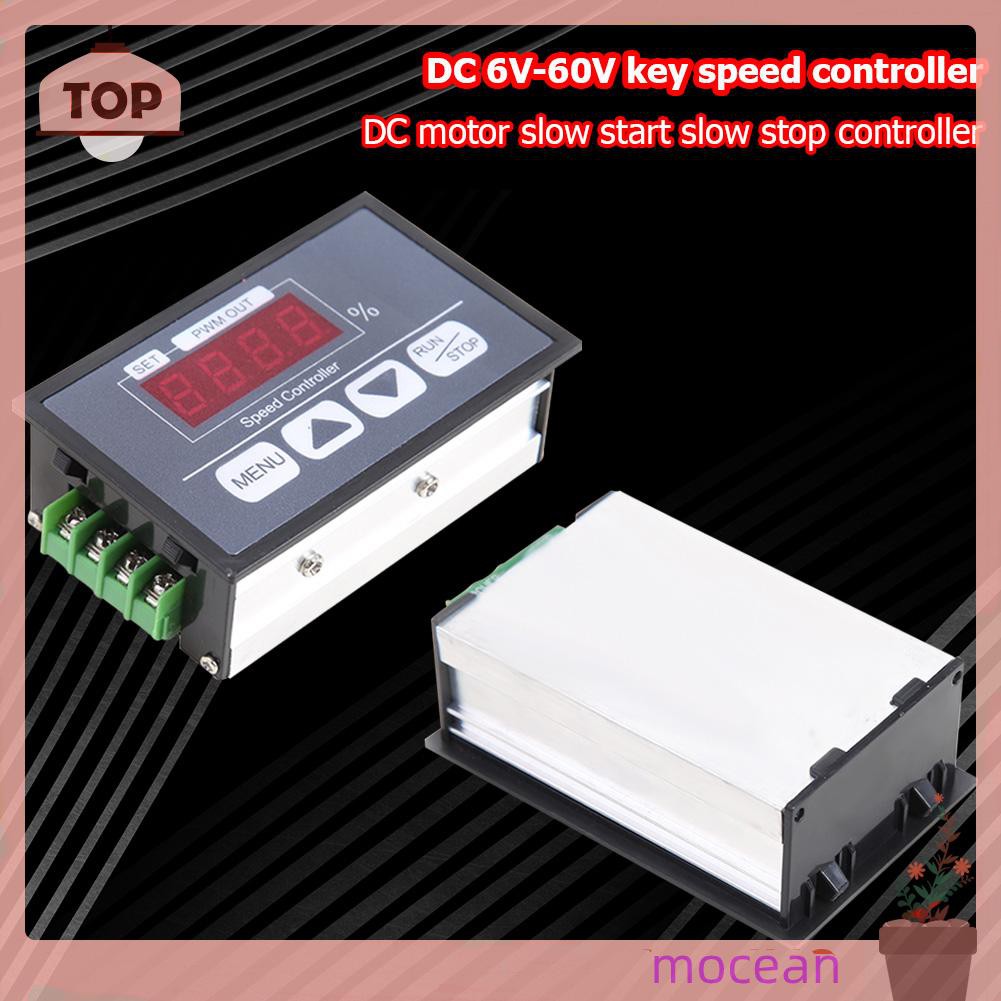

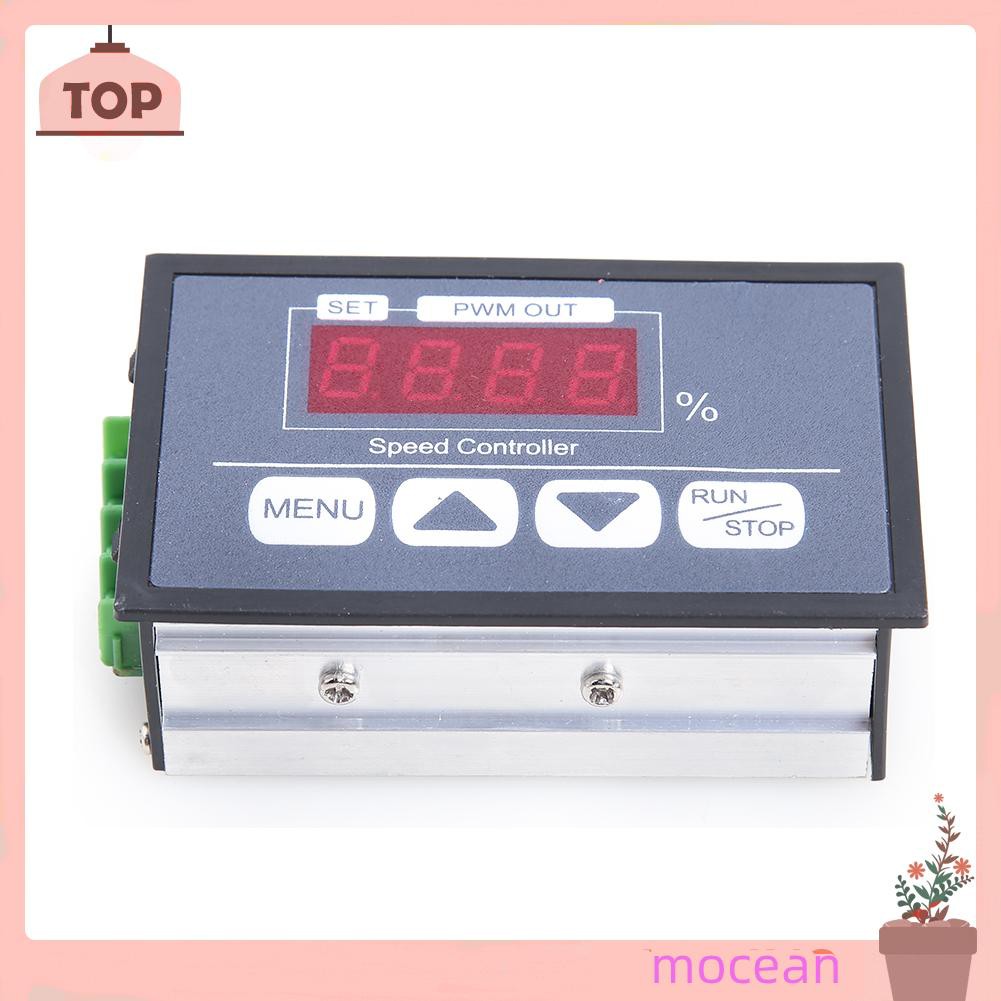

ᖘᖘ Digital Display DC 6-60V 30APWM Motor Speed Controller Soft Start Slow Stop Motor Speed Regulator Governor Control Switch
Feature:
1. Soft start time setting: 000-100, slow start to 100% speed time is adjustable between 0-10 seconds, the default is 1 second.
2. Soft stop time setting: 000-100, slow stop time is adjustable between 0-10 seconds, the default is 1 second.
3. Rotation speed lower limit setting: 000-080, the minimum speed is adjustable between 0-80%, and is less than the maximum speed setting value, the default is 0.
4. Speed limit setting: 000-100, the maximum speed is adjustable between 0-100%, and is greater than the minimum speed setting value, the default is 100%.
5. Acceleration and deceleration value setting: 001 002 005 010 015 020 025 Each time you press the plus and minus key, the speed changes accordingly by 1%, 2%, 5%, 10%, 15%, 20%, 25%.

Specification:
Input voltage: DC 6-60V
Output voltage: linear under load
Output current: 0-30A
Continuous current: within 20A
Speed regulation type: flow regulation
Speed control mode: Jog +-
Speed adjustment range: 0-100%
Control frequency: 21kHz
Wiring type: barrier terminal block
Supported motor: brush motor
Module size: 96*61*34mm/3.78*2.40*1.34"
Panel opening: 92*56mm/3.62*2.20"
Speed digital display: 0-100%

Notice:
1. No reversed positive and negative. Not for AC 220V voltage;
2. The input voltage should be equal to the rated voltage of the motor within DC 6-60V.

Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.


Included:

1 X DC Motor Speed Controller
