Description:
100% Brand New & High Quality

Specification:
Operating voltage: DC 12V-36V
Operating Current: Driver Power: Speed Voltage: 0.1V-5V
Operating Temperature:-40-85°C
Humidity: 90%RH
Stall protection:Yes
Enable Control: Yes
Over-current protection: Yes
Steering control: Yes
Speed control signal: Yes
Size: 63*42*17mm(L*W*H); Probe size 3mm,length: fixing hole center distance 57mm; width:fixed hole center distance 36.5mm
Power terminal Out:
VCC(positive power supply)
GND(negative one)
MC(motor phases W)
MB(motor phases V)
MA(motor phase U)
Set for the control side:
GND control terminal ground
VR the governor end 0-5V(corresponding to 10% of motor speed -100%)
ZF reversing control(connected to 5V or ground can charge the motor rotation direction)
M tachometer pulse output(depending on the number of motor poles corresponding to the number of pulse per revolution of the output number)
EL enable control terminal(connected to 5V ot ground running then 5V, grounding the motor stops)
5V 5V control terminal
HALL for the hall terminals:
5V  Hall power positive
Ha  Hall signal
Hb  Hall signal
Hc  Hall Signal
GND  Hall negative
Wiring:
Control terminal for SET:
1. The motor speed control wiring methods: available potentiometer system speed can also be connected to the MCU control, when the potentiometer control wiring, the potentiometer middle pin is connected to VR speed port, potentiometer connected to both ends of 5V and GND terminal voltage more high speed faster.
2. Motor steering control wiring methods: you can switch control can also be connected to the MCU control, to GND in one direction, then in one direction 5V.
3. Pulse speed signal: high and low output . IC can not understand the information with the customer request.
Hall signal inputs for hall:
Wiring diagram is shown, one corresponding to the HA, HB,HC and on the motor, 5V power supply connected to the motor hal signals positive, GND power supply negative signal to the motor hall.

Note:
Due to different motor manufacturers to make the hall of hall line order does not necessarily follow the line on the board to match the sequence, need to be adjusted, please parents who pay attention! If the line sequence wrong, does not boot properly, current, or start other phenomena not open, forced to use the drive plate will burn!!!
Motor driver board 12-36V DC power input, VCC positive power supply,GND power supply is negative.
Electrical wiring methods: Brushless DC motor for the three lines,

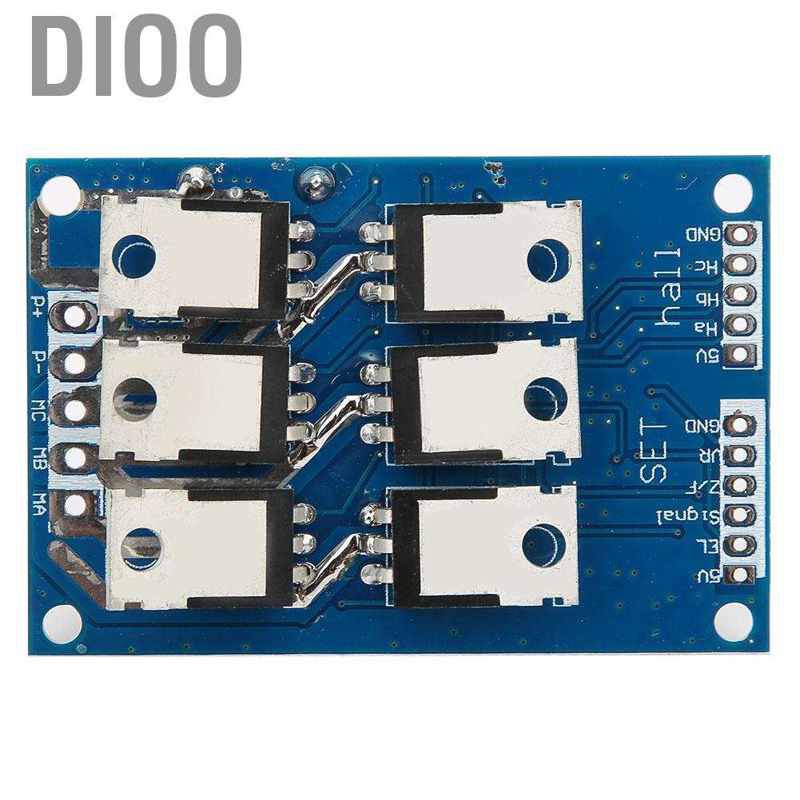

Hình ảnh sản phẩm
