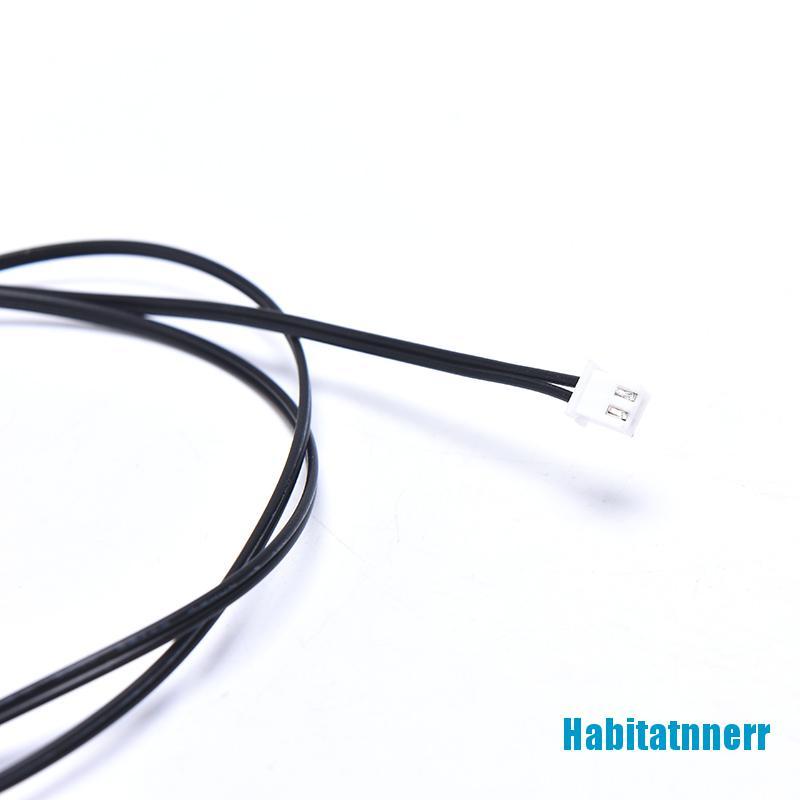

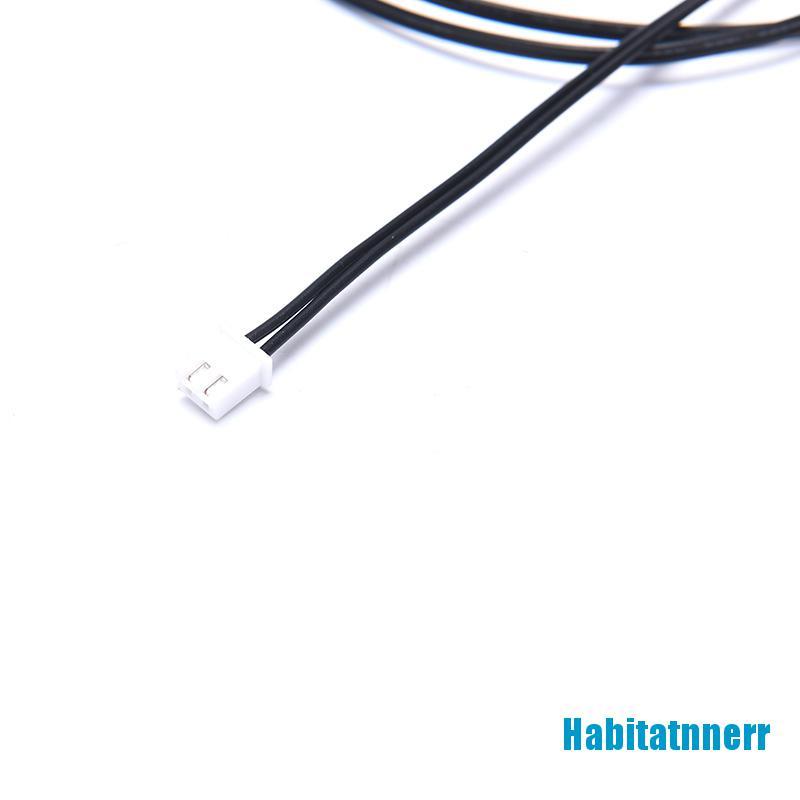

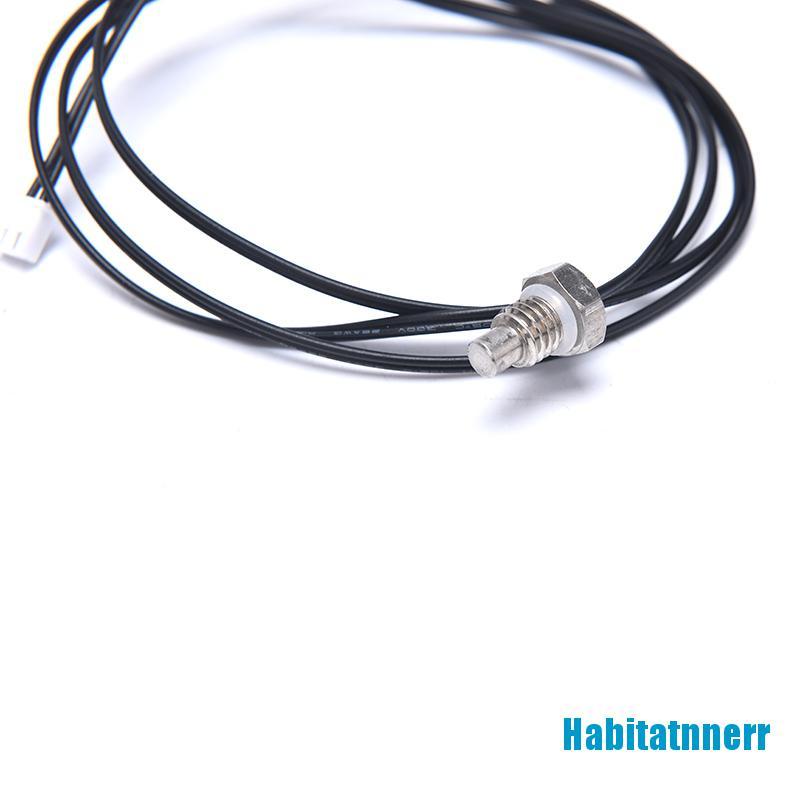

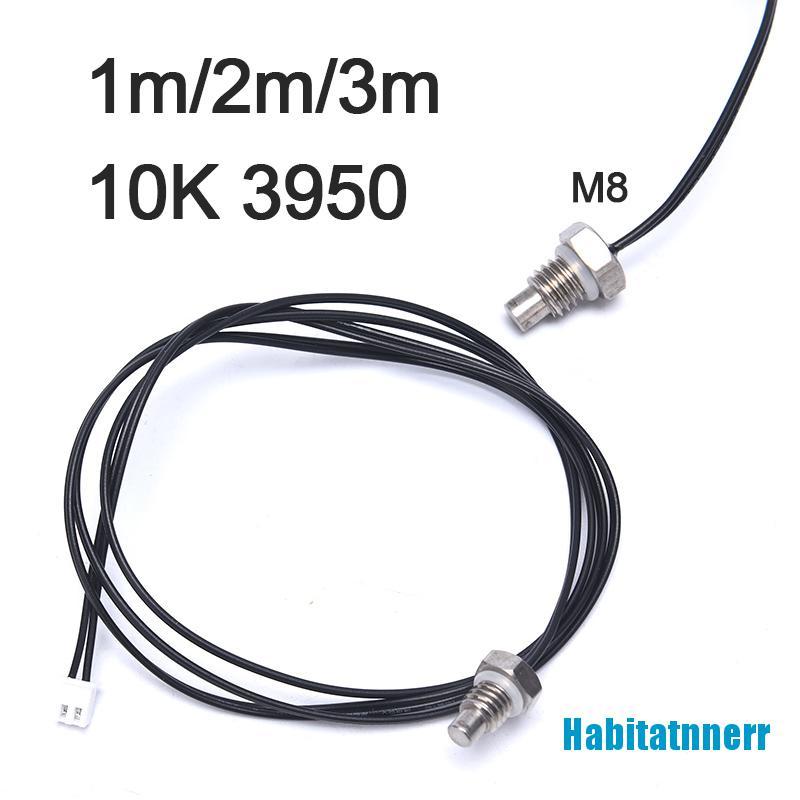

Dây Cáp Cảm Biến Nhiệt Độ Httntc 10k M8 1 / 2 / 3m Chống Thấm Nước

Giới thiệu Dây Cáp Cảm Biến Nhiệt Độ Httntc 10k M8 1 / 2 / 3m Chống Thấm Nước

Welcome to 【Habitatnnerr Store】 ,We insist on to sell the best quality items!!!Features:
Easy installation, fast response.
Applicable Category: sensor temperature sensitivity response rapid.
Waterproof stable performance, used in water heaters, boilers and other measurement temperature environment.

Specifications:
Package (filling) sealing material: epoxy resin
Nominal zero power resistance R25(KΩ): 10k±1%
B25/85 value (K): 3950±1%
Dissipation factor (mW/°): ≥2.2
Thermal time constant (S): ≤15
Working temperature: -50°~+125°
Insulation resistance(MΩ): ≥500
Dielectric Strength(V/AC): 1500
Cable length: approx. 1m/3.28 ft, 2m/6.56 ft, 3m/9.84ft

Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.

Package include ;
1x Temperature Sensor
