Đầu Đọc Thẻ Nhớ 5.25 Inch Sata / Esata, Usb 3.0

Giới thiệu Đầu Đọc Thẻ Nhớ 5.25 Inch Sata / Esata, Usb 3.0

Hard Disk Interface: 1 x SATA Port(less than equal 1.5GB/S), 1 x eSATA Port (less than equal 3GB/S | Support Hot Swap), 1 x 4 Pin Power Port (DC 12V/5V), Compatible with all SATA/eSATA HDD/SSD hard disk
Audio Interface: 1 x Microphone Port, 1 x Audio Port (for Earphone / Headphone / Speaker)
Integrated Card Reader: SD Card, TF (Micro-SD), MS (Memory Stick Duo/Pro), CF (Compact Flash), M2 (Memory Stick Micro), MMC (Multi Media Card); Please unlock SD card before insert. Don't bend CF card pins when insert.
High Speed Data Transfer: USB 2.0 (480MB/s Max), USB 3.0 (5GB/s Max), SATA (1.5GB/s Max), eSATA (3GB/s Max), with LED power indicator
Operating System: compatible with Windows, Linux and Mac OS
Type: 525F
2* USB 3.0 Hub (less than equal 5GB/S)
6* USB 2.0 Hub (less than equal 480MB/S)
1* Earphone
1* Microphone
1* LED Indicator

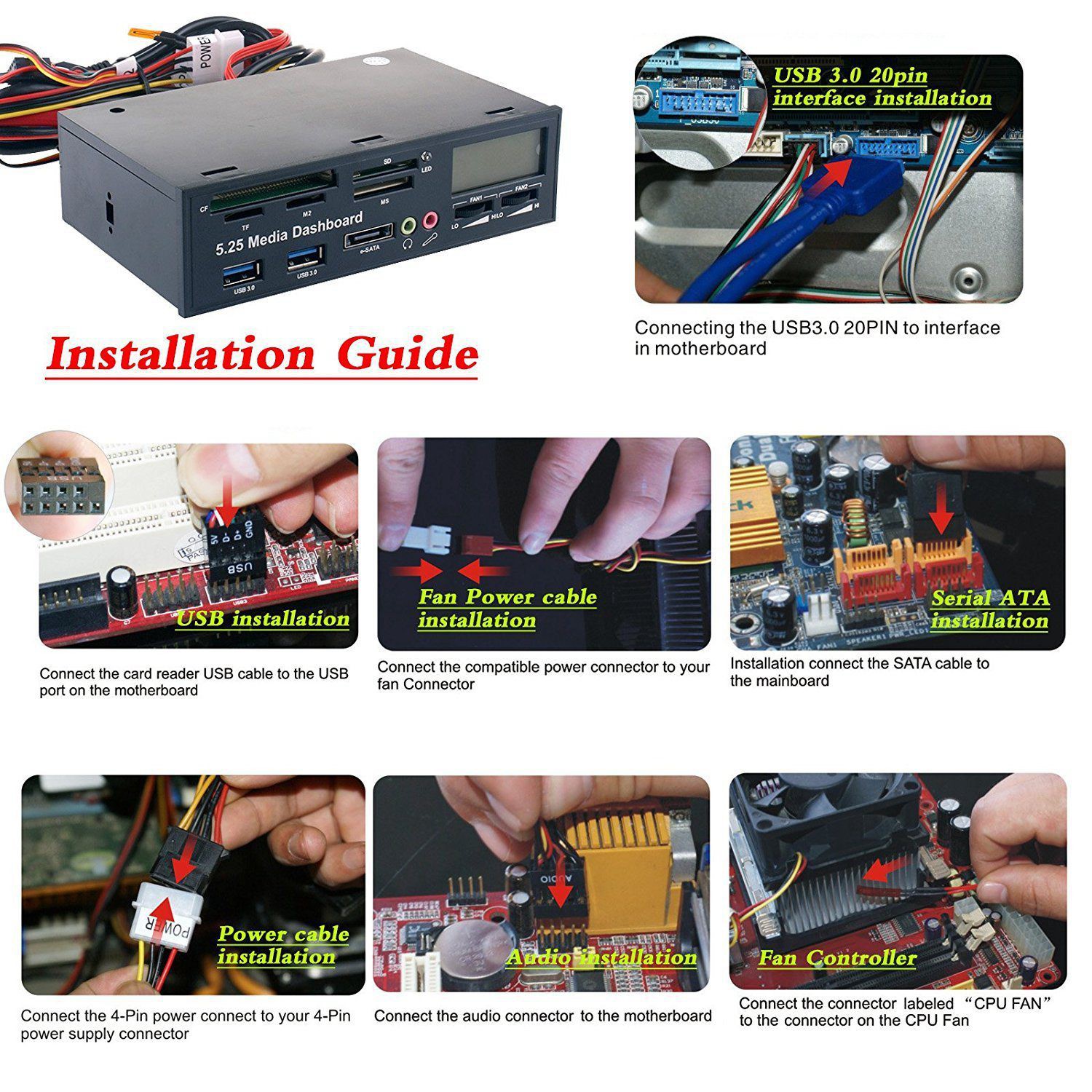

Easy to Use
No driver required | but require a screwdriver - easy to install.
Please install PCI-E / USB 3.0 card in case mainboard without such support.
Please set audio output from front panel after installation.
For Gigabyte motherboard, we recommend not connect power cord back in white molex plug to avoid fatal problems.
Connectors & Cables
Cable management goes well due to long cables. The cables are solid fixed, if you do not need them, you can't disconnect them.
1* USB 3.0 | 50cm (20 Pin | Please install USB 3.0 driver)
2* SATA | 45cm
1* USB 2.0 | 50cm (Dupont Cable | 5V)
1* Audio | 50cm (AC97)
1* Power | 35cm (4 Pin | DC/12V/5V | Optional | Supply additional power for USB device)
LED Indicator
Power on, red LED lit.
Reading card or USB device, red LED flash.
Product Size: 145 x 90 x 40mm,
Weight: 300g, (DO NOT Inverse 4 pin power connector).
colour: black
Material: plastic
Package Contents:
1 x 525F 5.25 Inch PC Multifunctional Dashboard Media Front Panel
1 x User Manual
4 x Screws
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
