Đầu Đọc Thẻ 14443a Ic Với Giao Diện Usb + 5 Thẻ Key Fob 1

Giới thiệu Đầu Đọc Thẻ 14443a Ic Với Giao Diện Usb + 5 Thẻ Key Fob 1

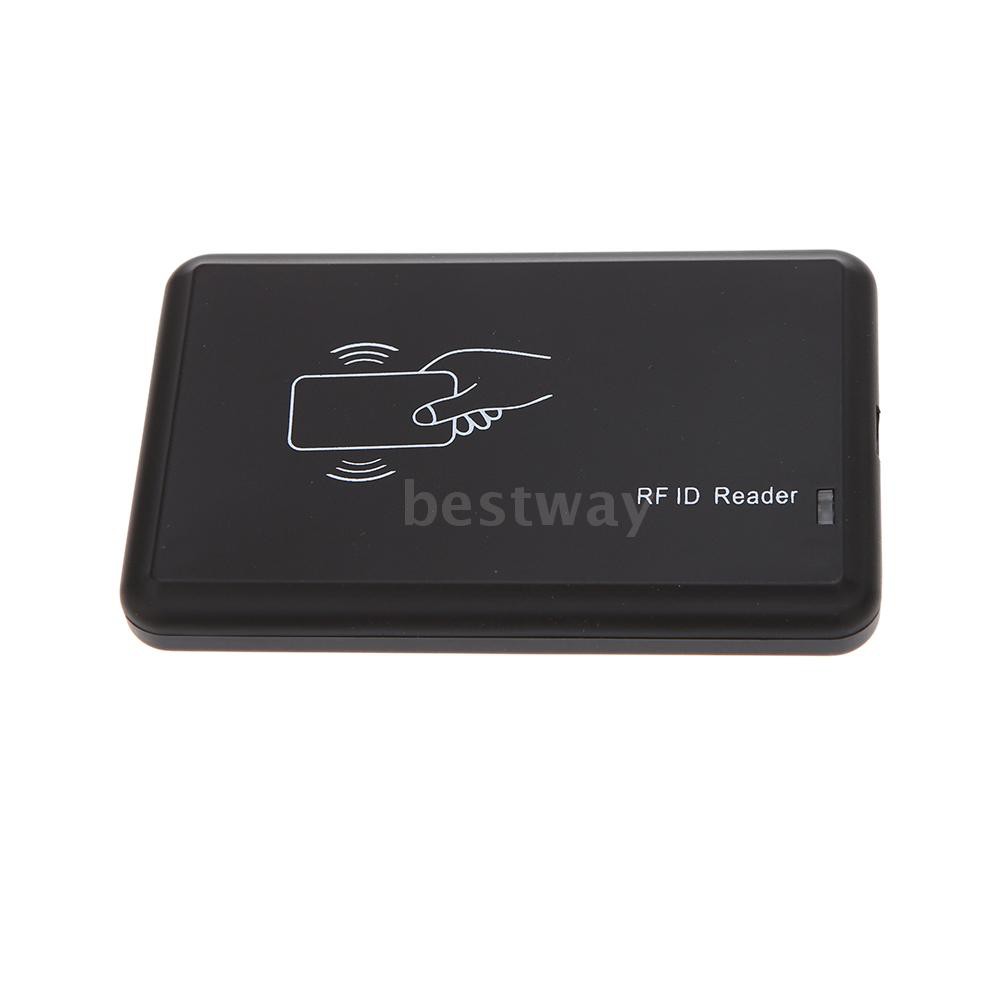

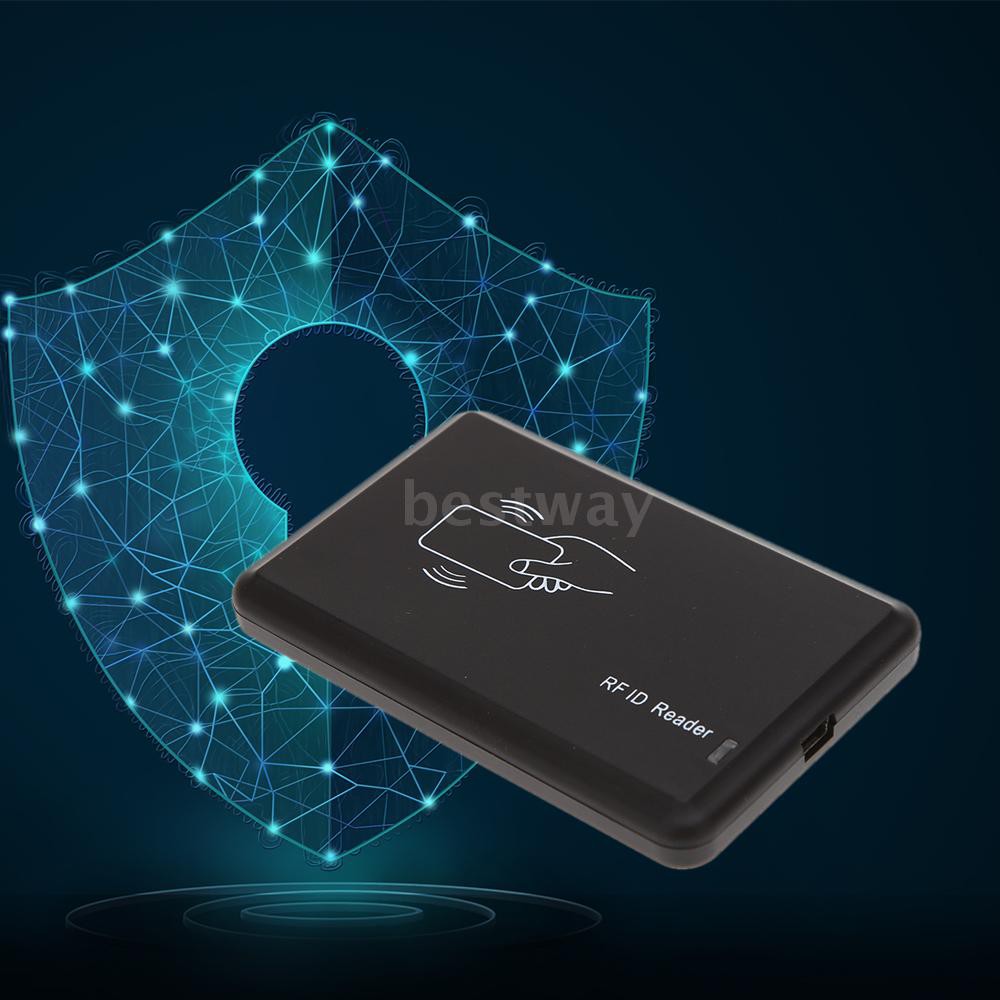

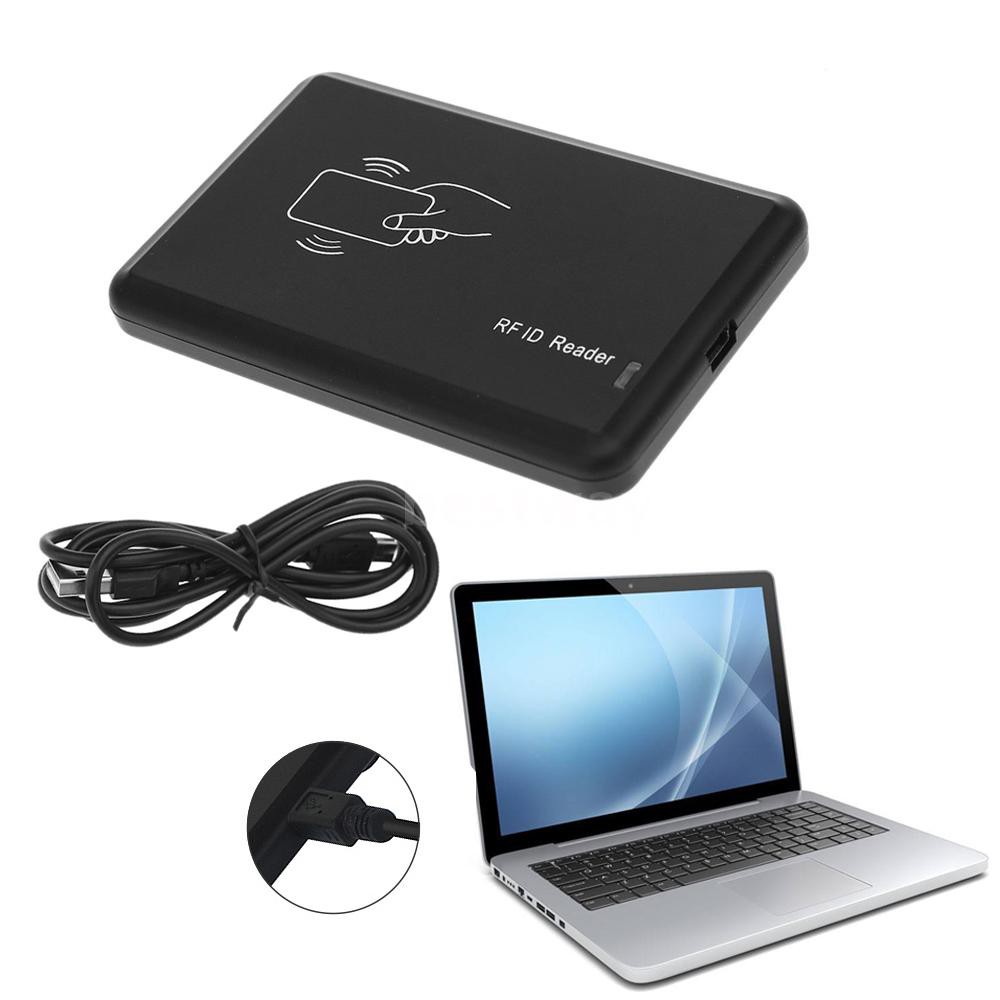

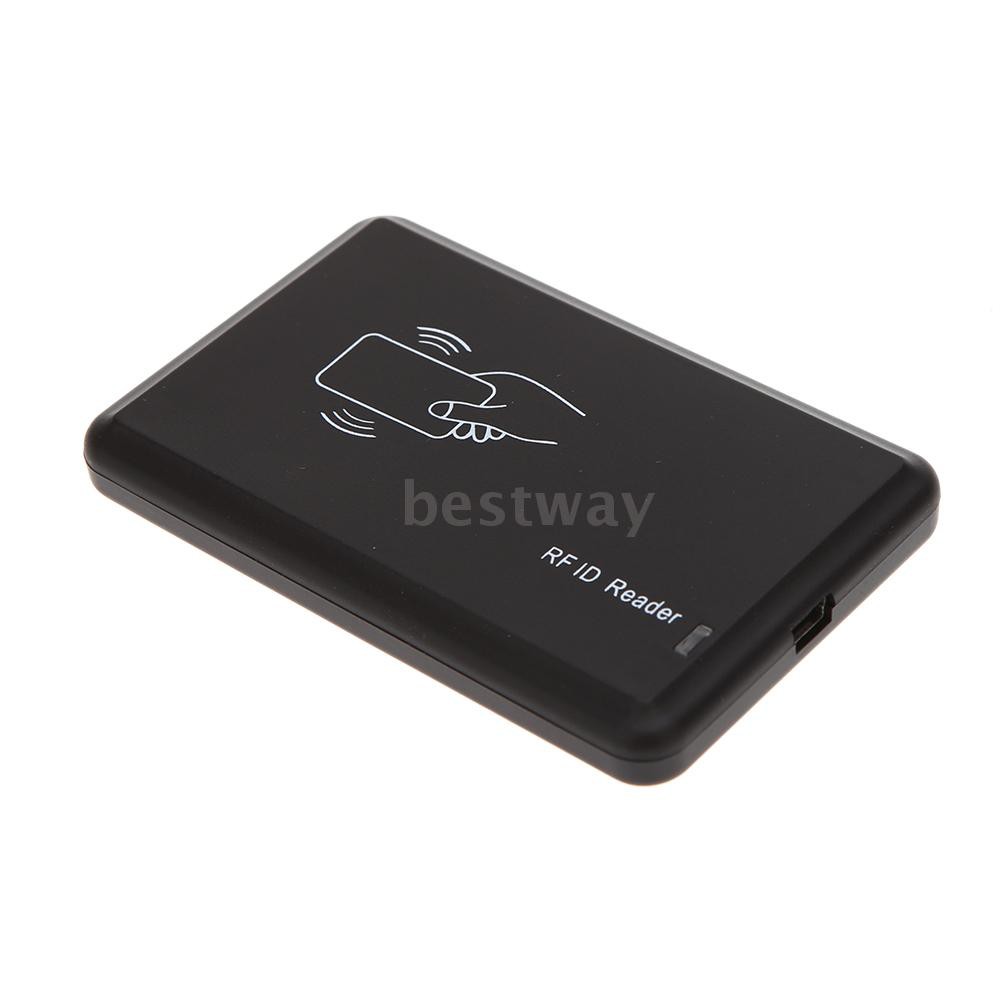

Contactless 14443A IC Card Reader with USB Interface 5pcs Cards + 5pcs Key Fob 13.56MHZ RFID

If you want to see more, please click #bestway

It's small in size with USB interface. It doesn't need any drivers. It reads for Mifare 14443A card physical serial number and sends data via USB interface. The data input just likes from keyboard.

Features:
USB interface, don't need driver.

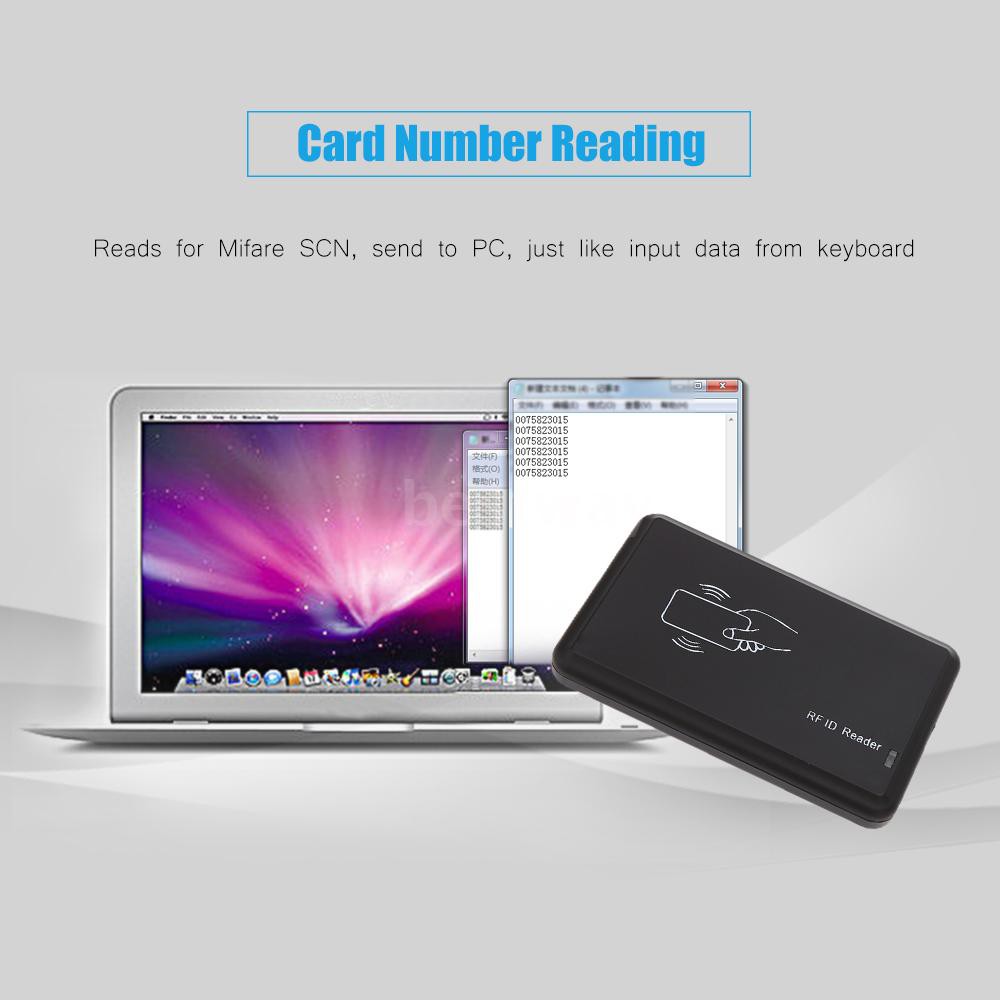

Reads for Mifare SCN, send to PC, just like input data from keyboard.
Support for MIFARE, S50, S70.

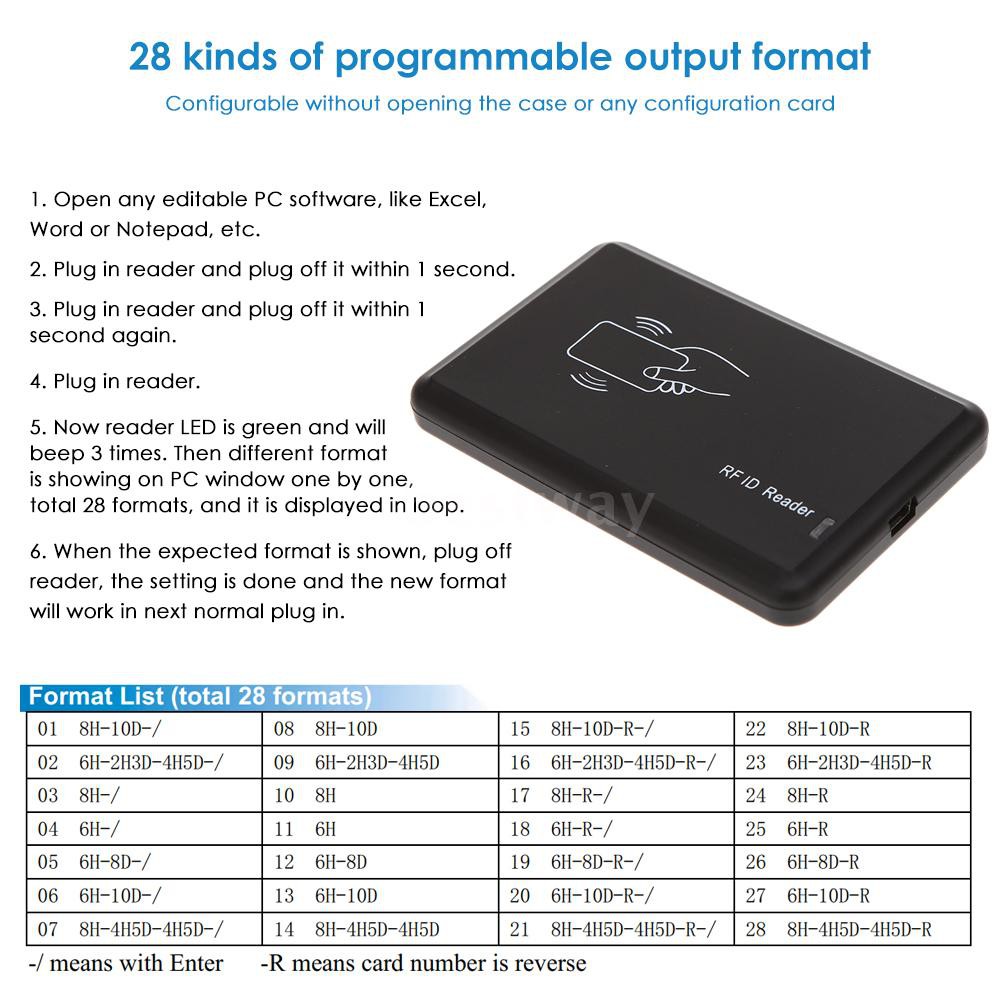

28 kinds of programmable output format.
Configurable without opening the case or any configuration card.
Configure Process:
-Open any editable PC software, like Excel, Word or Notepad, etc.
-Plug in reader and plug off it within 1 second.
-Plug in reader and plug off it within 1 second again.
-Plug in reader.
-Now reader LED is green and will beep 3 times. Then different format is showing on PC window one by one, total 28 formats, and it is displayed in loop.
-When the expected format is shown, plug off reader, the setting is done and the new format will work in next normal plug in.

Specifications:
Color: Black
IC Card: 5pcs
Key Fob: 5pcs
Power Source: USB
Interface: USB, 106Kbit/s, (RS232, 9600,N,8,1)
Working Distance: Up to 8cm
Frequency: 13.56MHz
Temperature: -30 Degrees Celsius to +60 Degrees Celsius
Humidity: 5%-95% Relative Humidity Non-condensing
Audio/Visual Indication: LED and Buzzer
Output Format: Total 28formats, refer to the PCB in the reader
USB Cable Length: Approx. 120cm / 47in
Item Size: 95 * 61 * 10mm / 3.74 * 2.4 * 0.4in (L * W * H)
Item Weight: 36g / 1.3oz
Package Size: 14 * 9 * 4cm / 5.5 * 3.54 * 1.57in (L * W * H)
Package Weight: 151g / 5.33oz

Package List:
1 * IC Card Reader

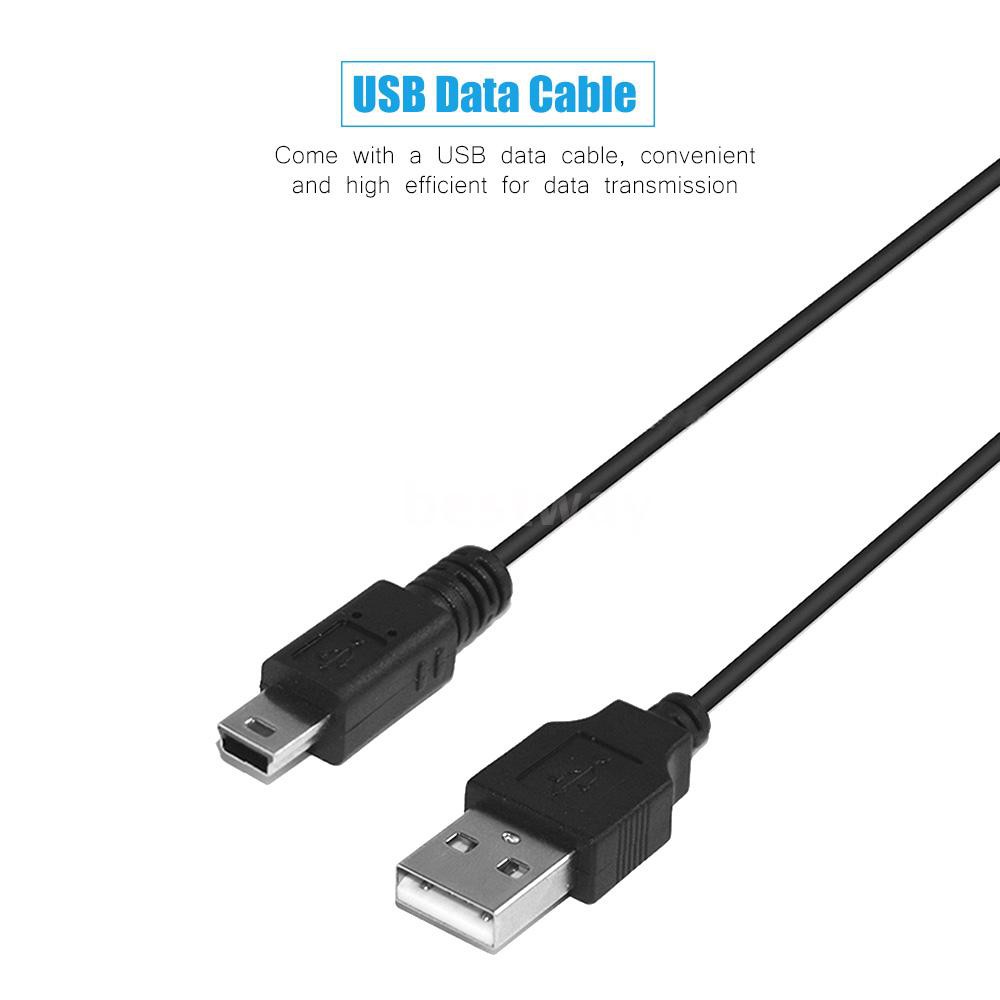

1 * USB Cable

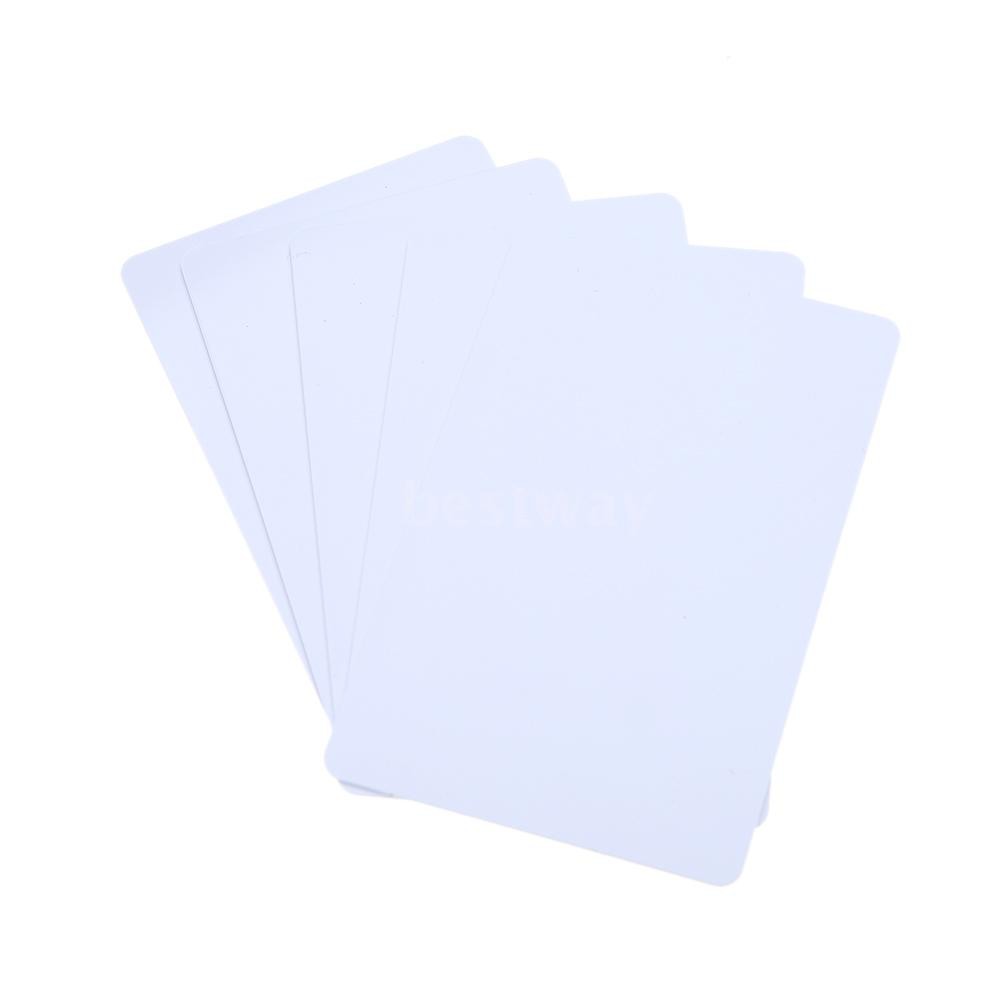

5 * IC Cards
5 * Key Fob
