Version:
With relief ground knuckle form profile.
Up to size 20 with end cutting teeth profile for plunging.
The wide teeth lands permit multiple re-grinding without losing the profile.
Sizes 6M to 25M − MID mills: dimensions to factory standard,which is between DIN 844 stub
and DIN 844 long.
Economy version.
Tool material: HSS Co 8
Norm: DIN 844 B
Milling profile: NR
Through-coolant: false
Tolerance nominal ⌀: js12
No. of teeth Z: 4
Helix angle: 30 degrees
Direction of infeed: horizontal, oblique and vertical
Skaft: DIN 1835 B to h6
No. of teeth Z: 4
Flute length Ls
: 38 mm
Overall length Ltot: 104 mm
Shank ⌀: 20 mm

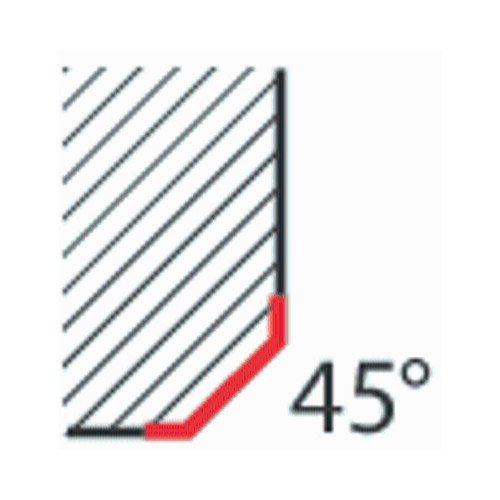

Corner chamfer width at 45°: 0.6 mm
Feed fz
for slot milling in steel < 750 N/mm2
: 0.031 mm
Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Tuy nhiên tuỳ vào từng loại sản phẩm hoặc phương thức, địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, ...
Thương hiệu | Holex |
---|---|
Xuất xứ thương hiệu | Đức |
Chất liệu | Thép HSS-Co8 |
Model | 20 |
Kích thước | 120x20mm |
Xuất xứ | Trung Quốc |
SKU | 7764705531759 |
