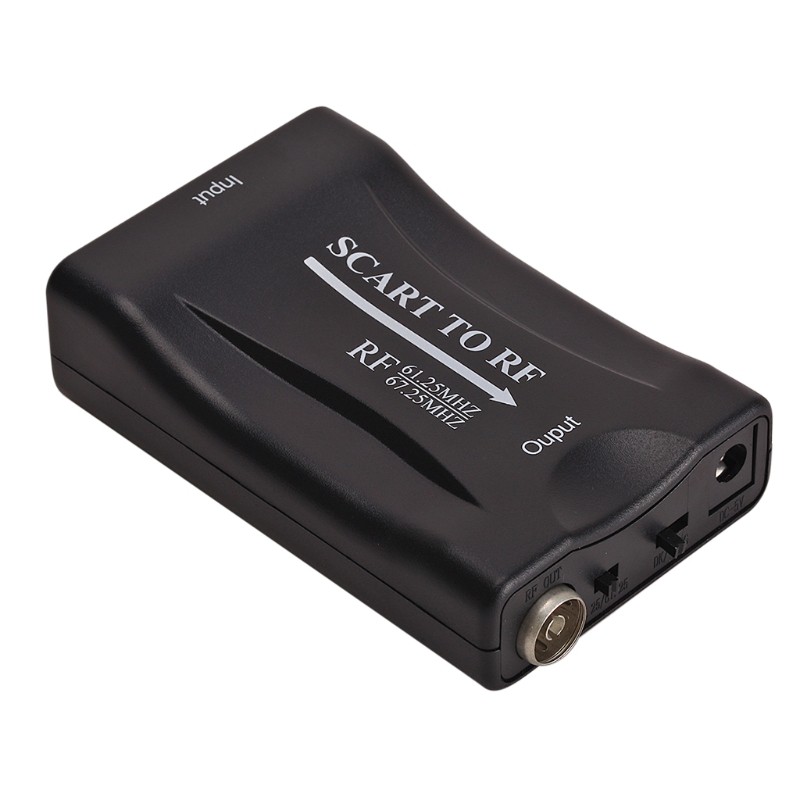

Bộ Chuyển Đổi Scart Sang Rf67.25mhz 61.25mhz

Giới thiệu Bộ Chuyển Đổi Scart Sang Rf67.25mhz 61.25mhz

Description:

Features:
-Product Classification
SCART to RF can convert SCART interface into radio frequency RF output.
-Function introduction:
The RF converter can easily convert the interface you need into a radio frequency RF output, and modulate your interface into an RF high frequency output. The reduction in transmission loss can increase your original distance of 1-2 meters to 100-1000 meters or more. far. At the same time, it can solve the insufficiency of the old TV interface and make full use of the TV's tuner interface. You can put your DVD/set-top box/network box/game console and so on! ! Easily convert to RF radio frequency output. Imported RF modulation chip output is more stable PLL frequency phase-locked RF output is more stable frequency output will never shift.
-Technical specifications:
RF output frequency: 61.25MHZ and 67.25MHZ can be switched. (Customers can customize other frequencies 40-900MHZ)
RF output gain: 80DB
RF system output: PAL DK default output (I/BG/M/N/L sound system output can be customized) Customers can customize SECAM and NTSC systems corresponding to the corresponding country.
Power supply: 5V/500MA
Power: less than 0.5W
-Use and connection:
Connect the RF converter to the relevant interface, and connect the wire to get electricity. Plug in the RF cable and connect the RF OUT of the unit to the RF IN of the cable/antenna of the TV. Turn on the TV and switch to the analog TV status. Press the menu button to find the automatic or manual search. The corresponding 61.25MHZ and 67.25MHZ The frequency is searched out. The sound system needs to be set to correspond to PAL DK. New smart TVs generally automatically recognize the sound system. The old TV needs to be set to the corresponding DK system, otherwise there will be noises in the image and sound.

Package Included:
1x RF Video Converter
1x RF Cable
1x USB Cable
