Bộ Chia Cổng Mạng Ethernet Cho Camera Ip

Giới thiệu Bộ Chia Cổng Mạng Ethernet Cho Camera Ip

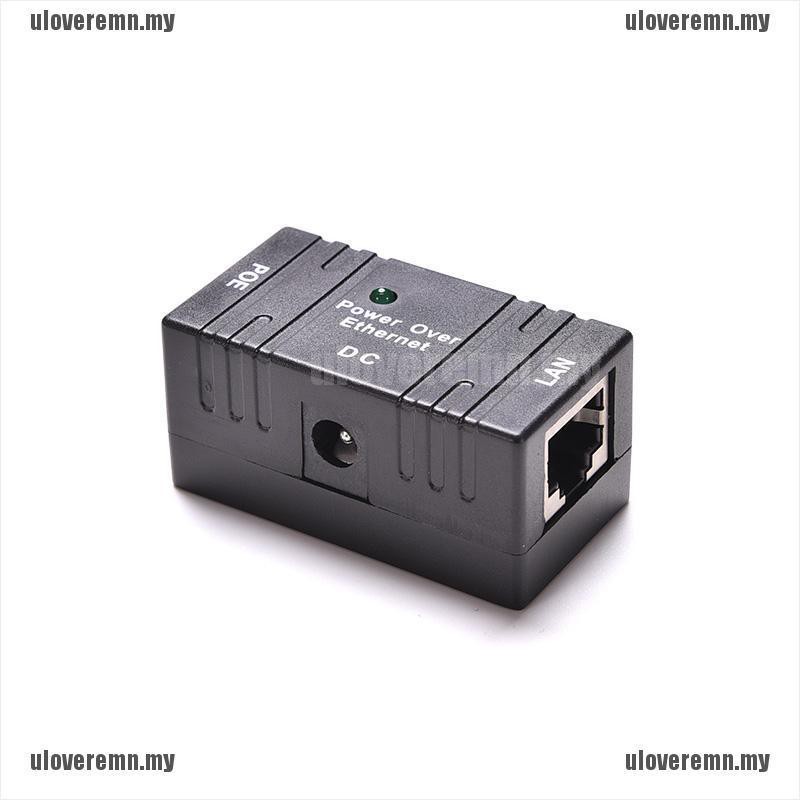

[uloveremn]Passive PoE Injector Splitter over Ethernet Adapter For IP Camera LANFeature:
-To achieve best performance of a Wireless LAN, the location of
Access Point(AP) must be carefully chosen.In most cases, finding
a power supply for AP is a common obstacle.
-Power over Ethernet(PoE) technology provides the ideal power
solution to help overcome these obstacles.In Ethernet, four pairs
of C5 or C5E twisted pairs are used as the medium for transmission.
The actual data transmission, however,only takes up 4-pairs of wires
(pairs 1-8). PoE technology utilizesthe remaining pairs(pairs 4-5 and
7-8 to conduct electricity.

Specificiation:
-Product Name:POE Injector / Splitter
-Data PIN:1/2,3/6
-Power PIN:4/5+ & 7/8-
-Data in:Connects PC/HUB/Switch
-Dimensions:50mm*25mm*25mm
-Case of material:ABS 94V-0
-Ethernet Data rate:10/100 Mbp
-Ethernet Cable:TIA/EIA 568 Cat.5
-Ethernet Cable Connector:RJ-45
-Operating Temperature:0 - 40 Degree
-Storage Temperature:-40 - 70 Degree
-Operating Humidity :10% to 80% RH
-Storage Humidity:5% to 90% RH

Note this one is for 10M/100M,without adapter, with out earthnet and power
connectiong cables.

Package include
1 X PoE injector Splitter
