Bộ Chia Cổng Hdmi V1.4d View 4k 3d 1080p 1 Ra 2 Đầu Cắm Us

Giới thiệu Bộ Chia Cổng Hdmi V1.4d View 4k 3d 1080p 1 Ra 2 Đầu Cắm Us

^^^^^^^^^^^^^^^^^^^^^^^^^^


Technical Specification:
Device Type: 1×2 HDMI Splitter
Input Video Signal: 0.5-1.0 volts p-p
Input DDC Signal: 5 volts p-p(TTL)
Power Supply: DC 5V/2A
HDMI Version: 1.4b
Max Single Link Range: 1920×1080, 1080P, 3D 1080P / 24Hz
HDMI Resolution:: 480i/576i/480p576p/720p1080i/1080p/4K
Operating Temperature: -15 ~ +55
Max. Cable Extension: 15m AWG26 HDMI Standard Cable
Power Adapter: Input: AC (50HZ,60HZ) 100V-240V;Output:DC5V 2A
Digital audio format: DTS-HD / Dolby-true-HD / LPCM 7.1 / DTS / Dolby-AC3 / DSD
Connect
Operating Temperature: -15 ~ +55
Dimension: 65 x 62 x 22mm(2.55*2.44*0.87inch)
Colort: Black
How to Use ?
Connect the input and output monitors to the HDMI allocator.
See connection image.
Connect the DC 5V power to the splitter.
When the input source and output monitor are connected and opened, the corresponding LED will turn on.
A charging power source must be connected to the 5V USB power before using the HDMI allocator
Note that a higher voltage power source may damage the splitter.
Package Included :
1 x 2 Port HDMI Splitter
1 x Power Adapter
1 x User Manual

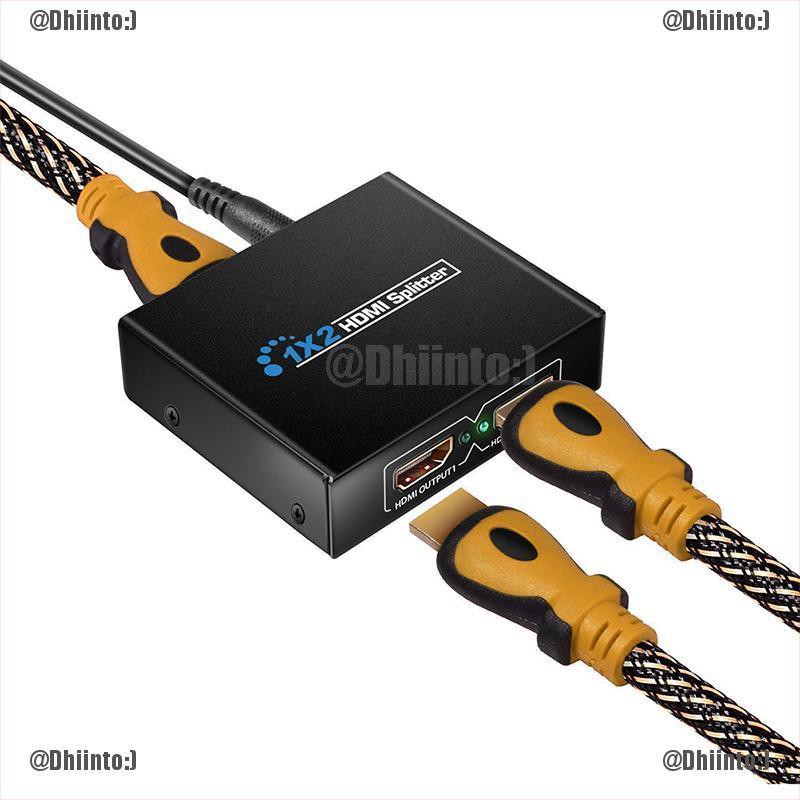

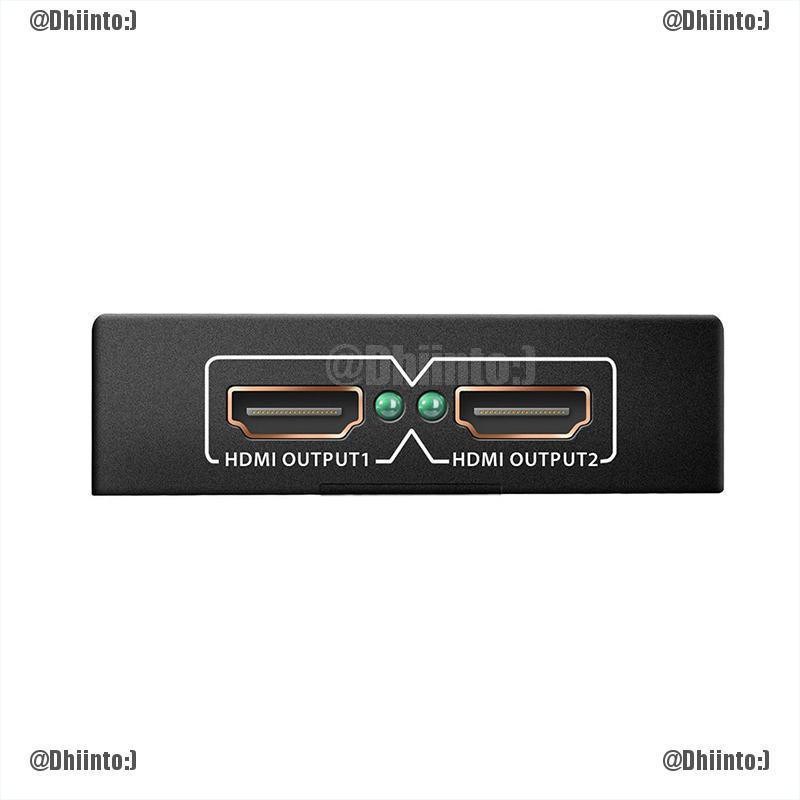

Hình ảnh sản phẩm
