CHANNEL POWER POWER Bảng Mạch Khuếch Đại Công Suất Cao 107ele 2.1 Tpa3116D2 2x80w + 100w

Giới thiệu CHANNEL POWER POWER Bảng Mạch Khuếch Đại Công Suất Cao 107ele 2.1 Tpa3116D2 2x80w + 100w

107ele 2.1 Channel High Power Digital Power Amplifier Board Tpa3116D2 2*80W+100W
Features:
1. Excellent quality: high quality material, safe and durable.
2. Stable performance: with better noise performance, excellent output drive capability and relatively high small signal bandwidth, large power supply voltage range.
3. High fidelity: When used as an audio amplifier, the tone is warm and the fidelity is high.
4. Wide range of uses: suitable for high quality and professional audio equipment, instruments, control circuits and telephone channel amplifiers.


Descriptions:
1. This power amplifier module samples two original TPA3116D2 digital power amplifier chips, one of which is used for power amplification of the left and right channels, and the other is bridged with the front of the NE5532 to drive the subwoofer. It has the characteristics of small size, high efficiency, high power and small heat.


Specifications:
Material: electronic components
Working voltage: DC24V recommended (range 12~26V)
Output power: 80W*2+100*1 (subwoofer)
Output load: 4-8Ω speaker
Channel: 2.1 channel (left channel + right channel + subwoofer)
Color: red
Size: 101*70*28mm


Package included:
1 x 2.1 channel audio amplification module


Notes:
Please allow 0-2mm error due to manual measurement, thanks for understanding.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, thank you!

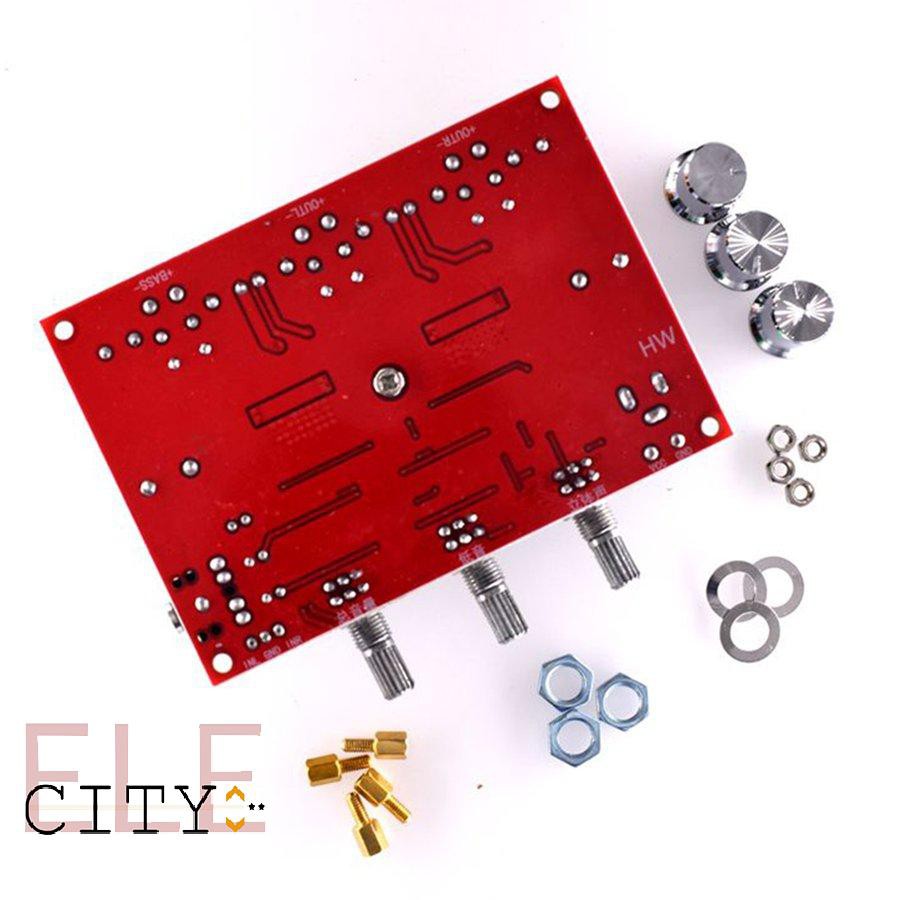

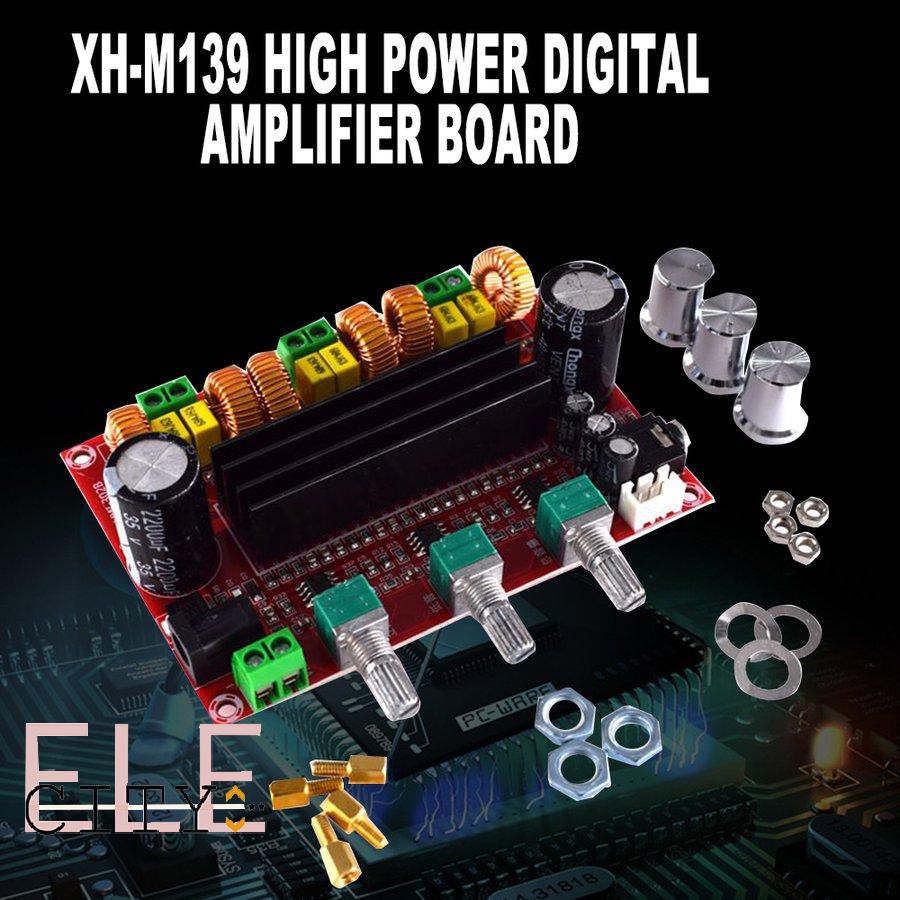

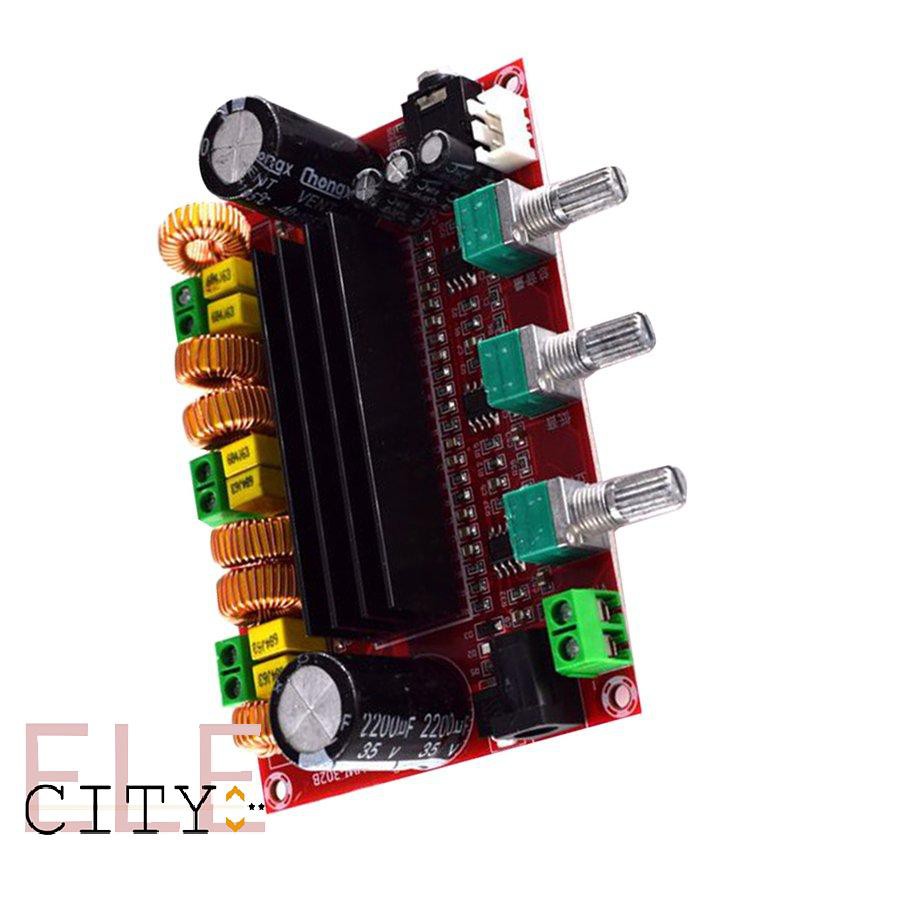

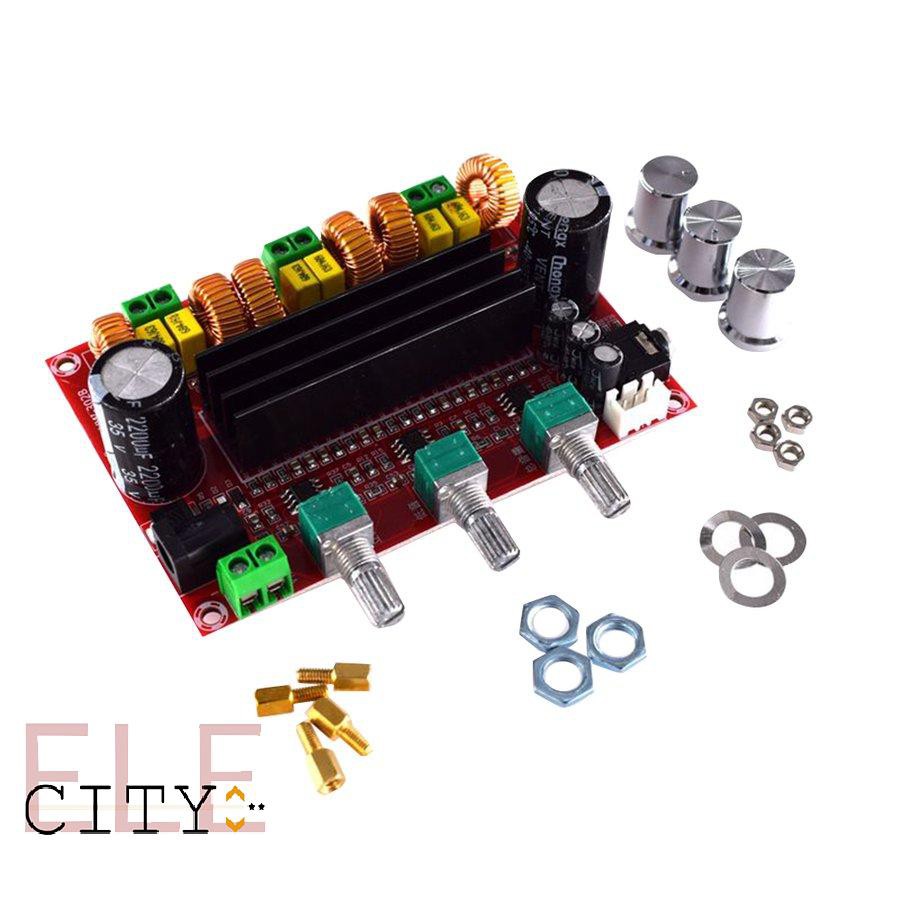

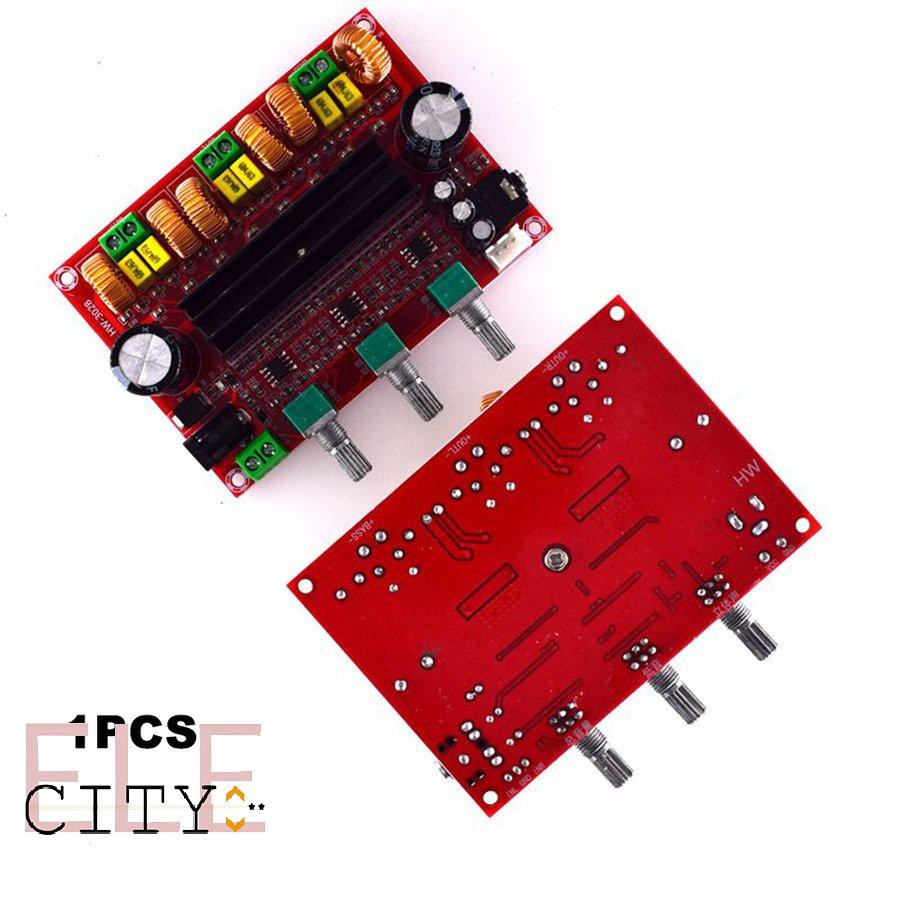

Hình ảnh sản phẩm
