CHANNEL CHANNEL Bảng Mạch Điều Khiển 6 Kênh Xdvn 110-240v

Giới thiệu CHANNEL CHANNEL Bảng Mạch Điều Khiển 6 Kênh Xdvn 110-240v

Momentary, Self-locking, and Interlock, 3 Commands.

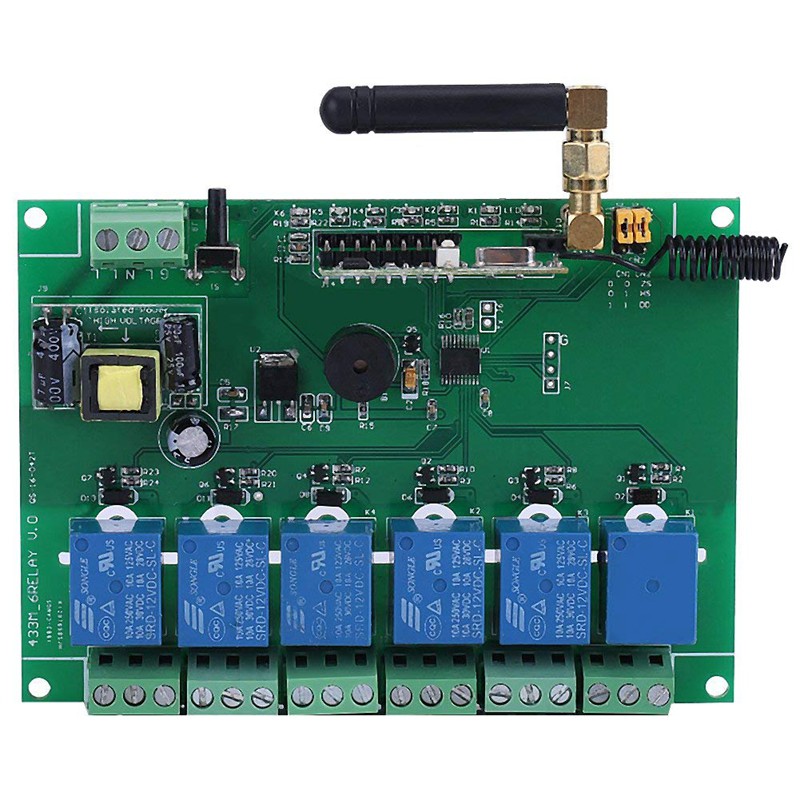

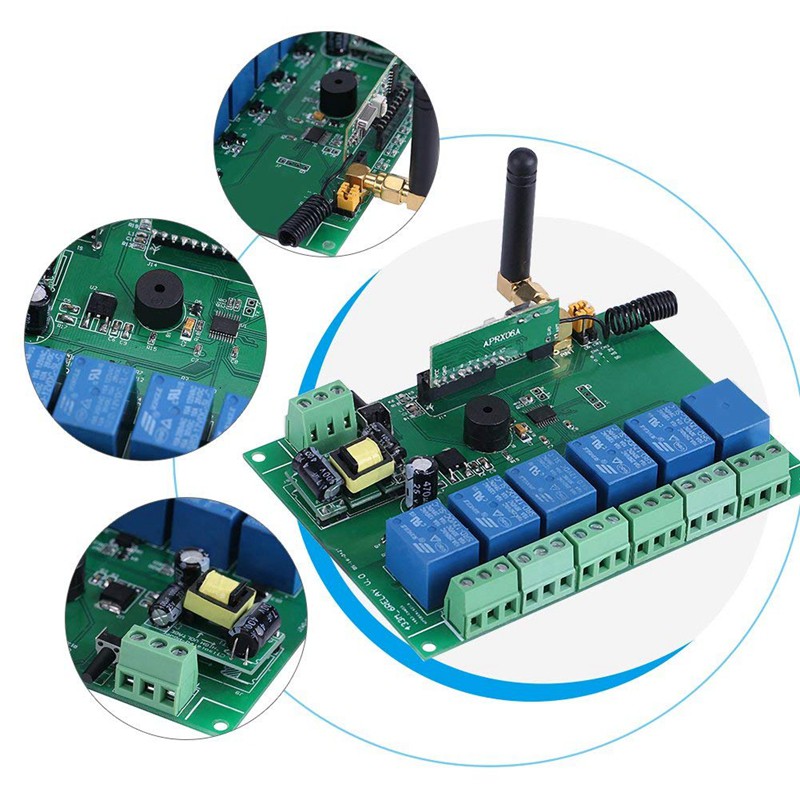

This 6-channel multifunction RF receiving controller is for sending open signal and close signal to 6 relays.
Applicate for relays include fields of electronically operated gate, windows, lifting appliance, switch, lifter, industrial control, security industry etc.
High stability, and low power.
Convenient using, just learn to match the code of the remote controller and the receiving controller.
Operating voltage: 110-240V(input port)( L connect positive, N connect negtive, G connect GND)
Operating current: About 30mA x 6(Relay close condition)
Static current: About 4mA x 6(Relay open condition)
Work e: momentary, self-locking, interlock
Working indication light:
Blue light: (relay switch indicator light, independently indicated on each road)
Red light: (signal receive light)
Output e: mainly used as a switch
Receive distance: Approx. 50-1000meter
Max power: 2500W x 6

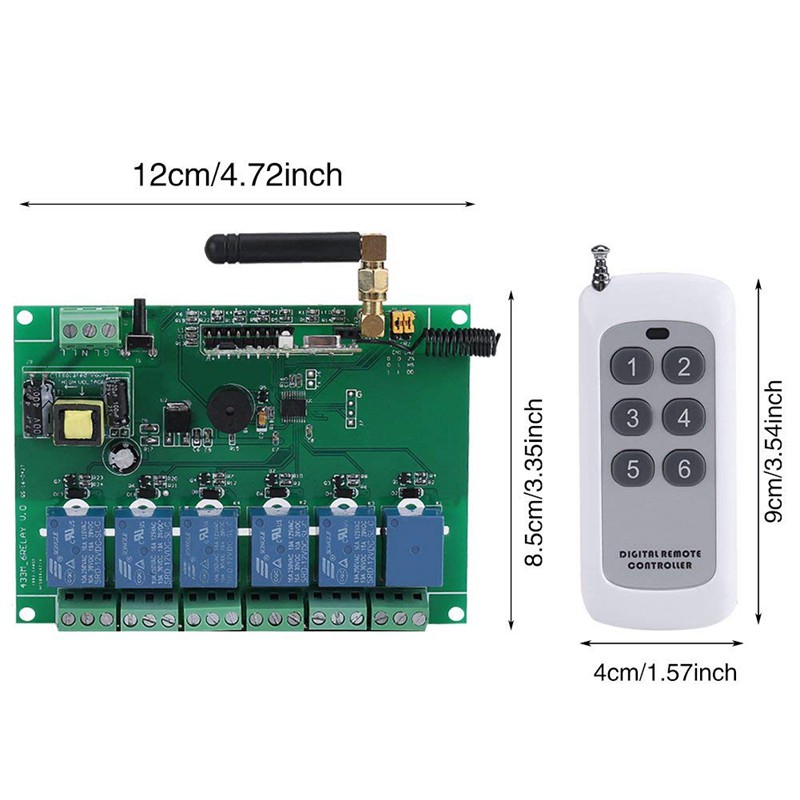

Size: 130*10*30mm
Remote size: Approx. 4 x 9 cm / 1.57 x 3.54inch
Weight: 171g
Color: as shown
Material: pc
Momentary & Self-locking & Interlock:
Self-locking: connect the jump cap to point 0 0 ZS(G G) when the power is off.(Press the remote control key and the corresponding output channel state of the ule is the opposite) Interlock: connect the jump cap to point 0 1 HS(G V) when the power is off.(Press the remote control key and the corresponding channel relay will open and other channel will close) Momentary: connect the jump cap to point 1 1 DD(V V) when the power is off.(Press the remote control key and the corresponding channel relay will output. Release the key, the output will stop)

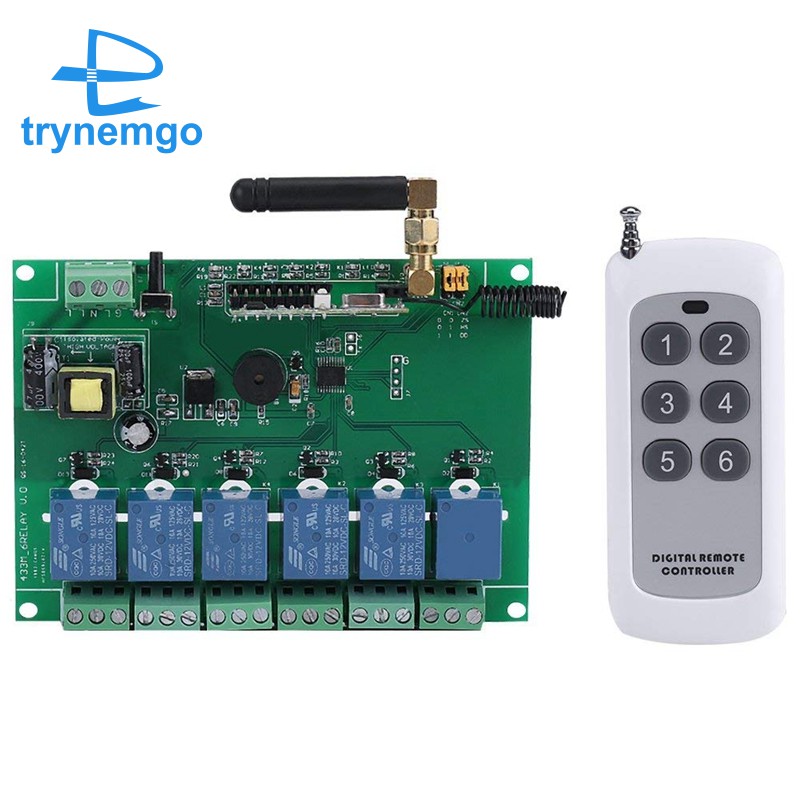

Package Contents:
1 x 6 Channel Relay ule
1 x Remote Controller
1 x Instruction manualOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Hình ảnh sản phẩm
