Giới thiệu CHANNEL Bộ Chuyển Đổi Camera Trước Và Sau Cho Xe Hơi

---------------------------------------Welcome to the store——cooltools------------------------------------------------
☛Be sure to look carefully at the product specifications before purchase

☛Be sure to ask the store owner if they have any in stock before you buy
-----------------------------------------------------------------

Feature:
1. When the engine is started, the system activates the monitor and the front camera to check the front view for 8 seconds, then turn it off.
2. When reversing, the system automatically activated rear view camera, and switches to the front view of the video camera in 15 seconds, then stops.
3. Push the control switch to enter the front mode, in this mode, the system will monitor and activate the front of the camera at all times. Exit the mode by pressing the control switch again.
4. Widely used, suitable for vehicles with monitor and reversing camera, it has no impact to oringal monitor.
5. Simple installation, no complicated tools required, it is convenient to use.

Specification:
Condition: 100% Brand New
Item Type: Camera Converter
Material: Zinc Alloy
Color: As picture shown
Operating Voltage: 9-16V
Operating Current: Application:As long as the car with a display (such as for android navigation, rearview mirror display, and the factory's own screen needs to be decoded before use), and with a reverse camera, all can be used, the ordinary display only one reversing camera signal input, after installing the switcher can be an additional front camera signal input, it had no effect on the original screen.

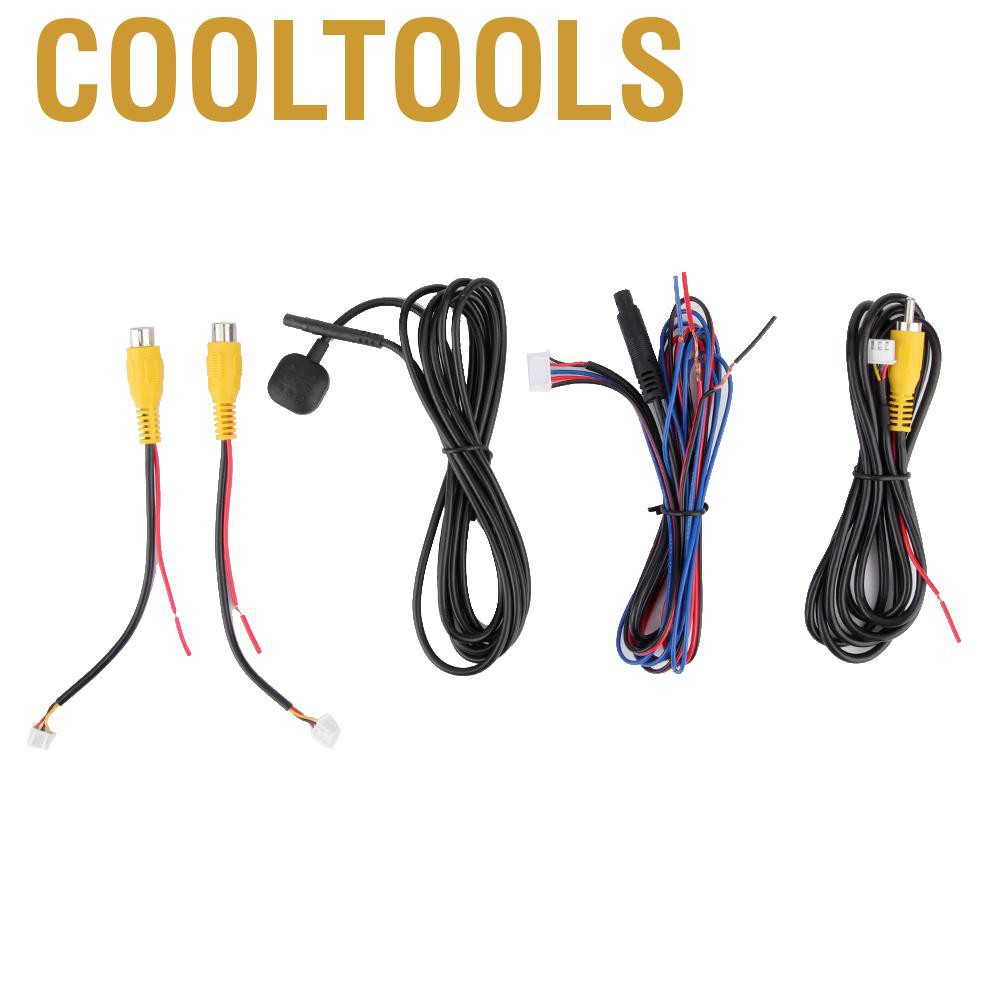

Package List:

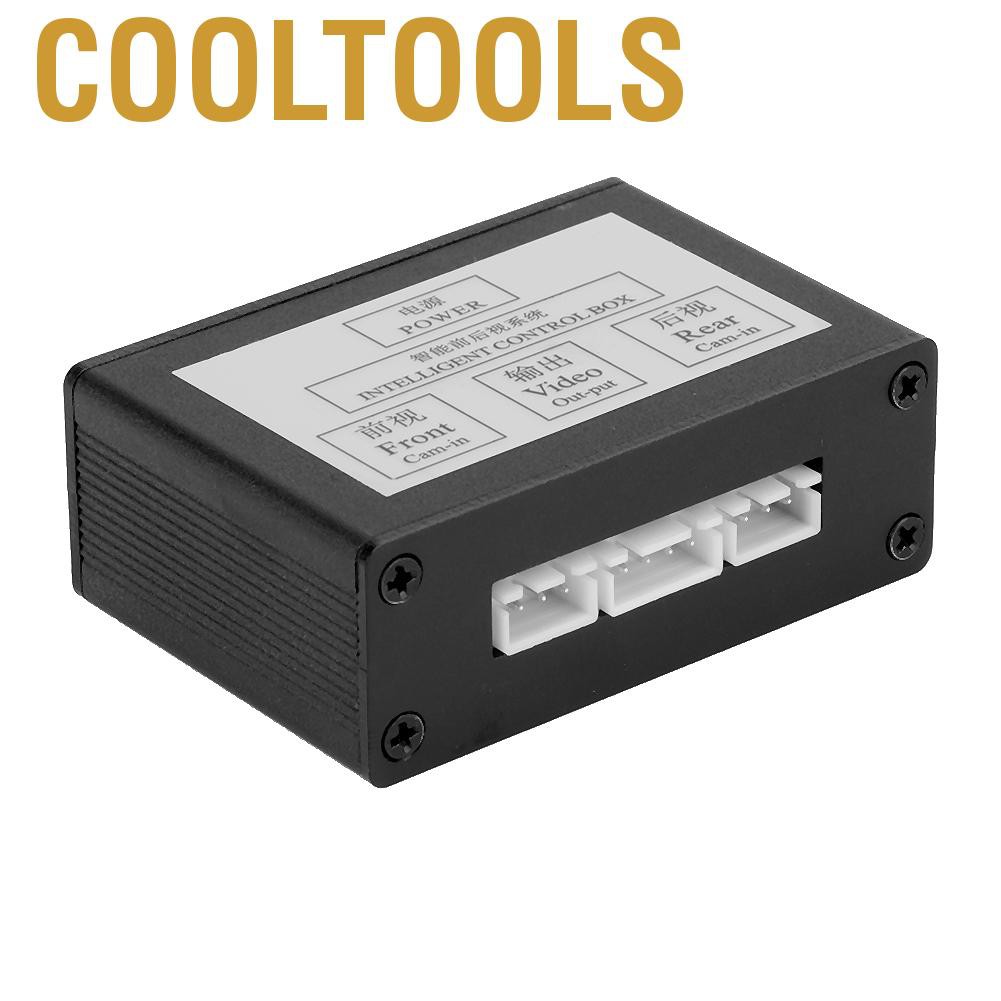

1 x Camera Converter
4 x Power Cable
1 x Insruction

Note:

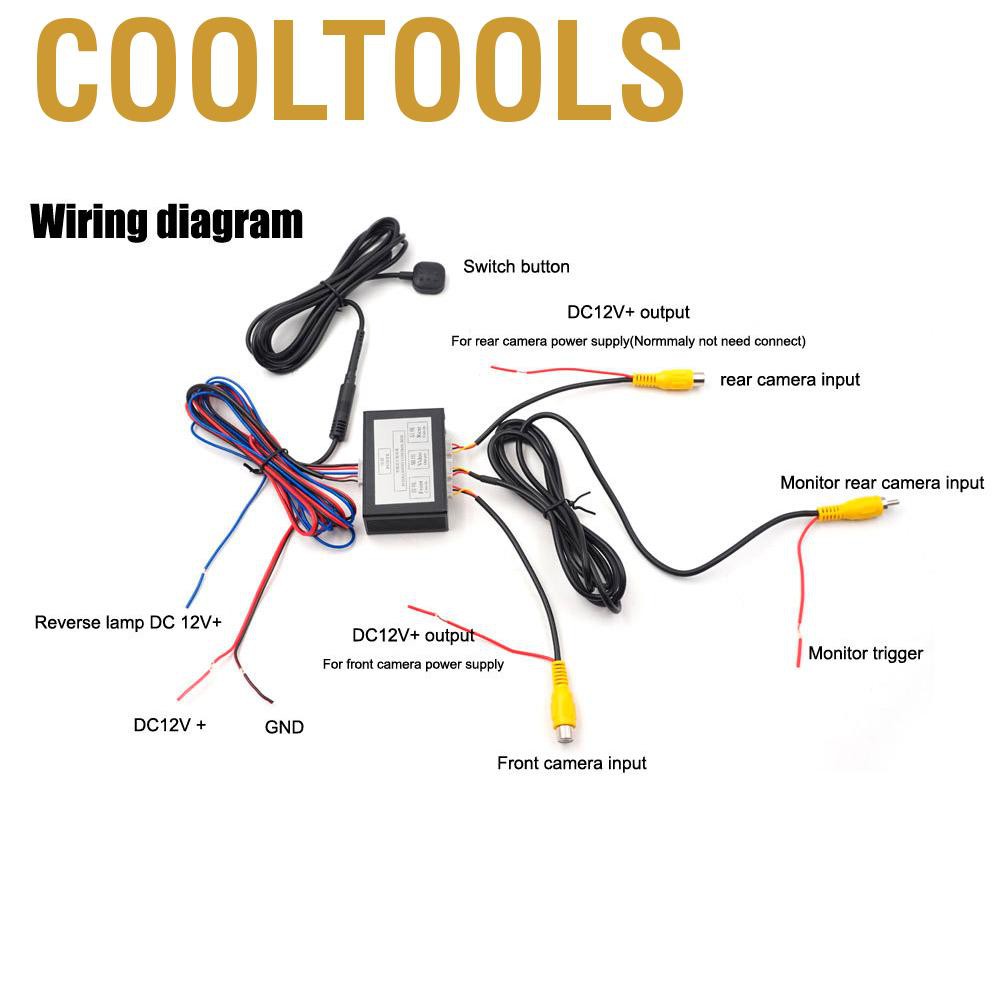

1.The small red wire at the temporary input port of the camera video is connected to the positive  pole of the front and rear camera power supply respectively.
2.The small red wire of the output port is connected to the trigger wire of the display screen. If the original trigger line of the display screen is connected to the inverted headlight, it should be disconnected from the backlight firstly and then connected to the small red line.
