Each piece will be tested for function.
Excellent performance MOS tube (nominal maximum current 280A).
Large heat sink, the maximum current can reach more than 30A.
You can directly use the hot bed output signal control of Ramp1.4 and MKS series motherboards.
5-24v digital signal control can be used.

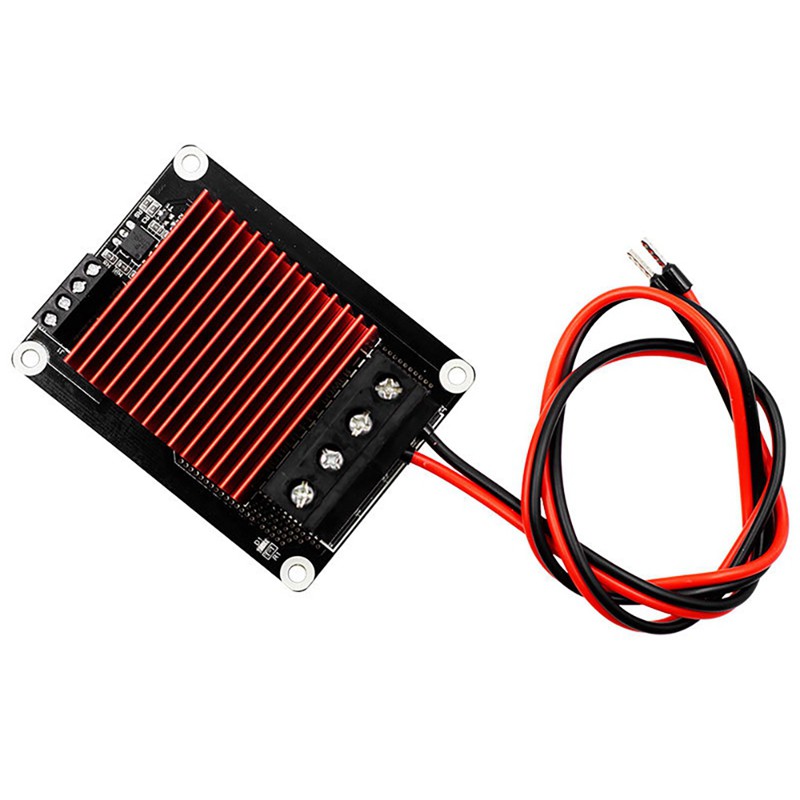

Product name: MOS ule

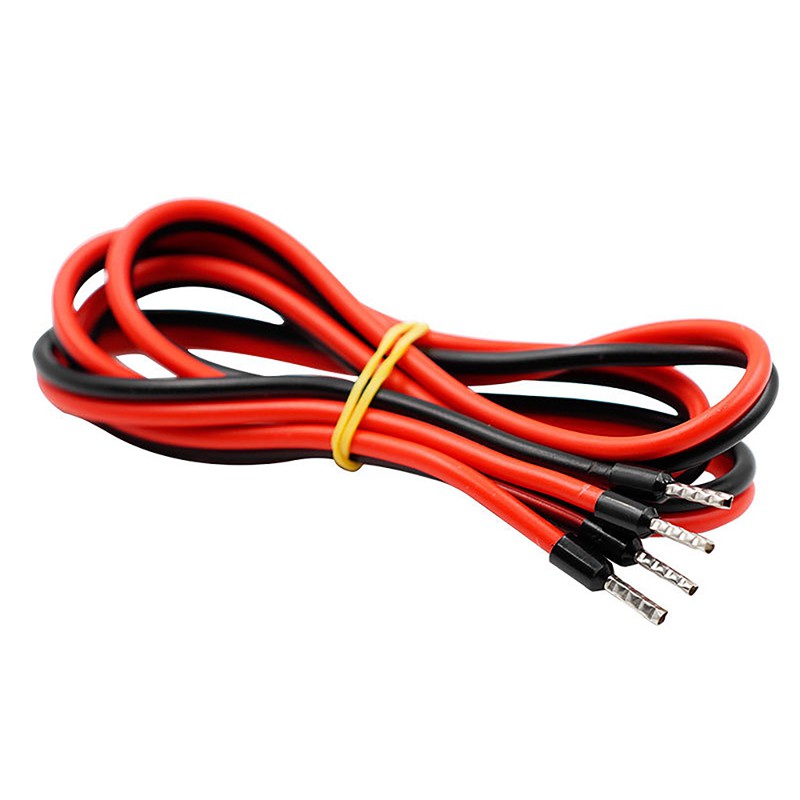

15A line: 60cm
Instructions:
Connect Power to the power supply, pay attention to the positive and negative.
Connect Hotbed to the heating line of the hot bed, pay attention to the positive and negative.
Direct digital control signal can be connected to Gnd and D8.
Connect -Bed+ to the control signal output from Ramps1.4 or MKS motherboard MOS tube.
Two sets of control signals can only be connected to one set.
Colour: black + red
Material: ABS + metal

Package Contents:
1 * hot bed/print head heating control MOS uleOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
