Card Âm Thanh 8 Kênh Pcie 7.1

Giới thiệu Card Âm Thanh 8 Kênh Pcie 7.1

Features:
7.1 CH audio system,compatible with 2.1/5.1 stereo surround sound system equipment,support 8 channel sound output.

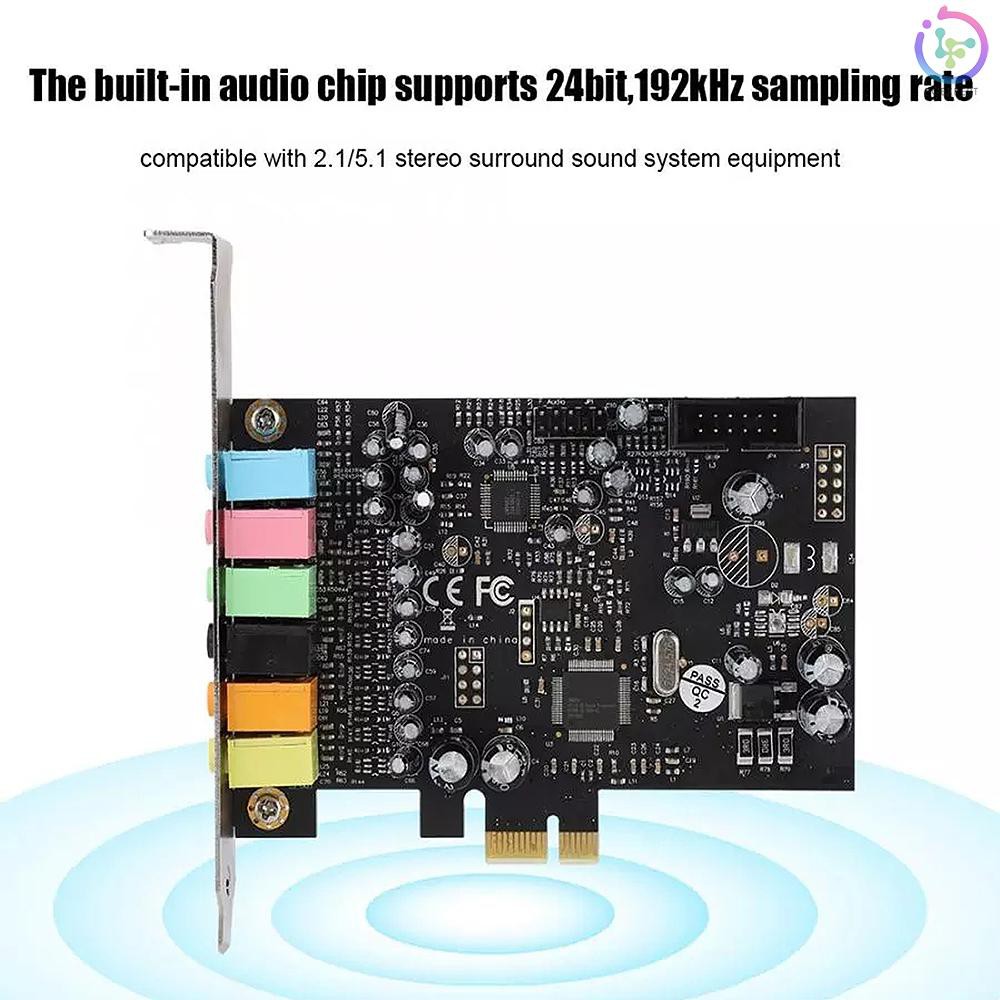

Built in CM8828 chip,support the sample rate of 192kHz,24bits for clearer voice effect.
Independent and built-in sound card,plug and play,provide 3D stereoscopic surround sound field and high quality sound.
With rich input and output ports,suitable for home theater,large 3D games,audio play,etc.
ASIO driver and advanced intelligent software interface onboard high fidelity audio (HDA) output (F_Audio)
Equipped with anti-deformation baffle,stable,firm and durable.
Specification:
Color: Black
Main Controller: CM8828 + CM9882A
Bus Type: PCI Express Rev 1.1
Audio Channel: 7.1 CH audio system, compatible with 2.1 / 5.1 stereo surround sound system equipment
Interface:
LINE: linear input, MIC: microphone input, FRONT: pre-output,REAR: Rear surround output, C/SUB: Center/Subwoofer output, SIDE: Side surround output
Embedded Mode: Embedded 8051-based MCU that transcodes HD Audio commands
Application Areas: home theater, large 3D games, audio playback, etc
Sample Rate: 44.1 ~ 192 kHz / 24 bits
Signal to Noise Ratio: 100db
Harmonic Distortion: -85db playback / -90db recording
Control Surface: Xear intelligent software exchange control interface
Working Mode: extended full duplex (simultaneous playback and recording function)
Audio Mode:
XearTMLiving 1.1, XearTMVoClear, XearTM Sonic, XearTM Surround
XearTM Pro 1.0, XearTM SingFX, XearTM Magic Voice, XearTM Audio Brilliant
Item Size: 11.1*8*2.3cm/4.4*3.1*0.9in
Item Weight: 100g/3.5oz
Package Size: 13*9.6*3.5cm/5.1*3.8*1.4in
Package Weight: 120g/4.2oz

Package List:
1*Sound Card
1*Driver Disc

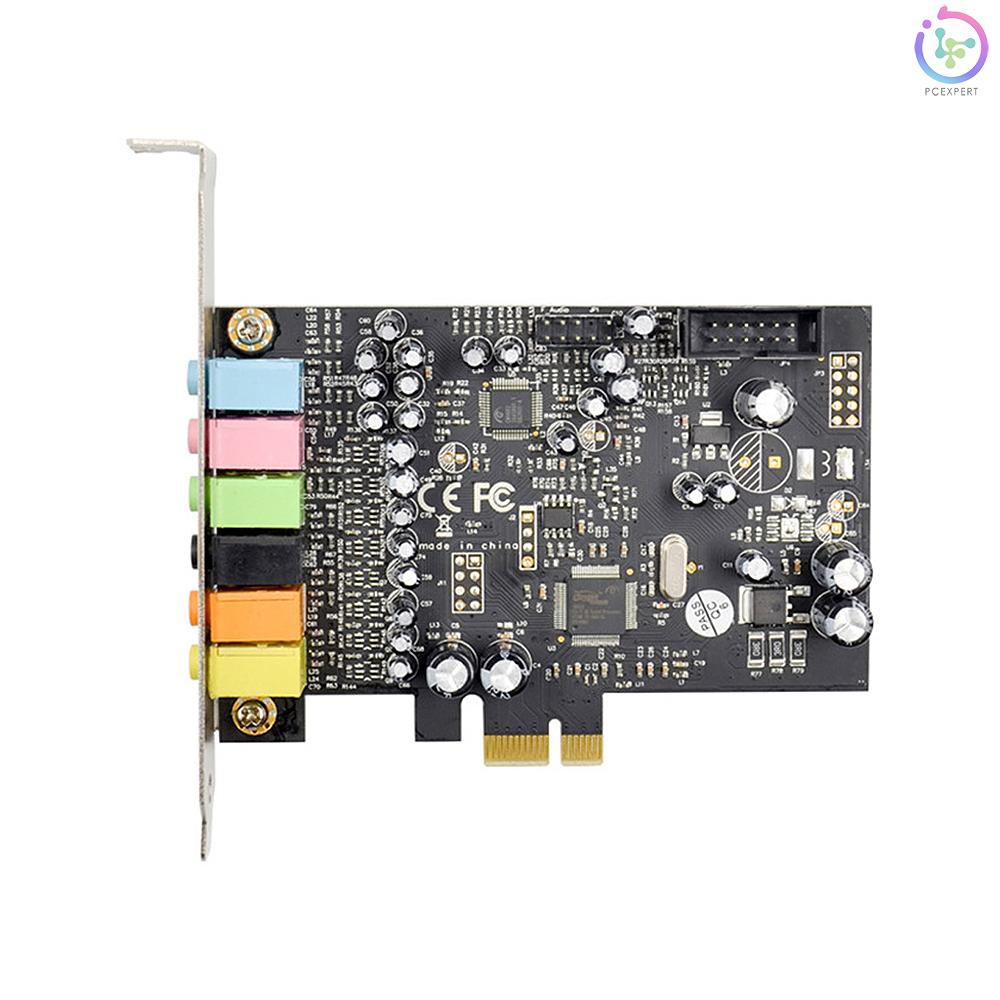

Hình ảnh sản phẩm
